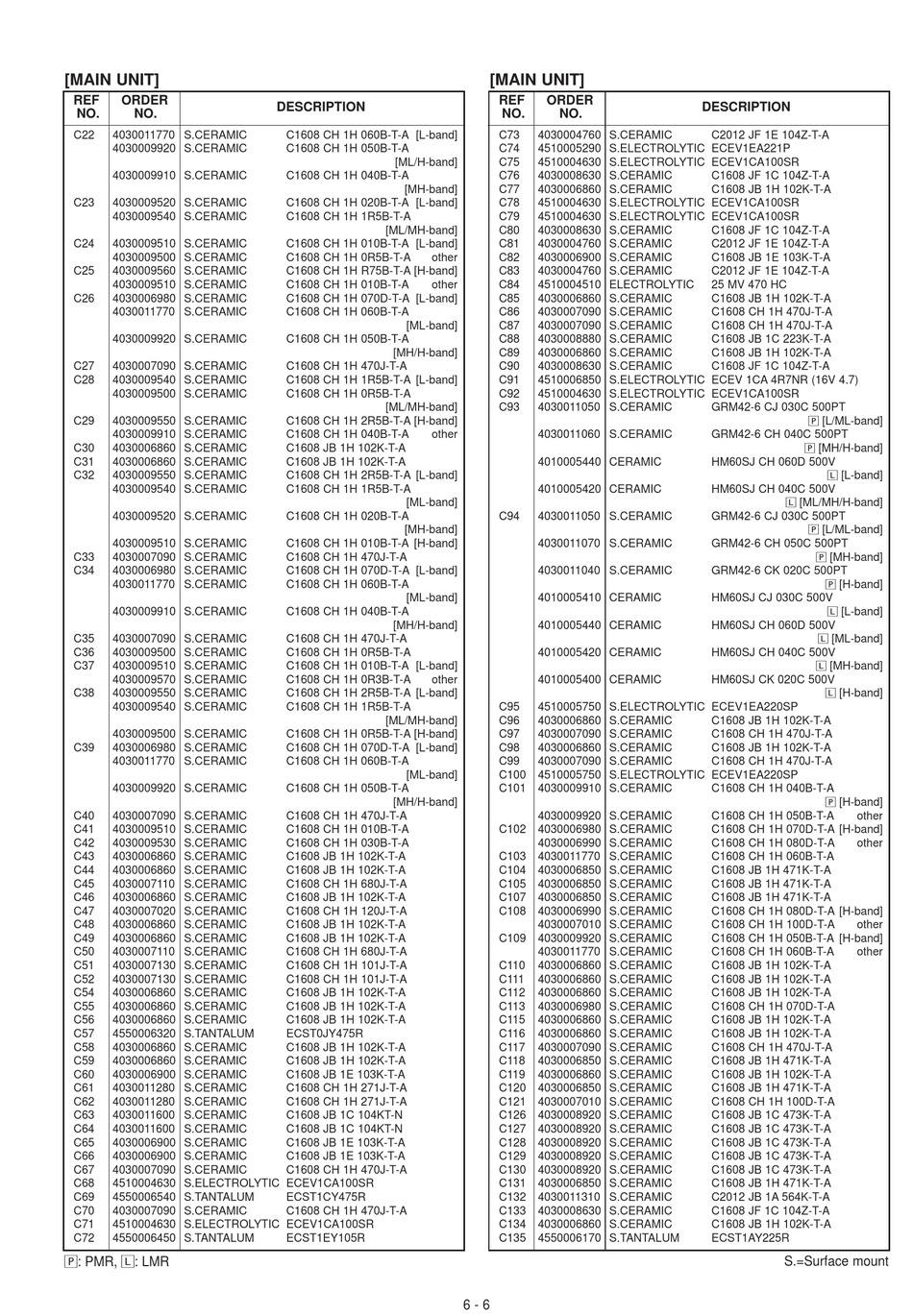

Icom IC-F410 Service Manual page 23

[MAIN UNIT]
REF ORDER
NO. NO.
C22 4030011770 S.CERAMIC
4030009920 S.CERAMIC
4030009910 S.CERAMIC
C23 4030009520 S.CERAMIC
4030009540 S.CERAMIC
C24 4030009510 S.CERAMIC
4030009500 S.CERAMIC
C25 4030009560 S.CERAMIC
4030009510 S.CERAMIC
C26 4030006980 S.CERAMIC
4030011770 S.CERAMIC
4030009920 S.CERAMIC
C27 4030007090 S.CERAMIC
C28 4030009540 S.CERAMIC
4030009500 S.CERAMIC
C29 4030009550 S.CERAMIC
4030009910 S.CERAMIC
C30 4030006860 S.CERAMIC
C31 4030006860 S.CERAMIC
C32 4030009550 S.CERAMIC
4030009540 S.CERAMIC
4030009520 S.CERAMIC
4030009510 S.CERAMIC
C33 4030007090 S.CERAMIC
C34 4030006980 S.CERAMIC
4030011770 S.CERAMIC
4030009910 S.CERAMIC
C35 4030007090 S.CERAMIC
C36 4030009500 S.CERAMIC
C37 4030009510 S.CERAMIC
4030009570 S.CERAMIC
C38 4030009550 S.CERAMIC
4030009540 S.CERAMIC
4030009500 S.CERAMIC
C39 4030006980 S.CERAMIC
4030011770 S.CERAMIC
4030009920 S.CERAMIC
C40 4030007090 S.CERAMIC
C41 4030009510 S.CERAMIC
C42 4030009530 S.CERAMIC
C43 4030006860 S.CERAMIC
C44 4030006860 S.CERAMIC
C45 4030007110 S.CERAMIC
C46 4030006860 S.CERAMIC
C47 4030007020 S.CERAMIC
C48 4030006860 S.CERAMIC
C49 4030006860 S.CERAMIC
C50 4030007110 S.CERAMIC
C51 4030007130 S.CERAMIC
C52 4030007130 S.CERAMIC
C54 4030006860 S.CERAMIC
C55 4030006860 S.CERAMIC
C56 4030006860 S.CERAMIC
C57 4550006320 S.TANTALUM
C58 4030006860 S.CERAMIC
C59 4030006860 S.CERAMIC
C60 4030006900 S.CERAMIC
C61 4030011280 S.CERAMIC
C62 4030011280 S.CERAMIC
C63 4030011600 S.CERAMIC
C64 4030011600 S.CERAMIC
C65 4030006900 S.CERAMIC
C66 4030006900 S.CERAMIC
C67 4030007090 S.CERAMIC
C68 4510004630 S.ELECTROLYTIC ECEV1CA100SR
C69 4550006540 S.TANTALUM
C70 4030007090 S.CERAMIC
C71 4510004630 S.ELECTROLYTIC ECEV1CA100SR
C72 4550006450 S.TANTALUM
∏: PMR, Ò: LMR
DESCRIPTION
C1608 CH 1H 060B-T-A [L-band]
C1608 CH 1H 050B-T-A
[ML/H-band]
C1608 CH 1H 040B-T-A
[MH-band]
C1608 CH 1H 020B-T-A [L-band]
C1608 CH 1H 1R5B-T-A
[ML/MH-band]
C1608 CH 1H 010B-T-A [L-band]
C1608 CH 1H 0R5B-T-A other
C1608 CH 1H R75B-T-A [H-band]
C1608 CH 1H 010B-T-A other
C1608 CH 1H 070D-T-A [L-band]
C1608 CH 1H 060B-T-A
[ML-band]
C1608 CH 1H 050B-T-A
[MH/H-band]
C1608 CH 1H 470J-T-A
C1608 CH 1H 1R5B-T-A [L-band]
C1608 CH 1H 0R5B-T-A
[ML/MH-band]
C1608 CH 1H 2R5B-T-A [H-band]
C1608 CH 1H 040B-T-A other
C1608 JB 1H 102K-T-A
C1608 JB 1H 102K-T-A
C1608 CH 1H 2R5B-T-A [L-band]
C1608 CH 1H 1R5B-T-A
[ML-band]
C1608 CH 1H 020B-T-A
[MH-band]
C1608 CH 1H 010B-T-A [H-band]
C1608 CH 1H 470J-T-A
C1608 CH 1H 070D-T-A [L-band]
C1608 CH 1H 060B-T-A
[ML-band]
C1608 CH 1H 040B-T-A
[MH/H-band]
C1608 CH 1H 470J-T-A
C1608 CH 1H 0R5B-T-A
C1608 CH 1H 010B-T-A [L-band]
C1608 CH 1H 0R3B-T-A other
C1608 CH 1H 2R5B-T-A [L-band]
C1608 CH 1H 1R5B-T-A
[ML/MH-band]
C1608 CH 1H 0R5B-T-A [H-band]
C1608 CH 1H 070D-T-A [L-band]
C1608 CH 1H 060B-T-A
[ML-band]
C1608 CH 1H 050B-T-A
[MH/H-band]
C1608 CH 1H 470J-T-A
C1608 CH 1H 010B-T-A
C1608 CH 1H 030B-T-A
C1608 JB 1H 102K-T-A
C1608 JB 1H 102K-T-A
C1608 CH 1H 680J-T-A
C1608 JB 1H 102K-T-A
C1608 CH 1H 120J-T-A
C1608 JB 1H 102K-T-A
C1608 JB 1H 102K-T-A
C1608 CH 1H 680J-T-A
C1608 CH 1H 101J-T-A
C1608 CH 1H 101J-T-A
C1608 JB 1H 102K-T-A
C1608 JB 1H 102K-T-A
C1608 JB 1H 102K-T-A
ECST0JY475R
C1608 JB 1H 102K-T-A
C1608 JB 1H 102K-T-A
C1608 JB 1E 103K-T-A
C1608 CH 1H 271J-T-A
C1608 CH 1H 271J-T-A
C1608 JB 1C 104KT-N
C1608 JB 1C 104KT-N
C1608 JB 1E 103K-T-A
C1608 JB 1E 103K-T-A
C1608 CH 1H 470J-T-A
ECST1CY475R
C1608 CH 1H 470J-T-A
ECST1EY105R
[MAIN UNIT]
REF ORDER
NO. NO.
C73 4030004760 S.CERAMIC
C74 4510005290 S.ELECTROLYTIC ECEV1EA221P
C75 4510004630 S.ELECTROLYTIC ECEV1CA100SR
C76 4030008630 S.CERAMIC
C77 4030006860 S.CERAMIC
C78 4510004630 S.ELECTROLYTIC ECEV1CA100SR
C79 4510004630 S.ELECTROLYTIC ECEV1CA100SR
C80 4030008630 S.CERAMIC
C81 4030004760 S.CERAMIC
C82 4030006900 S.CERAMIC
C83 4030004760 S.CERAMIC
C84 4510004510 ELECTROLYTIC
C85 4030006860 S.CERAMIC
C86 4030007090 S.CERAMIC
C87 4030007090 S.CERAMIC
C88 4030008880 S.CERAMIC
C89 4030006860 S.CERAMIC
C90 4030008630 S.CERAMIC
C91 4510006850 S.ELECTROLYTIC ECEV 1CA 4R7NR (16V 4.7)
C92 4510004630 S.ELECTROLYTIC ECEV1CA100SR
C93 4030011050 S.CERAMIC
4030011060 S.CERAMIC
4010005440 CERAMIC
4010005420 CERAMIC
C94 4030011050 S.CERAMIC
4030011070 S.CERAMIC
4030011040 S.CERAMIC
4010005410 CERAMIC
4010005440 CERAMIC
4010005420 CERAMIC
4010005400 CERAMIC
C95 4510005750 S.ELECTROLYTIC ECEV1EA220SP
C96 4030006860 S.CERAMIC
C97 4030007090 S.CERAMIC
C98 4030006860 S.CERAMIC
C99 4030007090 S.CERAMIC
C100 4510005750 S.ELECTROLYTIC ECEV1EA220SP
C101 4030009910 S.CERAMIC
4030009920 S.CERAMIC
C102 4030006980 S.CERAMIC
4030006990 S.CERAMIC
C103 4030011770 S.CERAMIC
C104 4030006850 S.CERAMIC
C105 4030006850 S.CERAMIC
C107 4030006850 S.CERAMIC
C108 4030006990 S.CERAMIC
4030007010 S.CERAMIC
C109 4030009920 S.CERAMIC
4030011770 S.CERAMIC
C110 4030006860 S.CERAMIC
C111 4030006860 S.CERAMIC
C112 4030006860 S.CERAMIC
C113 4030006980 S.CERAMIC
C115 4030006860 S.CERAMIC
C116 4030006860 S.CERAMIC
C117 4030007090 S.CERAMIC
C118 4030006850 S.CERAMIC
C119 4030006860 S.CERAMIC
C120 4030006850 S.CERAMIC
C121 4030007010 S.CERAMIC
C126 4030008920 S.CERAMIC
C127 4030008920 S.CERAMIC
C128 4030008920 S.CERAMIC
C129 4030008920 S.CERAMIC
C130 4030008920 S.CERAMIC
C131 4030006850 S.CERAMIC
C132 4030011310 S.CERAMIC
C133 4030008630 S.CERAMIC
C134 4030006860 S.CERAMIC
C135 4550006170 S.TANTALUM
6 - 6
DESCRIPTION
C2012 JF 1E 104Z-T-A
C1608 JF 1C 104Z-T-A
C1608 JB 1H 102K-T-A
C1608 JF 1C 104Z-T-A
C2012 JF 1E 104Z-T-A
C1608 JB 1E 103K-T-A
C2012 JF 1E 104Z-T-A
25 MV 470 HC
C1608 JB 1H 102K-T-A
C1608 CH 1H 470J-T-A
C1608 CH 1H 470J-T-A
C1608 JB 1C 223K-T-A
C1608 JB 1H 102K-T-A
C1608 JF 1C 104Z-T-A
GRM42-6 CJ 030C 500PT
∏ [L/ML-band]
GRM42-6 CH 040C 500PT
∏
[MH/H-band]
HM60SJ CH 060D 500V
Ò [L-band]
HM60SJ CH 040C 500V
Ò
[ML/MH/H-band]
GRM42-6 CJ 030C 500PT
∏ [L/ML-band]
GRM42-6 CH 050C 500PT
∏
[MH-band]
GRM42-6 CK 020C 500PT
∏ [H-band]
HM60SJ CJ 030C 500V
Ò
[L-band]
HM60SJ CH 060D 500V
Ò
[ML-band]
HM60SJ CH 040C 500V
Ò
[MH-band]
HM60SJ CK 020C 500V
Ò
[H-band]
C1608 JB 1H 102K-T-A
C1608 CH 1H 470J-T-A
C1608 JB 1H 102K-T-A
C1608 CH 1H 470J-T-A
C1608 CH 1H 040B-T-A
∏
[H-band]
C1608 CH 1H 050B-T-A other
C1608 CH 1H 070D-T-A [H-band]
C1608 CH 1H 080D-T-A other
C1608 CH 1H 060B-T-A
C1608 JB 1H 471K-T-A
C1608 JB 1H 471K-T-A
C1608 JB 1H 471K-T-A
C1608 CH 1H 080D-T-A [H-band]
C1608 CH 1H 100D-T-A other
C1608 CH 1H 050B-T-A [H-band]
C1608 CH 1H 060B-T-A other
C1608 JB 1H 102K-T-A
C1608 JB 1H 102K-T-A
C1608 JB 1H 102K-T-A
C1608 CH 1H 070D-T-A
C1608 JB 1H 102K-T-A
C1608 JB 1H 102K-T-A
C1608 CH 1H 470J-T-A
C1608 JB 1H 471K-T-A
C1608 JB 1H 102K-T-A
C1608 JB 1H 471K-T-A
C1608 CH 1H 100D-T-A
C1608 JB 1C 473K-T-A
C1608 JB 1C 473K-T-A
C1608 JB 1C 473K-T-A
C1608 JB 1C 473K-T-A
C1608 JB 1C 473K-T-A
C1608 JB 1H 471K-T-A
C2012 JB 1A 564K-T-A
C1608 JF 1C 104Z-T-A
C1608 JB 1H 102K-T-A
ECST1AY225R
S.=Surface mount
