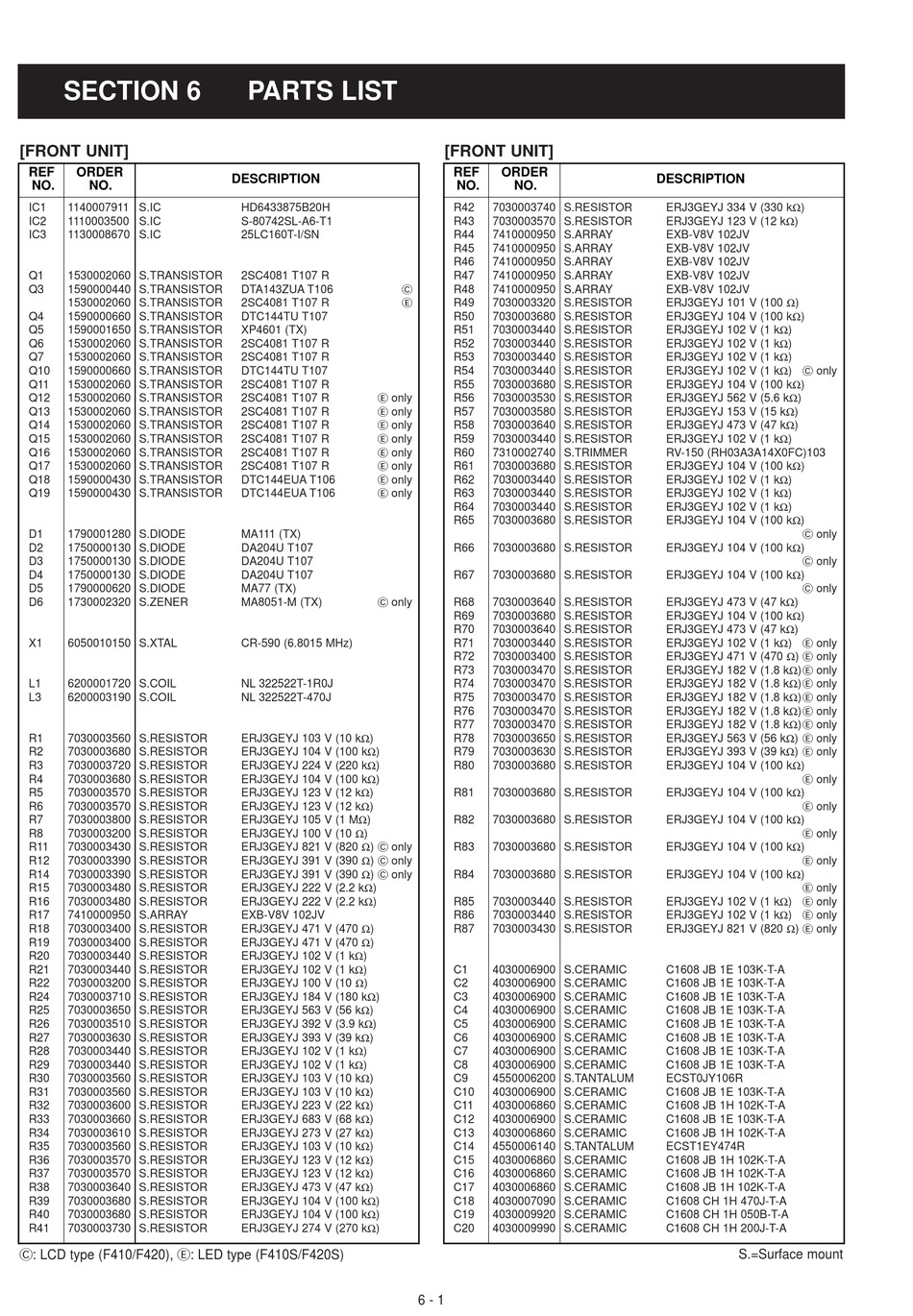

SECTION 6
[FRONT UNIT]
REF ORDER
NO. NO.
IC1 1140007911 S.IC
IC2 1110003500 S.IC
IC3 1130008670 S.IC
Q1 1530002060 S.TRANSISTOR
Q3 1590000440 S.TRANSISTOR
1530002060 S.TRANSISTOR
Q4 1590000660 S.TRANSISTOR
Q5 1590001650 S.TRANSISTOR
Q6 1530002060 S.TRANSISTOR
Q7 1530002060 S.TRANSISTOR
Q10 1590000660 S.TRANSISTOR
Q11 1530002060 S.TRANSISTOR
Q12 1530002060 S.TRANSISTOR
Q13 1530002060 S.TRANSISTOR
Q14 1530002060 S.TRANSISTOR
Q15 1530002060 S.TRANSISTOR
Q16 1530002060 S.TRANSISTOR
Q17 1530002060 S.TRANSISTOR
Q18 1590000430 S.TRANSISTOR
Q19 1590000430 S.TRANSISTOR
D1 1790001280 S.DIODE
D2 1750000130 S.DIODE
D3 1750000130 S.DIODE
D4 1750000130 S.DIODE
D5 1790000620 S.DIODE
D6 1730002320 S.ZENER
X1 6050010150 S.XTAL
L1 6200001720 S.COIL
L3 6200003190 S.COIL
R1 7030003560 S.RESISTOR
R2 7030003680 S.RESISTOR
R3 7030003720 S.RESISTOR
R4 7030003680 S.RESISTOR
R5 7030003570 S.RESISTOR
R6 7030003570 S.RESISTOR
R7 7030003800 S.RESISTOR
R8 7030003200 S.RESISTOR
R11 7030003430 S.RESISTOR
R12 7030003390 S.RESISTOR
R14 7030003390 S.RESISTOR
R15 7030003480 S.RESISTOR
R16 7030003480 S.RESISTOR
R17 7410000950 S.ARRAY
R18 7030003400 S.RESISTOR
R19 7030003400 S.RESISTOR
R20 7030003440 S.RESISTOR
R21 7030003440 S.RESISTOR
R22 7030003200 S.RESISTOR
R24 7030003710 S.RESISTOR
R25 7030003650 S.RESISTOR
R26 7030003510 S.RESISTOR
R27 7030003630 S.RESISTOR
R28 7030003440 S.RESISTOR
R29 7030003440 S.RESISTOR
R30 7030003560 S.RESISTOR
R31 7030003560 S.RESISTOR
R32 7030003600 S.RESISTOR
R33 7030003660 S.RESISTOR
R34 7030003610 S.RESISTOR
R35 7030003560 S.RESISTOR
R36 7030003570 S.RESISTOR
R37 7030003570 S.RESISTOR
R38 7030003640 S.RESISTOR
R39 7030003680 S.RESISTOR
R40 7030003680 S.RESISTOR
R41 7030003730 S.RESISTOR
C: LCD type (F410/F420), E: LED type (F410S/F420S)

PARTS LIST

DESCRIPTION
HD6433875B20H
S-80742SL-A6-T1
25LC160T-I/SN
2SC4081 T107 R
C
DTA143ZUA T106
E
2SC4081 T107 R
DTC144TU T107
XP4601 (TX)
2SC4081 T107 R
2SC4081 T107 R
DTC144TU T107
2SC4081 T107 R
E
2SC4081 T107 R only
E
2SC4081 T107 R only
2SC4081 T107 R E only
E
2SC4081 T107 R only
E
2SC4081 T107 R only
2SC4081 T107 R E only
DTC144EUA T106 E only
E
DTC144EUA T106 only
MA111 (TX)
DA204U T107
DA204U T107
DA204U T107
MA77 (TX)
C
MA8051-M (TX) only
CR-590 (6.8015 MHz)
NL 322522T-1R0J
NL 322522T-470J
ERJ3GEYJ 103 V (10 kΩ)
ERJ3GEYJ 104 V (100 kΩ)
ERJ3GEYJ 224 V (220 kΩ)
ERJ3GEYJ 104 V (100 kΩ)
ERJ3GEYJ 123 V (12 kΩ)
ERJ3GEYJ 123 V (12 kΩ)
ERJ3GEYJ 105 V (1 MΩ)
ERJ3GEYJ 100 V (10 Ω)
ERJ3GEYJ 821 V (820 Ω)
C
only
ERJ3GEYJ 391 V (390 Ω)
C
only
ERJ3GEYJ 391 V (390 Ω)
C only
ERJ3GEYJ 222 V (2.2 kΩ)
ERJ3GEYJ 222 V (2.2 kΩ)
EXB-V8V 102JV
ERJ3GEYJ 471 V (470 Ω)
ERJ3GEYJ 471 V (470 Ω)
ERJ3GEYJ 102 V (1 kΩ)
ERJ3GEYJ 102 V (1 kΩ)
ERJ3GEYJ 100 V (10 Ω)
ERJ3GEYJ 184 V (180 kΩ)
ERJ3GEYJ 563 V (56 kΩ)
ERJ3GEYJ 392 V (3.9 kΩ)
ERJ3GEYJ 393 V (39 kΩ)
ERJ3GEYJ 102 V (1 kΩ)
ERJ3GEYJ 102 V (1 kΩ)
ERJ3GEYJ 103 V (10 kΩ)
ERJ3GEYJ 103 V (10 kΩ)
ERJ3GEYJ 223 V (22 kΩ)
ERJ3GEYJ 683 V (68 kΩ)
ERJ3GEYJ 273 V (27 kΩ)
ERJ3GEYJ 103 V (10 kΩ)
ERJ3GEYJ 123 V (12 kΩ)
ERJ3GEYJ 123 V (12 kΩ)
ERJ3GEYJ 473 V (47 kΩ)
ERJ3GEYJ 104 V (100 kΩ)
ERJ3GEYJ 104 V (100 kΩ)
ERJ3GEYJ 274 V (270 kΩ)
[FRONT UNIT]
REF ORDER
NO. NO.
R42 7030003740 S.RESISTOR
R43 7030003570 S.RESISTOR
R44 7410000950 S.ARRAY
R45 7410000950 S.ARRAY
R46 7410000950 S.ARRAY
R47 7410000950 S.ARRAY
R48 7410000950 S.ARRAY
R49 7030003320 S.RESISTOR
R50 7030003680 S.RESISTOR
R51 7030003440 S.RESISTOR
R52 7030003440 S.RESISTOR
R53 7030003440 S.RESISTOR
R54 7030003440 S.RESISTOR
R55 7030003680 S.RESISTOR
R56 7030003530 S.RESISTOR
R57 7030003580 S.RESISTOR
R58 7030003640 S.RESISTOR
R59 7030003440 S.RESISTOR
R60 7310002740 S.TRIMMER
R61 7030003680 S.RESISTOR
R62 7030003440 S.RESISTOR
R63 7030003440 S.RESISTOR
R64 7030003440 S.RESISTOR
R65 7030003680 S.RESISTOR
R66 7030003680 S.RESISTOR
R67 7030003680 S.RESISTOR
R68 7030003640 S.RESISTOR
R69 7030003680 S.RESISTOR
R70 7030003640 S.RESISTOR
R71 7030003440 S.RESISTOR
R72 7030003400 S.RESISTOR
R73 7030003470 S.RESISTOR
R74 7030003470 S.RESISTOR
R75 7030003470 S.RESISTOR
R76 7030003470 S.RESISTOR
R77 7030003470 S.RESISTOR
R78 7030003650 S.RESISTOR
R79 7030003630 S.RESISTOR
R80 7030003680 S.RESISTOR
R81 7030003680 S.RESISTOR
R82 7030003680 S.RESISTOR
R83 7030003680 S.RESISTOR
R84 7030003680 S.RESISTOR
R85 7030003440 S.RESISTOR
R86 7030003440 S.RESISTOR
R87 7030003430 S.RESISTOR
C1 4030006900 S.CERAMIC
C2 4030006900 S.CERAMIC
C3 4030006900 S.CERAMIC
C4 4030006900 S.CERAMIC
C5 4030006900 S.CERAMIC
C6 4030006900 S.CERAMIC
C7 4030006900 S.CERAMIC
C8 4030006900 S.CERAMIC
C9 4550006200 S.TANTALUM
C10 4030006900 S.CERAMIC
C11 4030006860 S.CERAMIC
C12 4030006900 S.CERAMIC
C13 4030006860 S.CERAMIC
C14 4550006140 S.TANTALUM
C15 4030006860 S.CERAMIC
C16 4030006860 S.CERAMIC
C17 4030006860 S.CERAMIC
C18 4030007090 S.CERAMIC
C19 4030009920 S.CERAMIC
C20 4030009990 S.CERAMIC
6 - 1
DESCRIPTION
ERJ3GEYJ 334 V (330 kΩ)
ERJ3GEYJ 123 V (12 kΩ)
EXB-V8V 102JV
EXB-V8V 102JV
EXB-V8V 102JV
EXB-V8V 102JV
EXB-V8V 102JV
ERJ3GEYJ 101 V (100 Ω)
ERJ3GEYJ 104 V (100 kΩ)
ERJ3GEYJ 102 V (1 kΩ)
ERJ3GEYJ 102 V (1 kΩ)
ERJ3GEYJ 102 V (1 kΩ)
ERJ3GEYJ 102 V (1 kΩ) C only
ERJ3GEYJ 104 V (100 kΩ)
ERJ3GEYJ 562 V (5.6 kΩ)
ERJ3GEYJ 153 V (15 kΩ)
ERJ3GEYJ 473 V (47 kΩ)
ERJ3GEYJ 102 V (1 kΩ)
RV-150 (RH03A3A14X0FC)103
ERJ3GEYJ 104 V (100 kΩ)
ERJ3GEYJ 102 V (1 kΩ)
ERJ3GEYJ 102 V (1 kΩ)
ERJ3GEYJ 102 V (1 kΩ)
ERJ3GEYJ 104 V (100 kΩ)
C only
ERJ3GEYJ 104 V (100 kΩ)
C
only
ERJ3GEYJ 104 V (100 kΩ)
C
only
ERJ3GEYJ 473 V (47 kΩ)
ERJ3GEYJ 104 V (100 kΩ)
ERJ3GEYJ 473 V (47 kΩ)
E
ERJ3GEYJ 102 V (1 kΩ) only
ERJ3GEYJ 471 V (470 Ω)
E
only
ERJ3GEYJ 182 V (1.8 kΩ) E only
ERJ3GEYJ 182 V (1.8 kΩ) E only
E
ERJ3GEYJ 182 V (1.8 kΩ) only
E
ERJ3GEYJ 182 V (1.8 kΩ) only
ERJ3GEYJ 182 V (1.8 kΩ) E only
E
ERJ3GEYJ 563 V (56 kΩ) only
E
ERJ3GEYJ 393 V (39 kΩ) only
ERJ3GEYJ 104 V (100 kΩ)
E only
ERJ3GEYJ 104 V (100 kΩ)
E
only
ERJ3GEYJ 104 V (100 kΩ)
E only
ERJ3GEYJ 104 V (100 kΩ)
E
only
ERJ3GEYJ 104 V (100 kΩ)
E only
E
ERJ3GEYJ 102 V (1 kΩ) only
E
ERJ3GEYJ 102 V (1 kΩ) only
ERJ3GEYJ 821 V (820 Ω)
E only
C1608 JB 1E 103K-T-A
C1608 JB 1E 103K-T-A
C1608 JB 1E 103K-T-A
C1608 JB 1E 103K-T-A
C1608 JB 1E 103K-T-A
C1608 JB 1E 103K-T-A
C1608 JB 1E 103K-T-A
C1608 JB 1E 103K-T-A
ECST0JY106R
C1608 JB 1E 103K-T-A
C1608 JB 1H 102K-T-A
C1608 JB 1E 103K-T-A
C1608 JB 1H 102K-T-A
ECST1EY474R
C1608 JB 1H 102K-T-A
C1608 JB 1H 102K-T-A
C1608 JB 1H 102K-T-A
C1608 CH 1H 470J-T-A
C1608 CH 1H 050B-T-A
C1608 CH 1H 200J-T-A
S.=Surface mount
