Hookup Diagram; Output Configuration - Altronix FireSwitch108 Installation Manual

Fig. 5
Ethernet
Factory Installed
Board Interface
Cable to
Power Supply
Power
Limited
Digital
Communicator
or Local
Annunciator
Dry output Contact
(Form "C" contacts)
Addressable
control module
trigger output
To begin programming depress and hold down the joystick (approximately 2 secs.).
Note: If FireSwitch remains dormant for more than 90 secs. it will return to stand-by status screen.
Step 1. Setup outputs 1-8:
a. Select from: Class A, Class B or Aux. Outputs with or without battery backup (see chart below).

Output Configuration:

LCD Legend Function/Description
A Class A output (Combines two (2) outputs, ex. 1-2, 3-4, 5-6, 7-8).
B Class B output.
Ax Aux. output with battery backup.
Bx Aux. output without battery backup.
Depress the joystick one time from Stand-by screen.
Use [UP/DOWN] to select Function, Use [Left/Right] to select channel.
- 8 -
ETHERNET
INP2
INP1
INP2
INP1
INP1 RET1 INP2
+
4-wire Smoke
Detector
Fire
Alarm
Control
Panel
(FACP)

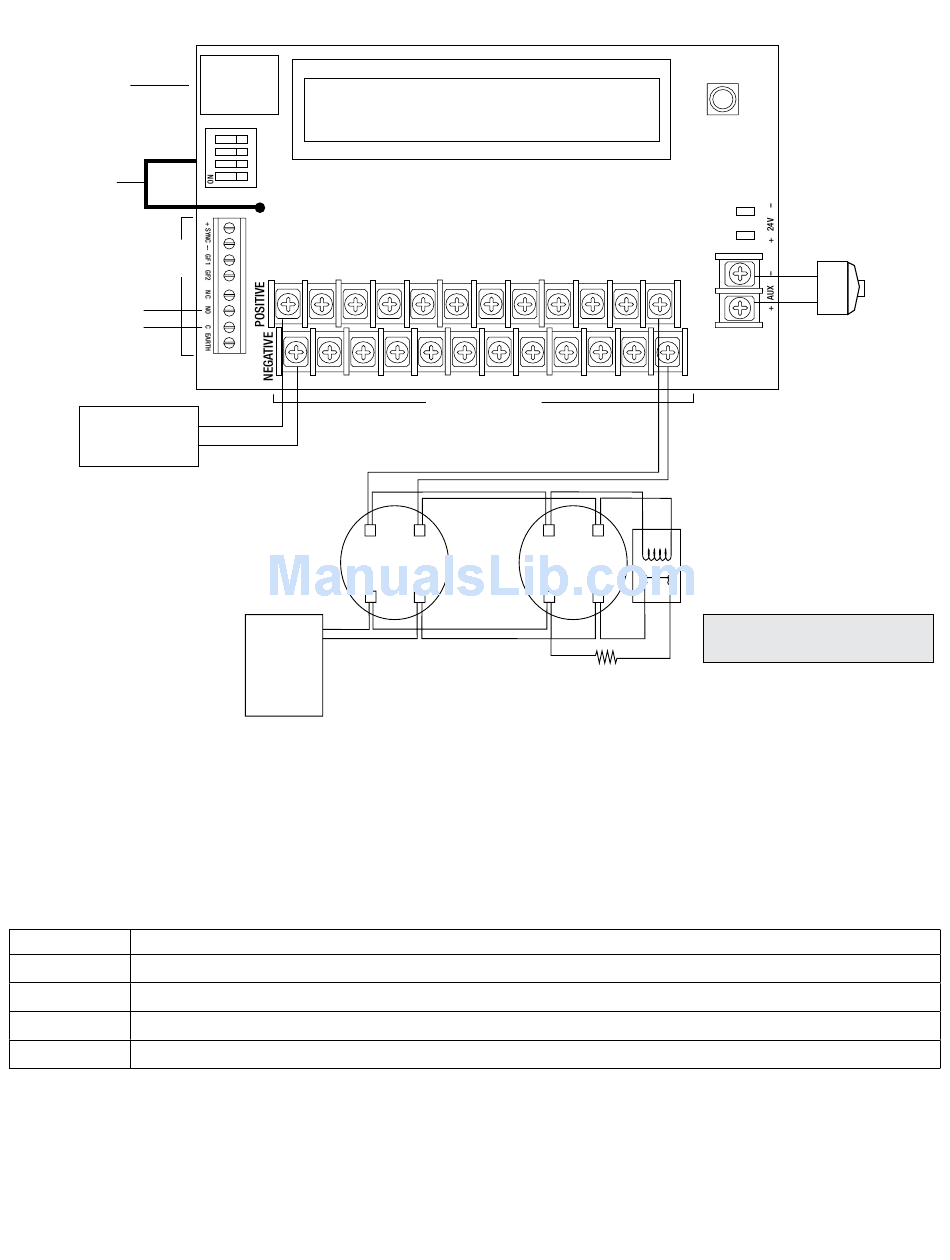

Hookup Diagram:

RET2 OUT1 OUT2 OUT3 OUT4 OUT5
Power Limited
-- +
4-wire Smoke
Detector
EOL Resistor
Programming:
UP
LEFT RIGHT
DOWN
PRESS DOWN
FOR ENTER
OUT6 OUT7 OUT8
Special Application
Output selected
as Aux. Output
--
EOL Power
Supervision Relay
(Not Supplied)
Refer to Appendix B for
Compatible Devices pgs. 18-19
from FACP
Magnetic
Door
Holder
24VDC
Regulated
Power Limited
Output
FireSwitch108
