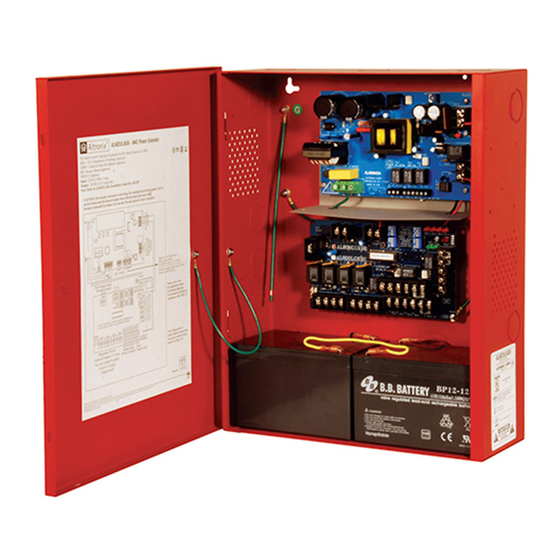

AL602ULADA
AL802ULADA
AL1002ULADA
NAC Power Extenders
Application Guide
(See Installation Guide for additional information)
Rev. 031703

Advertisement

loading
Need help?

Need help?

Do you have a question about the AL602ULADA and is the answer not in the manual?

Questions and answers

Related Manuals for Altronix AL602ULADA

Summary of Contents for Altronix AL602ULADA

  • Page 1 AL602ULADA AL802ULADA AL1002ULADA NAC Power Extenders Application Guide (See Installation Guide for additional information) Rev. 031703...
  • Page 2 1. General Information (Use this in conjunction with respective Installation Guide): Altronix AL602ULADA, AL802ULADA and AL1002ULADA are very versatile devices. They can be used with or without specific synchronization modules provided by some manufacturers. Multiple units can be synchronized by using either the built-in sync mode or a external synchronization module.
  • Page 3 4. Non-synchronizable NAC Appliances: When using NAC appliances not designed to support synchronization feature, it is recommended to use separate out- put circuits for audible notification appliances (horns) and visual notification appliances (strobes). Set dip switches for the visual notification appliances to follow Input 1 [IN1] and for audible notification appliances to follow Input 2 [IN2]. This will allow, when using two (2) outputs from the FACP, to support silencing of audible notification appliances.
  • Page 4 Set the master unit to generate the desired sync protocol, while the remaining NAC Power Extenders are set for Input/Output Follower Mode. Fig. 6A For continuous loop circuit use 2.2K EOL, (Altronix Model # AL-EOL22). NAC Power Extender: NAC Power Extender: Dip Switches set for desired Sync Protocol (ex.
  • Page 5 7. Using a Single FACP Output: When only one FACP output is available, you may connect both Input1 and Input2 to it. Wire [RET1+ and RET1- to INP2+ and INP2-]. Both visual and audible notification appliances will be activated simultaneously (Fig. 7). Fig.

  • Page 6: Sync Mode

    Honeywell. over a two-wire circuit while leaving strobes active. Note: The AL602ULADA, AL802ULADA, and AL1002ULADA will only synchronize horns, horn strobes and strobes that contain synchronization capability. Contact signal manufacturer for more detailed info. The same synchronization mode must be selected for all outputs.
  • Page 7 Notes: - 7 -...
  • Page 8 Notes: 140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056 web site: www.altronix.com, e-mail: info@altronix.com, Lifetime Warranty, Made in U.S.A. IIAL602,802,1002ULADA G29E - 8 -...
