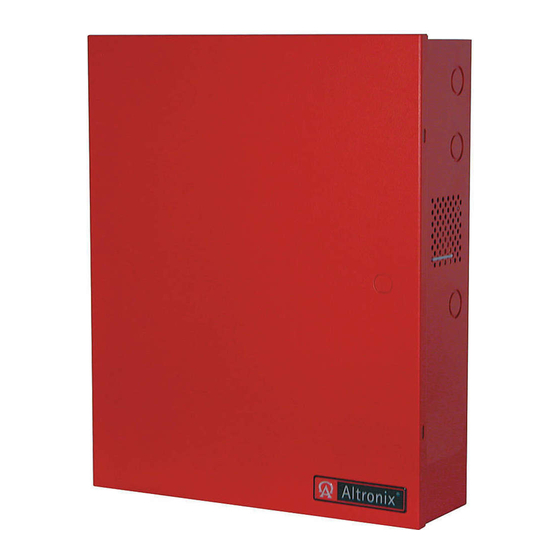

Altronix AL602ULADAJ Installation Manual
Nac power extender
Hide thumbs
Also See for AL602ULADAJ:
- Installation manual (16 pages) ,
- Application manual (9 pages) ,
- Application manual (8 pages)
Related Manuals for Altronix AL602ULADAJ
Summary of Contents for Altronix AL602ULADAJ
-
Page 1: Installation Guide
AL602ULADAJ NAC Power Extender Installation Guide (see 02 Application Guide for additional information) Altronix Corp. 140 58th St. Brooklyn, NY Rev. 042010... -
Page 2: Specifications
AL602ULADAJ - NAC Power Extender Overview: Altronix AL602ULADAJ is an extremely cost effective 6.5A remote power supply/battery charger. It may be connected to any 24 volt Fire Alarm Control Panel (FACP). Primary applications include Notification Appliance Circuit (NAC such as strobes and horns) expansion support to meet ADA requirements. -
Page 3: Power Supply Specifications
Battery: batteries connected in series. Stand-by/Alarm Current 90mA/175mA Consumption: EOL Resistor (end of line): 2.2K (2200 ohm), Altronix Model # AL-EOL22 (included). Ground fault maximum 1000 ohm. test impedance: Stand-by Specifications: Stand-by Batteries Stand-by Time Total (A/Minutes) Alarm Output Current Aux. Output... - Page 4 Cooper Wheelock. *Note: The AL602ULADAJ will only synchronize horns, horn/strobes and strobes that contain synchronization capability. Contact signal manufacturer for more detailed info (see Appendix A, pg. 10). The same synchronization mode must be selected for all outputs.
- Page 5 For loads connected to “AUX” please, refer to battery “Stand-by Specifications” pg. 3 for ratings. When loads are connected to “AUX” output during alarm condition, the remaining outputs may, not exceed 6.5A total alarm current (example: AUX = 1A, outputs up to 5.5A). AL602ULADAJ - 5 -...
-
Page 6: Led Diagnostics
The green input LEDs will be off (normal condition). To reset the memory depress the reset button (Fig. 2c, pg. 7). The LED(s) will extinguish. Note: If indicating circuits have been restored, memory reset is not required for normal operation of the unit. - 6 - AL602ULADAJ... -
Page 7: Hookup Diagram
Fuses: Check input fuse on the power supply board, replace if necessary. Input fuse rating is 5A @ 250V. Note: Maximum charging current is 650mA. Note: Expected battery life is 5 years, however it is recommended changing batteries in 4 years or less if needed. AL602ULADAJ - 7 -... -
Page 8: Battery Calculation Worksheet
Current Current For each device use this formula: This column x This column = Equals Current per number of devices. Stand-by: 90mA 90mA AL602ULADAJ (Current draw from battery) Alarm: 175mA 175mA AL602 Current 90mA 175mA Auxiliary Devices Refer to device manual for current ratings. -
Page 9: System Sensor
Appendix A - UL/cUL Listed Compatible Devices for Synchronization A-1 Strobes, Horns, and Horn/Strobes Table A-1 below lists Strobes, Horns, and Horn/Strobes compatible with AL602ULADAJ NAC outputs. Gentex: GCS24CR - UL GCCB24PCR / W - UL GEC24-15/75WR - UL GCS24CW - UL... - Page 10 Appendix A - UL/cUL Listed Compatible Devices for Synchronization (cont’d) A-1 Strobes, Horns, and Horn/Strobes Table A-1 below lists Strobes, Horns, and Horn/Strobes compatible with AL602ULADAJ NAC outputs. Potter/Amseco: CM24CR - UL CSL-1224W-BW - UL/cUL MH-12/24W - UL/cUL SSC8-177R - UL...
-
Page 11: Appendix B - Ul Listed Compatible Devices
STWC-NR - UL Appendix B - UL Listed Compatible Devices B.1 Four (4) Wire Smoke Detectors Table B-1 below lists four (4) wire smoke detectors compatible with AL602ULADAJ AUX output and Outputs 1-8 when programmed as AUX. System Sensor Max Stand-by... - Page 12 14.5” (368.3mm) Altronix is not responsible for any typographical errors. 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 web site: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty | Made in U.S.A. MEMBER IIAL602ULADAJ C28P...
