AL642ULADA
NAC Power Extender

Installation Guide

(see 42 Application Guide for additional information)
Rev. 042209

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AL642ULADA and is the answer not in the manual?

Questions and answers

Related Manuals for Altronix AL642ULADA

Summary of Contents for Altronix AL642ULADA

  • Page 1: Installation Guide

    AL642ULADA NAC Power Extender Installation Guide (see 42 Application Guide for additional information) Rev. 042209...

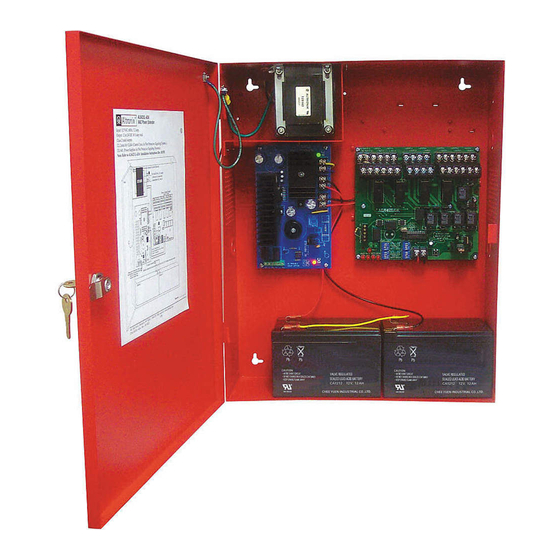

  • Page 2 AL642ULADA - NAC Power Extender Overview: The Altronix AL642ULADA is an extremely cost effective 6.5 amp remote power supply/battery charger. It may be con- nected to any 24 volt Fire Alarm Control Panel (FACP). Primary applications include Notification Appliance Circuit (NAC such as strobes and horns) expansion support to meet ADA requirements.

  • Page 3: Power Supply Specifications

    Use two (2) 12VDC / 7AH, two (2) 12VDC / 12AH or two (2) 12VDC / 40AH Battery: batteries connected in series. Stand-by/Alarm Current 90mA/175mA Consumption: EOL Resistor (end of line): 2.2K (2200 ohm), Altronix Model # AL-EOL22 (included). Ground fault maximum 1000 ohm. test impedance: Stand-by Specifications: Stand-by Batteries Stand-by Time Total Amp/Minutes Alarm Output Current Aux.
  • Page 4 (horns) to be silenced while visual notification appliances (strobes) continue to operate. The FACP must be capable of a visual annunciation to the silencing status of the output or zone(s) to which the AL642ULADA (NAC Power Extender) is connected. Sync Mode Selection Table:...
  • Page 5 Note: The AL642ULADA will only synchronize horns, horn/strobes and strobes that contain synchronization capability. Contact signal manufacturer for more detailed info (see Appendix A.4, pg. 12). The same synchronization mode must be selected for all outputs. Amount of Notification Appliances per NAC:...
  • Page 6 Trouble Condition Memory Normal Alarm Condition Trouble Condition Trouble Condition Memory Normal Alarm Condition Trouble Condition Trouble Condition Memory Input 1 Normal Alarm Condition Trouble Condition Input 2 Normal Alarm Condition Trouble Condition Fault Normal Alarm Condition - 6 - AL642ULADA...

  • Page 7: Hookup Diagram

    4-wire Smoke Detector Detector These circuits are used to monitor Fire AC and Bat Fail and will cause a Alarm simultaneous trouble condition Control to the FACP's IN1 and IN2 Panel (Non-Supervised) (FACP) EOL Resistor from FACP AL642ULADA - 7 -...

  • Page 8: Maintenance

    Fuses: Check input fuse on the power supply board, replace if necessary. Input fuse rating is 5 amp @ 250V. Note: Maximum charging current is 650mA. Note: Expected battery life is 5 years, however it is recommended changing batteries in 4 years or less if needed. - 8 - AL642ULADA...

  • Page 9: Battery Calculation Worksheet

    Current Current For each device use this formula: This column x This column = Equals Current per number of devices. Stand-by: 90mA 90mA AL642ULADA (Current draw from battery) 175mA 175mA Alarm: AL642 Current 90mA 175mA Auxiliary Devices Refer to device manual for current ratings.

  • Page 10: Appendix A - Ul Listed Compatible Devices

    Appendix A - UL Listed Compatible Devices A.1 Four (4) Wire Smoke Detectors Table A-1 below lists four (4) wire smoke detectors compatible with AL642ULADA AUX output. Max Standby Alarm Smoke Detector/Base Detector Type Current (mA) Current (mA) FenWal CPD-7021 (w/70-201000-005 Base) Ionization 0.10...
  • Page 11 System Sensor 6424 Projected Beam 28.4 System Sensor Beam 1224(S) Projected Beam 38.5 * Contact manufacturer for current draws A.2 Door Holders Table A-2 below lists door holders compatible with AL642ULADA AUX output. Manufacturer Model Type Current (mA) Edwards DH150A Floor Mount...
  • Page 12 A.4 Strobes Table A-4 below lists strobes compatible with AL642ULADA NAC output. Wheelock Devices: Sychronizing Horns AH-12 AH-12WP AH-24AH-24 HS-24 AH-24WP NH-12/24 MIZ-24S Sychronizing Horn Strobes AS-121575W HS4-24MCWH AS-24100C AS-24MCW HS4-24185W NS-121575W AS-24MCWH ZNS-MCW NS-2-41575W AS-2415C ZNS-MCWH NS-24MCW AS-2475C HS4-24150C...
  • Page 13 System Sensor Devices: Wall Horn/Strobes P2RH P4RH P2RK P4RK P2RHK P4RHK P2WH P4WH Wall Strobes SRHK Ceiling Horn/Strobes PC2R PC4R PC2RH PC4RH PC2RK PC4RK PC2RHK PC4RHK PC2W PC4W PC2WH PC4WH Ceiling Strobes SCRHK SCRH SCRK SCWH Horns AL642ULADA - 13 -...
  • Page 14 AS-MC-W SET-S17-CW-WP ZR-HMC-CW AS-HMC-R SET-MC-CW ZBB-R AS-HMC-W SET-MC-CR ZBB-W AS-MC-CR SET-HMC-CW MTH-R AS-MC-CW SET-HMC-CR MTH-W AS-HMC-CR SET-177-CR-WP MTH-MC-R AS-HMC-CW SET-177-CW-WP MTH-MC-W AS-75-R-WP SET-185-R-WP MTH-75-R-WP AS-75-CR-WP SET-185-W-WP MTH-15-115-R-WP AH-R SEF-MC-R MTH-HMC-CR-WP AH-W SEF-MC-W MTH-HMC-R-WP AH-WP SEF-HMC-R MTH-HMC-W-WP - 14 - AL642ULADA...
  • Page 15 Notes: AL642ULADA - 15 -...

  • Page 16: Enclosure Dimensions

    2.75" 2.75" 7.25" 14.5" Altronix is not responsible for any typographical errors. 140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056 web site: www.altronix.com, e-mail: info@altronix.com, Lifetime Warranty, Made in U.S.A. IIAL642ULADA I30I MEMBER - 16 - AL642ULADA...
