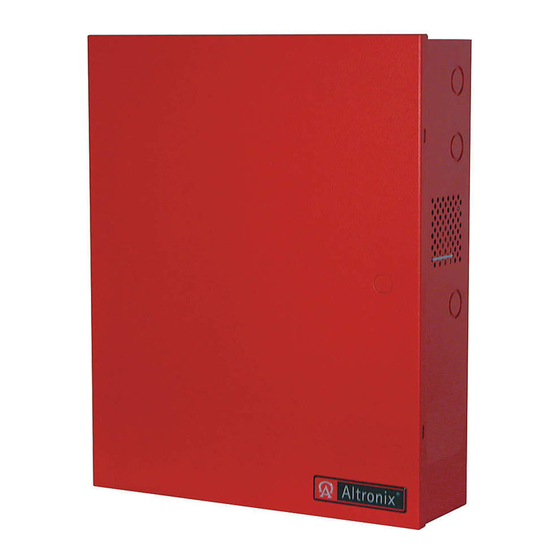

Altronix AL602ULADAJ Application Manual
Nac power extenders
Hide thumbs
Also See for AL602ULADAJ:
- Installation manual (16 pages) ,
- Application manual (8 pages) ,
- Application manual (8 pages)
Related Manuals for Altronix AL602ULADAJ
Summary of Contents for Altronix AL602ULADAJ
- Page 1 AL602ULADA(J) AL802ULADA(J) AL1002ULADA(J) NAC Power Extenders Application Guide (See Installation Guide for additional information) Altronix Corp. 140 58th St. Brooklyn, NY More than just power. Rev. 042010...
- Page 2 1. General Information (Use this in conjunction with respective Installation Guide): Altronix AL602ULADA, AL602ULADAJ, AL802ULADA, AL802ULADAJ, AL1002ULADA and AL1002ULADAJ are very versatile devices. They can be used with or without specific synchronization modules provided by some manufacturers. Multiple units can be synchronized by using either the built-in sync mode or a external synchronization module.
- Page 3 3. Non-synchronizable NAC Appliances: When using NAC appliances not designed to support synchronization feature, it is recommended to use separate output circuits for audible notification appliances (horns) and visual notification appliances (strobes). Set DIP switches for the visual notification appliances to follow Input 1 [IN1] and for audible notification appli- ances to follow Input 2 [IN2].
- Page 4 5. Synchronizing NAC Power Extender Using Built-in Sync Protocol: ® AL602/AL802/1002ULADA(J) have built-in protocols to support Amseco, Faraday, Gentex and System Sensor ® , Wheelock ® two-wire synchronizable devices, therefore an external sync module is not required (Output Programming Selection Table, pg. 6). In these modes Input 1 is always used to activate visual notifica- tion appliances (strobes) and Input 2 is used to activate and silence audible notification appliances (strobes).
- Page 5 Cooper Wheelock. tion over a two-wire circuit while leaving strobes active. *Note: The AL602ULADA, AL602ULADAJ, AL802ULADA, AL802ULADAJ, AL1002ULADA and AL1002ULADAJ will only synchronize horns, horn/strobes and strobes that contain synchronization capability. Contact signal manufacturer for more detailed info.
- Page 6 Notes: - 6 - 02 ULADA Application Guide...
- Page 7 Notes: 02 ULADA Application Guide - 7 -...
-
Page 8: Enclosure Dimensions
(38.1mm) Altronix is not responsible for any typographical errors. 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty | Made in U.S.A. MEMBER 02ULADA Application Guide F26R...
