Page 1: Installation Guide
AL802ULADA NAC Power Extender Installation Guide (See Application Guide for additional information) Altronix Corp. 140 58th St. Brooklyn, NY Rev. 042010... -
Page 2: Specifications

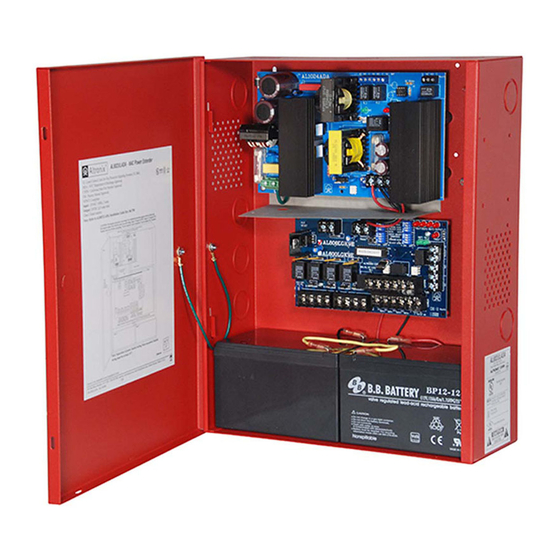

AL802ULADA - NAC Power Extender Overview: The Altronix AL802ULADA is an extremely cost effective 8 amp remote power supply/battery charger. It may be connected to any 12 or 24 volt Fire Alarm Control Panel (FACP). Primary applications include Notification Appliance Circuit (NAC such as strobes and horns) expansion support to meet ADA requirements. -
Page 3: Power Supply Specifications
Use two (2) 12VDC / 12AH or two (2) 12VDC / 7AH batteries connected in series. Stand-by/Alarm Current 90mA/175mA Consumption: EOL Resistor 2.2K (2200 ohm), Altronix Model # AL-EOL22 (included). (end of line): Ground fault maximum 1000 ohm. test impedance:... - Page 4 Cooper Wheelock. *Note: The AL802ULADA will only synchronize horns, horn/strobes and strobes that contain synchronization capability. Contact signal manufacturer for more detailed info. The same synchronization mode must be selected for all outputs Note: It is required to control visual notification appliances (strobes) via input 1 (IN1) and audible notification appliances (horns) via input 2 (IN2).
- Page 5 For loads connected to “AUX” please refer to battery “Stand-by Specifications” above for ratings. When loads are connected to “AUX” output during alarm condition, the remaining outputs may not exceed 8 amp total alarm current (example: AUX = 1 amp, outputs up to 7 amp). AL802ULADA - 5 -...
-
Page 6: Led Diagnostics
The green input LEDs will be off (normal condition). To reset the memory depress the reset button (Fig. 2c, pg. 7). The LED(s) will extinguish. Note: If indicating circuits have been restored, memory reset is not required for normal operation of the unit. - 6 - AL802ULADA... -
Page 7: Reset Button
RET1+ RET1-- RET2+ RET2-- C "DRY2" NC LOWER TERMINALS (Not Supplied) Power-Limited Outputs Supervised Non-Supervised 2.5 amp per output in alarm ower (total= 8 amp) on Relay Addressable (Supervised) pplied) Control Module Trigger Output See Note 2 AL802ULADA - 7 -... -
Page 8: Maintenance
Fuses: Check fuse on the power supply board, replace if necessary. Input fuse rating is 5 amp @ 250V. Note: Maximum charging current is 3.2 amp. Note: Expected battery life is 5 years; however, it is recommended changing batteries in 4 years or less if needed. - 8 - AL802ULADA... -
Page 9: Battery Calculation Worksheet
Current Current For each device use this formula: This column x This column = Equals Current per number of devices. Stand-by: 90mA 90mA AL802ULADA (Current draw from battery) Alarm: 175mA 175mA AL802 Current 90mA 175mA Auxiliary Devices Refer to device manual for current ratings. -
Page 10: Appendix A - Ul Listed Compatible Devices
Appendix A - UL Listed Compatible Devices A.1 Four (4) Wire Smoke Detectors Table A-1 below lists four (4) wire smoke detectors compatible with AL802ULADA AUX output. Max Standby Alarm Detector Type Smoke Detector/Base Current (mA) Current (mA) System Sensor B112LP Base 0.12... - Page 11 System Sensor 6424 Projected Beam 28.4 System Sensor Beam 1224(S) Projected Beam 38.5 * Contact manufacturer for current draws A.2 Relays Table A-3 below lists relays compatible with AL802ULADA AUX output. Manufacturer Model Current (mA) PR-1 PR-2 PR-3 EOLR-1 R-10T...
-
Page 12: Enclosure Dimensions
(38.1mm) (117.22mm) (117.22mm) (38.1mm) Altronix is not responsible for any typographical errors. 140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056 web site: www.altronix.com, e-mail: info@altronix.com, Lifetime Warranty, Made in U.S.A. IIAL802ULADA I04M MEMBER - 12 - AL802ULADA...
