Altronix FireSwitch108 Installation Manual page 15

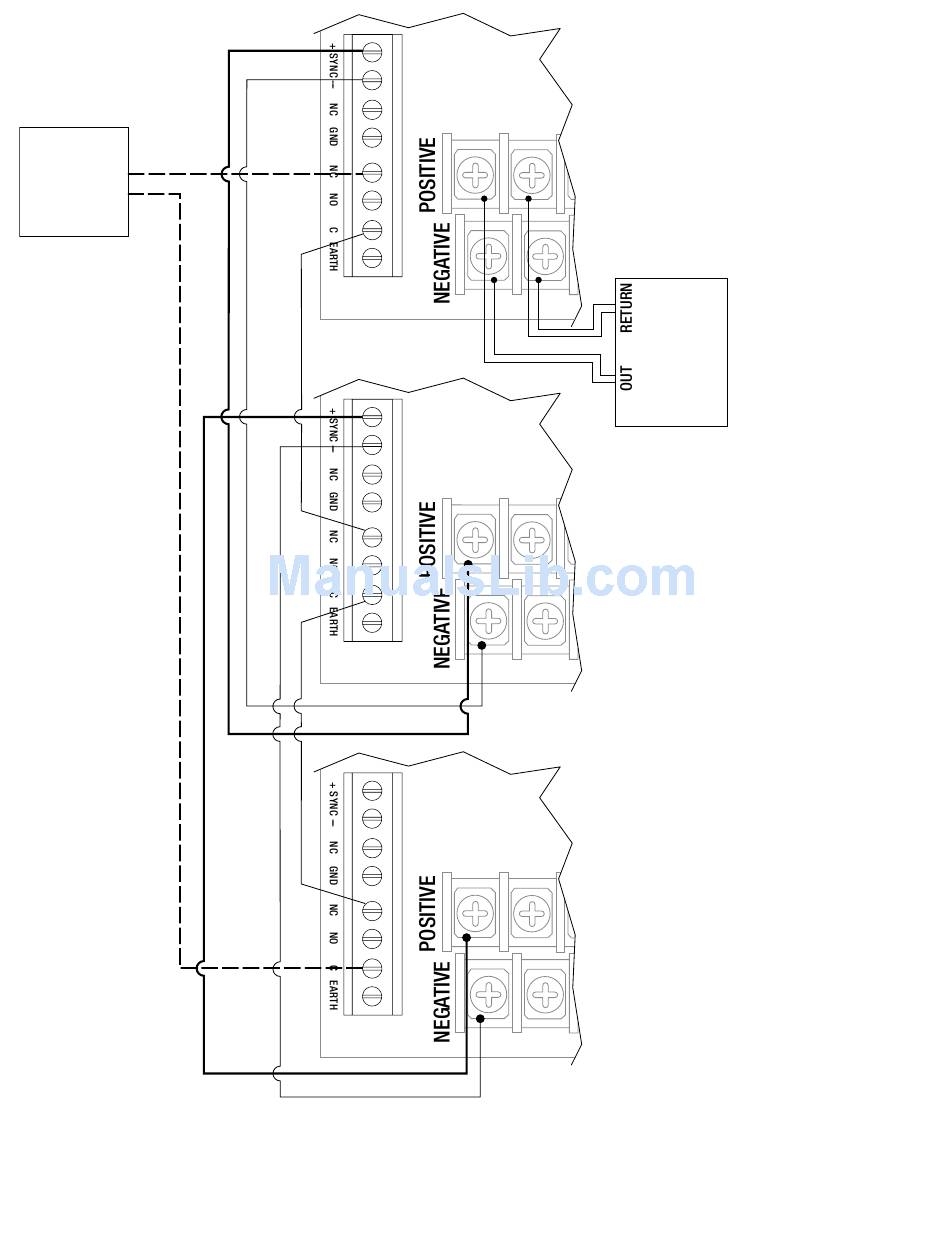

Fig. 10
Addressable
Module
Supervision
For this application set Dip Switches for INP2 to "ON" position on all units,
except the one triggered from FACP
FireSwitch108
FireSwitch Logic Board:
Programmed for desired
Notification Appliance
INP1 RET1
Control Panel)
FireSwitch Logic Board:
Programmed for
Following INP2 (2c)
INP2 RET2
FireSwitch Logic Board:
Programmed for
Following INP2 (2c)
A total of four (4) FireSwitch
units can be inter-connected
INP2 RET2
Class A signaling
FACP
circuit hook-up
non-silencable
(Fire Alarm
configuration.
- 15 -
