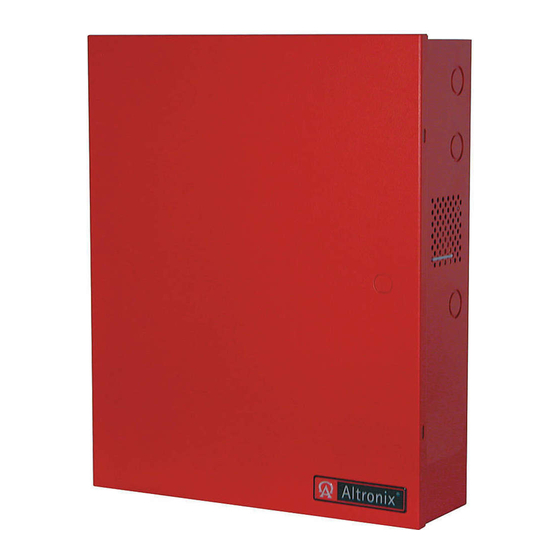

AL602ULADAJ
NAC Power Extender
Installation Guide
(see Application Guide for additional information)
Altronix Corp.
140 58th St. Brooklyn, NY
More than just power.
Rev. 111819
TM
Installing Company: _______________ Service Rep. Name: __________________________________
Address: _____________________________________________ Phone #: __________________
Advertisement
Table of Contents
Related Manuals for Altronix AL602ULADAJ
Summary of Contents for Altronix AL602ULADAJ
- Page 1 AL602ULADAJ NAC Power Extender Installation Guide (see Application Guide for additional information) Altronix Corp. 140 58th St. Brooklyn, NY More than just power. Rev. 111819 Installing Company: _______________ Service Rep. Name: __________________________________ Address: _____________________________________________ Phone #: __________________...
-
Page 2: Table Of Contents
Enclosure Dimensions ............pg. 16 - 2 - AL602ULADAJ Installation Guide... -
Page 3: Overview
Overview: Altronix AL602ULADAJ is an extremely cost effective 6.5A remote power supply/battery charger. It may be connected to any 24 volt Fire Alarm Control Panel (FACP). Primary applications include Notification Appliance Circuit (NAC such as strobes and horns) expansion support to meet ADA requirements. It also provides auxiliary power to support system accessories. -
Page 4: Power Supply Specifications
Use two (2) 12VDC / 7AH, two (2) 12VDC / 12AH or two (2) 12VDC / 40AH Battery batteries connected in series. Stand-by/Alarm 90mA/175mA Current Consumption: EOL Resistor (end of line): 2.2K (2200 Ohm), Altronix Model # AL-EOL22 (included). Ground fault maximum 1000 Ohm. test impedance: Stand-by Specifications: Stand-by Time Total... -
Page 5: Output Programming Selection Table
Cooper Wheelock. tion appliances (strobes) to be silenced/ deactivated at the same time. *Note: The AL602ULADAJ will only synchronize horns, horn/strobes and strobes that contain synchronization capability. The same synchronization mode must be selected for all outputs. AL602ULADAJ Installation Guide... -
Page 6: Amount Of Notification Appliances Per Nac
For loads connected to “AUX” please refer to battery “Stand-by Specifications”, pg. 4 for ratings. When loads are connected to “AUX” output during alarm condition, the remaining outputs may not exceed 6.5A total alarm current (example: AUX = 1A, outputs up to 5.5A). - 6 - AL602ULADAJ Installation Guide... -
Page 7: Al600Ada Power Supply Board
To reset the memory depress the reset button (Fig. 2c, pg. 9). The LED(s) will extinguish. Note: If indicating circuits have been restored, memory reset is not required for normal operation of the unit. AL602ULADAJ Installation Guide - 7 -... -
Page 8: Battery Calculation Worksheet
(30% extra insurance to meet desired performance) Total ampere - hours required Units are capable of recharging 40AH battery max. If total ampere - hour required exceeds 40AH, decrease AUX current to provide enough stand-by time for the application. - 8 - AL602ULADAJ Installation Guide... -
Page 9: Hookup Diagram
OUT1 Non power-limited Non power-limited INPUT S Compatible Special TEMPO Application Devices. See Compatibility List STROBE IN > OUT OUT2 INPUT S TEMPO STROBE RESET IN > OUT Fig. 2c Trouble Memory Reset Button AL602ULADAJ Installation Guide - 9 -... -
Page 10: Optional Hookups
Check input fuse on the power supply board, replace if necessary. Input fuse rating is 5A @ 250V. Note: Maximum charging current is 650mA. Note: Expected battery life is 5 years; however, it is recommended changing batteries in 4 years or less if needed. - 10 - AL602ULADAJ Installation Guide... -
Page 11: Compatible Ul/Cul Listed Devices For Synchronization
Appendix A: Compatible UL/cUL Listed Devices for Synchronization –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– A-1 Strobes, Horns, and Horn/Strobes Table A-1 below lists Strobes, Horns, and Horn/Strobes compatible with AL602ULADAJ NAC outputs. System Sensor: CHSR - UL P4R-SP - UL PC4RH-P - UL SPSCW - UL... - Page 12 Appendix A (cont’d): Compatible UL/cUL Listed Devices for Synchronization –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– A-1 Strobes, Horns, and Horn/Strobes (cont’d) Table A-1 below lists Strobes, Horns, and Horn/Strobes compatible with AL602ULADAJ NAC outputs. Gentex: GCS24CR - UL GCCB24PCR / W - UL GEC24-15/75WR - UL...
- Page 13 Appendix A (cont’d): Compatible UL/cUL Listed Devices for Synchronization –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– A-1 Strobes, Horns, and Horn/Strobes (cont’d) Table A-1 below lists Strobes, Horns, and Horn/Strobes compatible with AL602ULADAJ JNAC outputs. Cooper/Wheelock: 50-241575W-FR - UL/cUL E70-24MCW-FN - UL/cUL ET90-24MCCH-FN - UL/cUL LSTW-A* - UL/cUL...
-
Page 14: Ul Listed Compatible Devices
Appendix B - UL Listed Compatible Devices –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– B-1 Relays Table B-2 below lists relays compatible with AL602ULADAJ AUX output and Outputs 1-8 when programmed as AUX. Manufacturer Model Current (mA) Manufacturer Model Current (mA) PR-1 R-20T PR-2 R-24T PR-3... - Page 15 Notes: AL602ULADAJ Installation Guide - 15 -...
-
Page 16: Enclosure Dimensions
(69.9mm) 14.5” (368.3mm) Altronix is not responsible for any typographical errors. 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty | Made in U.S.A. IIAL602ULADAJ H03U MEMBER...
