Page 1: Installation Guide
AL1002ULADA NAC Power Extender Installation Guide (See Application Guide for additional information) Altronix Corp. 140 58th St. Brooklyn, NY Rev. 052313... -
Page 2: Specifications

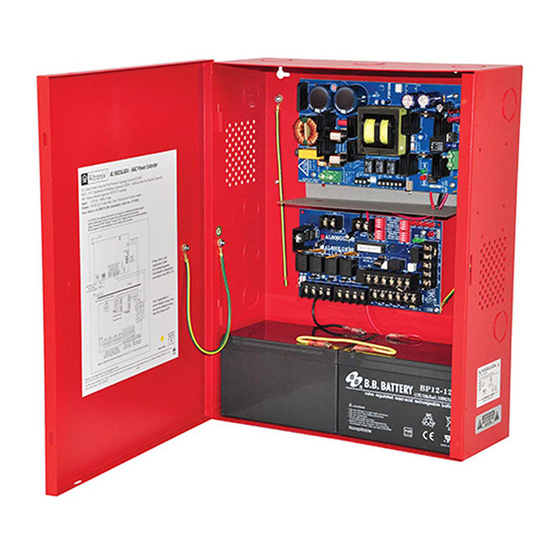

AL1002ULADA - NAC Power Extender Overview: The Altronix AL1002ULADA is an extremely cost effective 10 amp remote power supply/battery charger. It may be con- nected to any 12 or 24 volt Fire Alarm Control Panel (FACP). Primary applications include Notification Appliance Circuit (NAC such as strobes and horns) expansion support to meet ADA requirements. -
Page 3: Power Supply Specifications
4. Connect battery to the terminals marked [+ BAT - -] on the Power Supply Board (battery leads included). Note: If batteries being used in your installation do not fit into the AL1002ULADA unit, it is required to install a separate enclosure, UL Listed for appropriate application. - Page 4 Cooper Wheelock. *Note: The AL1002ULADA will only synchronize horns, horn/strobes and strobes that contain synchronization capability. Contact signal manufacturer for more detailed info. The same synchronization mode must be selected for all outputs.
- Page 5 For loads connected to “AUX” please refer to battery “Stand-by Specifications” above for ratings. When loads are connected to “AUX” output during alarm condition, the remaining outputs may not exceed 10 amp total alarm current (example: AUX = 1 amp, outputs up to 9 amp). AL1002ULADA - 5 -...
-
Page 6: Led Diagnostics
The green input LEDs will be off (normal condition). To reset the memory depress the reset button (Fig. 3c, pg. 8). The LED(s) will extinguish. Note: If indicating circuits have been restored, memory reset is not required for normal operation of the unit. - 6 - AL1002ULADA... - Page 7 NEC Power-Limited Wiring Requirements for AL1002ULADA Models: Power-limited and non power-limited circuit wiring must remain separated in the cabinet. All power-limited circuit wiring must remain at least 0.25” away from any non power-limited circuit wiring. Furthermore, all power-limited circuit wiring and non power-limited circuit wiring must enter and exit the cabinet through different conduits. One such example of this is shown below.
-
Page 8: Maintenance
250V, Output fuse rating is 15 amp @ 32V. Note: Maximum charging current is 1.5 amp. Note: Expected battery life is 5 years; however, it is recommended changing batteries in 4 years or less if needed. - 8 - AL1002ULADA... -
Page 9: Battery Calculation Worksheet
Current Current For each device use this formula: This column x This column = Equals Current per number of devices. Stand-by: 130mA 130mA AL1002ULADA (Current draw from battery) Alarm: 300mA 300mA AL1002 Current 130mA 300mA Auxiliary Devices Refer to device manual for current ratings. -
Page 10: Appendix A - Ul Listed Compatible Devices
Appendix A - UL Listed Compatible Devices A.1 Four (4) Wire Smoke Detectors Table A-1 below lists four (4) wire smoke detectors compatible with AL1002ULADA AUX output. Max Standby Alarm Smoke Detector/Base Detector Type Current (mA) Current (mA) FenWal CPD-7021 (w/70-201000-005 Base) Ionization 0.10... - Page 11 System Sensor 6424 Projected Beam 28.4 System Sensor Beam 1224(S) Projected Beam 38.5 * Contact manufacturer for current draws A.2 Door Holders Table A-2 below lists door holders compatible with AL1002ULADA AUX output. Manufacturer Model Type Current (mA) Edwards DH150A Floor Mount...
- Page 12 (38.1mm) (117.22mm) (117.22mm) (38.1mm) Altronix is not responsible for any typographical errors. 140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056 web site: www.altronix.com, e-mail: info@altronix.com, Lifetime Warranty, Made in U.S.A. IIAL1002ULADA I04M MEMBER - 12 - AL1002ULADA...
