AL602ULADA
NAC Power Extender

Installation Guide

(see 02 Application Guide for additional information)
Altronix Corp.
140 58th St. Brooklyn, NY
Rev. 042209

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AL602ULADA and is the answer not in the manual?

Questions and answers

Related Manuals for Altronix AL602ULADA

Summary of Contents for Altronix AL602ULADA

  • Page 1: Installation Guide

    AL602ULADA NAC Power Extender Installation Guide (see 02 Application Guide for additional information) Altronix Corp. 140 58th St. Brooklyn, NY Rev. 042209...

  • Page 2: Specifications

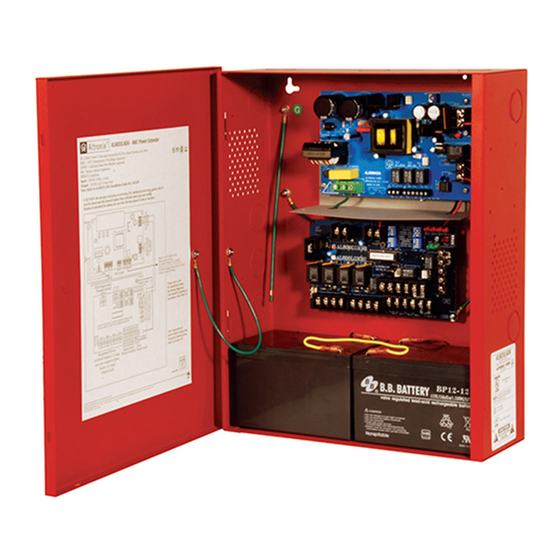

    AL602ULADA - NAC Power Extender Overview: The Altronix AL602ULADA is an extremely cost effective 6.5 amp remote power supply/battery charger. It may be connected to any 24 volt Fire Alarm Control Panel (FACP). Primary applications include Notification Appliance Circuit (NAC such as strobes and horns) expansion support to meet ADA requirements. It also provides auxiliary power to support system accessories.

  • Page 3: Power Supply Specifications

    Use two (2) 12VDC / 7AH, two (2) 12VDC / 12AH or two (2) 12VDC / 40AH Battery batteries connected in series. Stand-by/Alarm Current 90mA/175mA Consumption: EOL Resistor (end of line): 2.2K (2200 ohm), Altronix Model # AL-EOL22 (included). Ground fault maximum 1000 ohm. test impedance: Stand-by Specifications: Aux.
  • Page 4 (horns) to be silenced while visual notification appliances (strobes) continue to operate. The FACP must be capable of a visual annunciation to the silencing status of the output or zone(s) to which the AL602ULADA (NAC Power Extender) is connected. Sync Mode Selection Table:...
  • Page 5 *Note: The AL602ULADA will only synchronize horns, horn/strobes and strobes that contain synchronization capability. Contact signal manufacturer for more detailed info (see Appendix A.4, pg. 12). The same synchronization mode must be selected for all outputs Amount of Notification Appliances per NAC:...

  • Page 6: Led Diagnostics

    The green input LEDs will be off (normal condition). To reset the memory depress the reset button (Fig. 2c, pg. 7). The LED(s) will extinguish. Note: If indicating circuits have been restored, memory reset is not required for normal operation of the unit. - 6 - AL602ULADA...

  • Page 7: Hookup Diagram

    C "DRY1" NC UPPER TERMINALS RET1+ RET1-- RET2+ RET2-- C "DRY2" NC LOWER TERMINALS Power Limited Outputs 2.5 amp per Addressable output in alarm Control Module Power (total=10 amp) Trigger Output sion Relay See Note 2 upplied) AL602ULADA - 7 -...

  • Page 8: Maintenance

    Fuses: Check input fuse on the power supply board, replace if necessary. Input fuse rating is 5 amp @ 250V. Note: Maximum charging current is 650mA. Note: Expected battery life is 5 years; however, it is recommended changing batteries in 4 years or less if needed. - 8 - AL602ULADA...

  • Page 9: Battery Calculation Worksheet

    Current Current For each device use this formula: This column x This column = Equals Current per number of devices. Stand-by: 90mA 90mA AL602ULADA (Current draw from battery) Alarm: 175mA 175mA AL602 Current 90mA 175mA Auxiliary Devices Refer to device manual for current ratings.

  • Page 10: Appendix A - Ul Listed Compatible Devices

    Appendix A - UL Listed Compatible Devices A.1 Four (4) Wire Smoke Detectors Table A-1 below lists four (4) wire smoke detectors compatible with AL602ULADA AUX output. Max Standby Alarm Smoke Detector/Base Detector Type Current (mA) Current (mA) FenWal CPD-7021 (w/70-201000-005 Base) Ionization 0.10...
  • Page 11 System Sensor 6424 Projected Beam 28.4 System Sensor Beam 1224(S) Projected Beam 38.5 * Contact manufacturer for current draws A.2 Door Holders Table A-2 below lists door holders compatible with AL602ULADA AUX output. Manufacturer Model Type Current (mA) Edwards DH150A Floor Mount...
  • Page 12 A.4 Strobes Table A-4 below lists strobes compatible with AL602ULADA NAC output. Wheelock Devices: Sychronizing Horns AH-12 AH-12WP AH-24AH-24 HS-24 AH-24WP NH-12/24 MIZ-24S Sychronizing Horn Strobes AS-121575W HS4-24MCWH AS-24100C AS-24MCW HS4-24185W NS-121575W AS-24MCWH ZNS-MCW NS-2-41575W AS-2415C ZNS-MCWH NS-24MCW AS-2475C HS4-24150C...
  • Page 13 System Sensor Devices: Wall Horn/Strobes P2RH P4RH P2RK P4RK P2RHK P4RHK P2WH P4WH Wall Strobes SRHK Ceiling Horn/Strobes PC2R PC4R PC2RH PC4RH PC2RK PC4RK PC2RHK PC4RHK PC2W PC4W PC2WH PC4WH Ceiling Strobes SCRHK SCRH SCRK SCWH Horns AL602ULADA - 13 -...
  • Page 14 AS-MC-W SET-S17-CW-WP ZR-HMC-CW AS-HMC-R SET-MC-CW ZBB-R AS-HMC-W SET-MC-CR ZBB-W AS-MC-CR SET-HMC-CW MTH-R AS-MC-CW SET-HMC-CR MTH-W AS-HMC-CR SET-177-CR-WP MTH-MC-R AS-HMC-CW SET-177-CW-WP MTH-MC-W AS-75-R-WP SET-185-R-WP MTH-75-R-WP AS-75-CR-WP SET-185-W-WP MTH-15-115-R-WP AH-R SEF-MC-R MTH-HMC-CR-WP AH-W SEF-MC-W MTH-HMC-R-WP AH-WP SEF-HMC-R MTH-HMC-W-WP - 14 - AL602ULADA...
  • Page 15 Notes: AL602ULADA - 15 -...

  • Page 16: Enclosure Dimensions

    (38.1mm) (117.22mm) (117.22mm) (38.1mm) Altronix is not responsible for any typographical errors. 140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056 web site: www.altronix.com, e-mail: info@altronix.com, Lifetime Warranty, Made in U.S.A. IIAL602ULADA K13M MEMBER - 16 - AL602ULADA...
