The DMD™

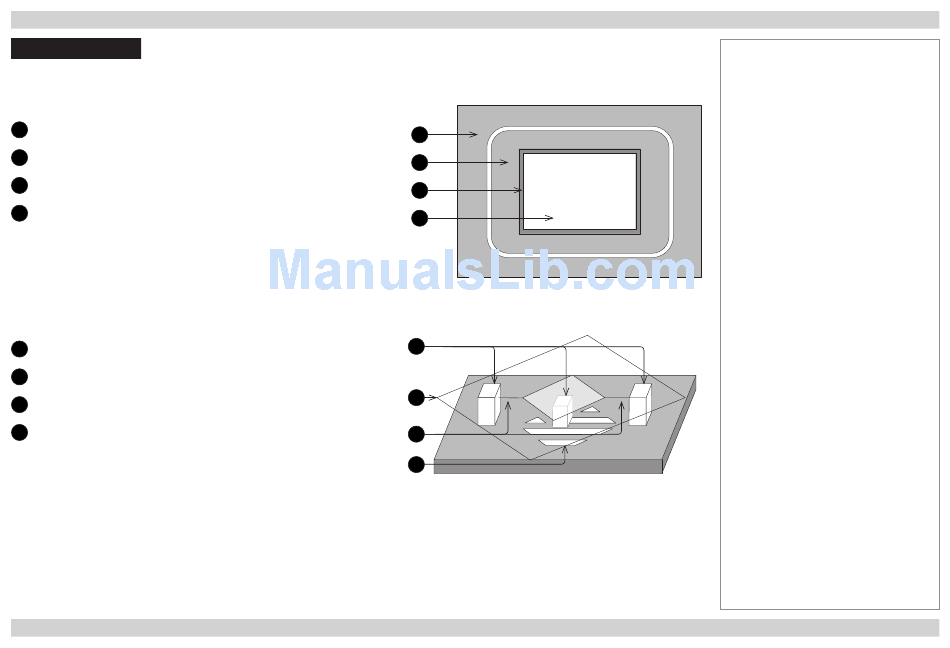

A DMD™ (Digital Micromirror Device™) is a true digital light modulator which utilises an array of up to 2.3 million moving aluminium mirrors,
with each one representing a pixel in the final projected image. The outermost micromirrors in the array remain inactive (pond of mirrors)
and are not used in constructing the image.
Casing
1
Light shield
2
Pond of mirrors
3
Array
4
Each mirror element is suspended over address electrodes by a torsion hinge between two posts.
Support posts
1
Mirror element
2
Torsion hinges
3
Offset address electrode
4
Rev B July 2014

THE DMD™

1
2
3
4
DMD
1
2
3
4
Mirror element with tilt mechanism
