Fitting the image to the screen

It is important that your screen is of sufficient height and
width to display images at all the aspect ratios you are
planning to use.

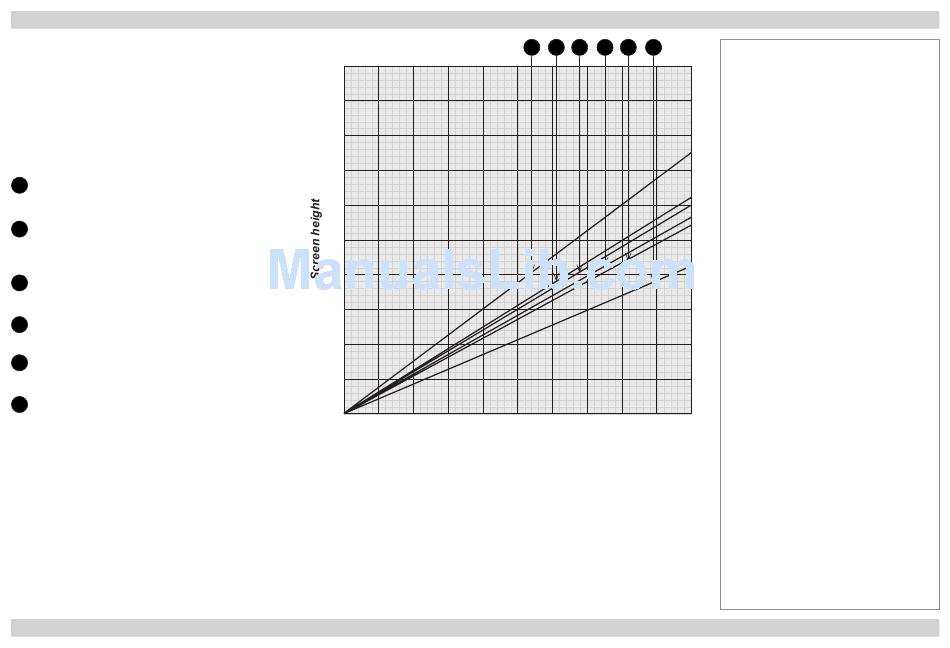

Use the conversion chart to check that you are able
to display the full image on your screen. If you have
insufficient height or width, you will have to reduce the
overall image size in order to display the full image on
your screen.
4:3 = 1.33:1
1
W = H x 1.33, H = W x 0.75
2 16:10 = 1.6:1
(native aspect ratio for WUXGA projectors)
W = H x 1.6, H = W x 0.625
3 1.66:1 (Vista)
W = H x 1.66, H = W x 0.6
16:9 = 1.78:1
4
W = H x 1.78, H = W x 0.56
5 1.85:1 (Flat)
W = H x 1.85, H = W x 0.54
2.35:1 (Scope)
6
W = H x 2.35, H = W x 0.426
