Full DMD™ width images
Full width images are 2.35:1 (Scope), 1.85:1 (Flat) 1.78:1 (16:9), 1.66:1 (Vista) and 1.6:1 (native).
0.84 - 1.03 : 1 zoom lens
1
1.56 - 1.86 : 1 zoom lens
2
1.85 - 2.40 : 1 zoom lens
3
2.40 - 4.00 : 1 zoom lens
4
Rev B July 2014
1
12 m (39.4 ft)
10 m (32.8 ft)
8 m (26.2 ft)
6 m (19.7 ft)
4 m (13.1 ft)
2 m (6.6 ft)
5 m
(16.4ft) (32.8 ft)

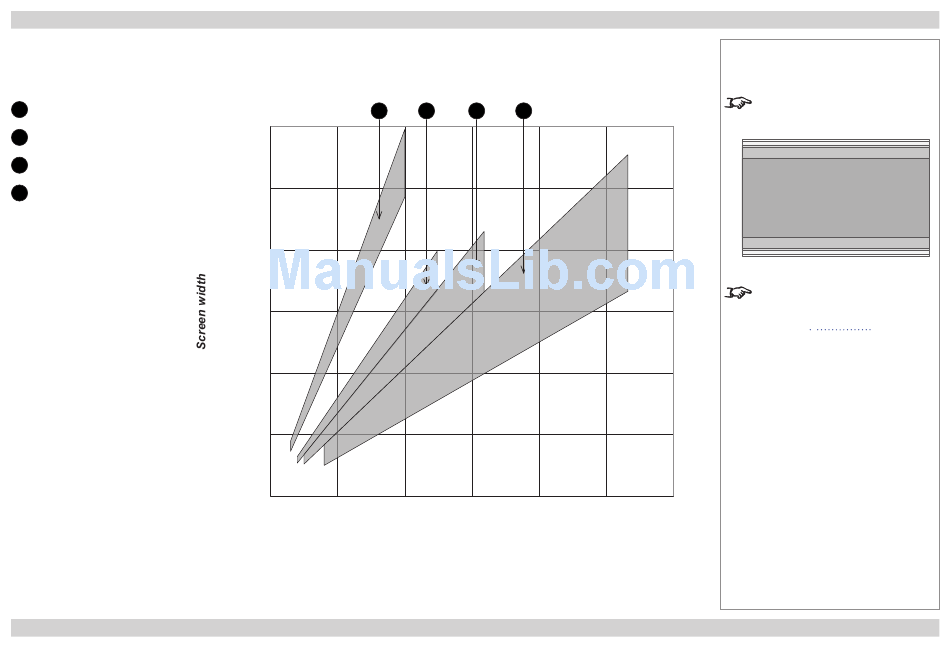

APPENDIX B: LENS CHARTS
2 3 4
10 m 15 m 20 m
(49.2 ft) (65.6 ft)
Throw distance
This chart has a TRC of 1.0, for use
with the following images:
For information about individual lens
part numbers and lens extension
sizes, see
document.
25 m 30 m
(82.0 ft) (98.4 ft)
Reference Guide
Notes
For WUXGA:
2.35:1 (Scope), 1.85:1 (Flat),
1.78:1 (16:9), 1.66:1 (Vista)
and 1.6:1 (native)
Appendix A earlier in this
