Digital Projection TITAN 1080p-500 Specifications

T I T A N 1 0 8 0 p - 5 0 0 • T I T A N 1 0 8 0 p - 6 0 0 M • T I T A N 1 0 8 0 p - 7 0 0 • T I T A N 1 0 8 0 p U l t r a C o n t r a s t
P E R F O R M A N C E S P E C I F I C A T I O N S
Brightness (±10%)
1080p-500: 6,000 ANSI Lumens
1080p-600M: 8,000 ANSI Lumens
1080p-700: 10,000 ANSI Lumens
Ultra Contrast: 5,000 ANSI Lumens
Contrast Ratio (±10%)
1080p-500/600M/700: 2000:1
1080p Ultra Contrast: 5000:1
Display Type
3 x .95" Dark Metal 1080p DMD™ with
Fast Transit Pixels for smooth
greyscale and improved contrast
DMD Specification
1920 x 1080 pixels native, 12˚ tilt angle
Fill Factor
87%
Sealed Optics at DMD™ Interface
Protects DMD's™ from optical contamination
Source Compatibility
• Composite, s-video, and color difference
video standards
• RGB graphics standards up to 1920 x
1080
• DVI standards with HDCP compliance
• High definition RGB and color difference
standards
• High definition / standard definition serial
digital formats (SD/HD-SDI) (from 4/08)
Video Processing
• Enhanced 7 point color correction
• Xenon Color Mode - User selectable yellow
notch filter and xenon-color mode
processing, enable the projector to closely
replicate xenon lamp spectral performance.
• Class leading Video de-interlacing/process-
ing of SD and HD sources using auto 3:2
and 2:2 extraction, ruggedized for editing
discontinuities
• Pixel-based motion adaptive interpolation
• User selectable preset, parametric
de-gamma and user downloadable
de-gamma
• Frame Delay: as low as 1 frame, source
dependant
• Auto mode selection - plug and play setup
Specifications subject to change without notice DP V4
06/08 ©2008 Digital Projection, Inc.
TITAN Pro Series II
Network Connection
LAN via RJ 45, Wireless 802.11b,
full protocol feature set
Lamp Type
1080p-500: Twin High Intensity Discharge
module (2 x 250W lamps)
1080p-600M: Dual HID modules (2 x 300W)
1080p-700: Dual HID modules (2 x 350W)
(& Ultra Contrast)
Lamp Life (typical)
1
1080p-500: 1500 hours dual lamp mode /
3000 hours single lamp mode
1080p-600: 2000 hours / 4000 hours
1080p-700: 2000 hours / 4000 hours
(& Ultra Contrast)
Lens Mount
Zoom: Motorized horizontal and vertical
lens shift, zoom and focus,
Fixed: Manual Focus.
Lens Shift (maximum)
Fixed 1.12 and Zoom Lenses:
Vert: +0.7, -0.5 frame
Hor: ±0.1875 frame
0.67 Fixed lens:
Vert: ±0.1 frame; Hor: ±0.1 frame
Lens Options
0.67 :1 fixed
1.12 :1 fixed (1.2-2.0m throw)
1.12 :1 fixed (3-15m throw)
1.39-1.87 :1 zoom
1.87-2.56 :1 zoom
2.56-4.16 :1 zoom
4.16-6.96 :1 zoom
• 1.12:1 Lenses include manual aperture
• High-contrast lenses available for 0.67:1
and all zoom lenses
Mechanical Mounting
• Front or rear table; Front or rear ceiling
(ceiling mount optional)
• Rugged, staging tolerant chassis with
integrated handles
• Optional rigging /stacking frame with
integrated pitch, roll and yaw adjust-
ments
Weight (chassis only)
1080p-500:59.5 lbs (27 kg)
1080p-600M/700/UC: 68 lbs (31kg)

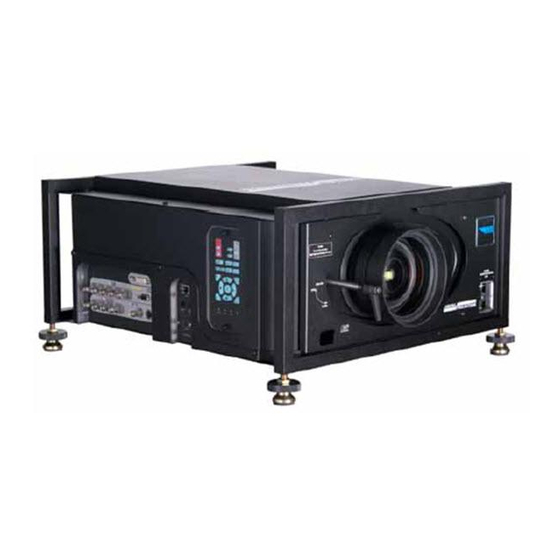

O v e r v i e w
Digital Projection International (DPI), Texas Instruments'
first DLP™ partner and the original innovator of the 3-chip
DLP™ projector, proudly introduces the newest of our
compact 1080p Pro Series II Displays, the TITAN Pro
1080p-500, 600M, 700 and Ultra Contrast.
Weighing in at just 59.5 and 68 lbs., the twin-lamp TITAN
1080p-500 and dual lamp 1080p-600M, 700 and Ultra
Contrast displays employ the latest in Texas Instruments'
1080p dark metal, 3-chip DLP™ technology to deliver up
to 10,000 lumens and up to 5000:1 contrast. Compact,
robustly built and ultra-quiet for their performance class,
TITANs are unmatched solutions for staging, command
and control, visualization, business, and educational
venues. For staging, the TITAN can be ordered with
DP's RapidRig flying and stacking frame, which provides
integrated pitch, roll and yaw adjustments, simplifying
installation and alignment accuracy.
Other key benefits of the TITAN 1080p line include:
• DP's NextGen electronics, featuring class leading de-interlacing
with SD and HD sources processed using auto 3:2 and 2:2
extraction
• Minimal video delay from input to screen - as low as 1 frame,
depending on source
• Sealed optics to protect DMD's and other focal plane compo-
nents from airborne contaminants
• Seven user-selectable inputs, including HDCP compliant DVI
plus SD/HD-SDI
• ColorMax calibration capabilities including enhanced seven-
point color correction for broader color space and accurate color
alignment
• User selectable Xenon-color mode processing, which enables
the projector to closely replicate the spectral performance of a
Xenon lamp
• Twin (1080p-500) or Dual (1080p-600M/700/Ultra Contrast) high
intensity discharge lamps, which can be run individually or simul-
taneously, with a typical life of up to 2000 hours per lamp
• A range of precision optics with extended lens shift, compatible
with all TITAN and LIGHTNING sx+ and 1080p models
• DP's CoolTek engineering, which delivers the highest lumen
performance with the lowest thermal (BTU) and noise level (dB)
output
The TITAN 1080p-500 and 1080p-600M, 700 and Ultra
Contrast Pro Series II displays are priced and sized for
every venue and everyday use - bringing the precision of
Digital Projection to your venue.
I N P U T C A P A B I L I T I E S
Type
Composite
S-Video
Component
Interlaced/Std def Y, Cr/Pr, Cb/Pb, S
Graphics
Progressive RGB/Progressive Interlaced
Hi def Y, Cr/Pr, Cb/PB
RGBHV (Progressive)
Digital RGB
Serial Digital
SD/HD-SDI (SMPTE 259M/292M)
Connector
Quantity
BNC
1
4-pin mini DIN
1
1
BNCx4
1
BNCx5
D sub (15-pin)
1
DVI 1
BNC 1
