Digital Projection
M-Vision 930 Series
Geometry menu continued from previous page
Keystone settings
Projector to the left
1
The projector is positioned
to the left of the screen.
To correct, apply a positive
Horizontal Keystone
value using the RIGHT
arrow button.
Projector to the right
2
The projector is positioned
to the right of the screen.
To correct, apply a negative
Horizontal Keystone
value using the LEFT arrow
button.
Projector high
3
The projector is positioned
above the screen at a
downward angle.
To correct, apply a negative
value
Vertical Keystone
using the DOWN arrow
button.
Projector low
4
The projector is positioned
below the screen at an
upward angle.
To correct, apply a positive
Vertical Keystone value
using the UP arrow button.
Projector straight
5
The projector is directly
opposite the screen at a
right angle both horizontally
and vertically.
No correction is needed.
Rev B July 2014
USING THE PROJECTOR
1
3 4

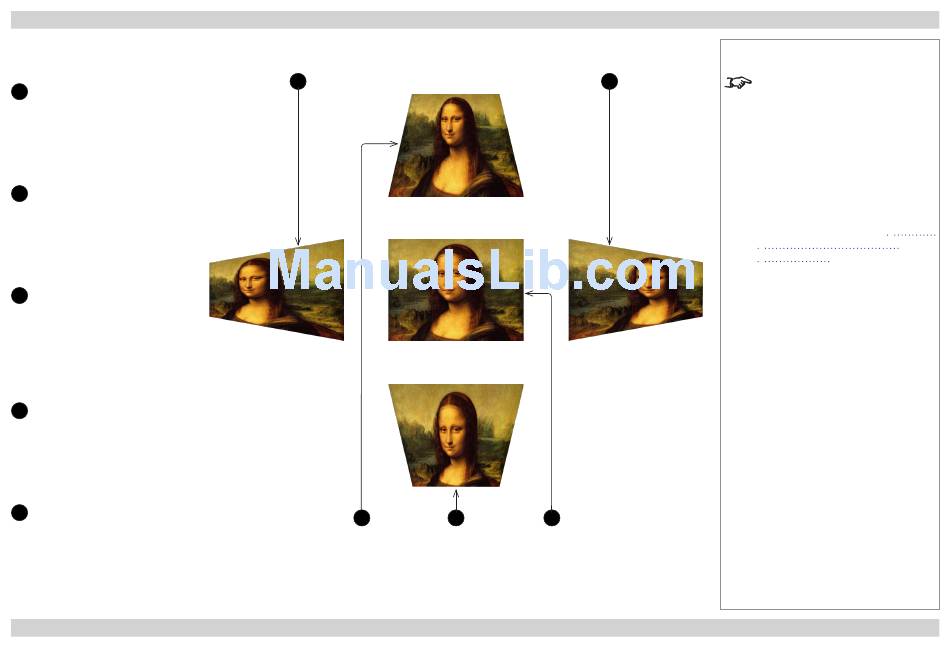

Horizontal and vertical keystone corrections
2
5
Operating Guide
Notes
corrections are
Keystone
unavailable when using any of the
following:
•
Rotation
•
Pincushion / Barrel
•
Corners
•
Blanking
•
Edge Blend
For more information, see Possible
Geometry and Edge Blend
combinations
further in this guide.
