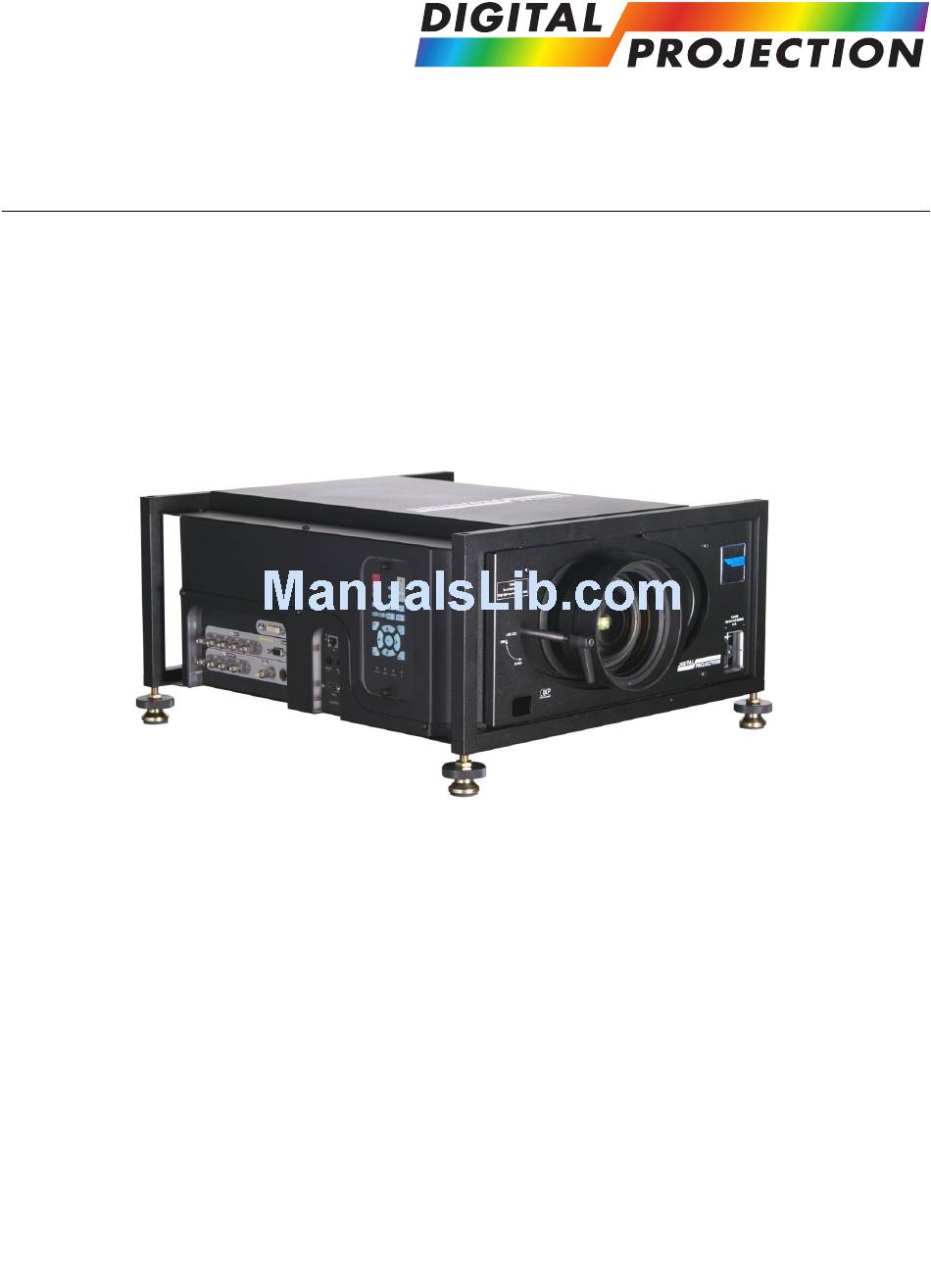

- Page 1 TITAN series Userware addendum to User Manual Rev A September 2008 page 5.1...
- Page 2 page 5.2 Rev A September 2008...
-
Page 3: Table Of Contents
5. Userware Contents Userware Introduction ..........................5.5 Applet version ..............................5.5 Disconnect ..............................5.5 Reconnect ..............................5.5 Standalone version ............................5.6 Disconnect ..............................5.6 Reconnect ..............................5.6 Show page ..........................5.7 On / Off ................................5.7 Shutter Open / Closed ............................. 5.7 Freeze / Un-Freeze ............................ - Page 4 Modal Colour Mode ............................5.21 Lift and Gain sliders ............................5.22 Temperature slider ............................5.22 Information page ........................5.23 Projector Information ............................ 5.23 Digital Projection ............................5.23 System page .......................... 5.24 Backlight ................................ 5.24 DMD controls ..............................5.24 Lamp mode ..............................5.24 Lamp Power slider ............................
-
Page 5: Userware
There are two versions of the Userware: the Applet version, stored on the projector software must be installed on and the Standalone version, supplied on disk or from the Digital Projection website. your browser. This software can be downloaded, free of charge Applet version from www.java.com. -
Page 6: Standalone Version
Notes To install the Userware, simply copy the file (from the CD, or downloaded from the Digital Projection website), to a folder on the computer. To use the Titan Userware the Double click on the filename to start the software. -
Page 7: Show Page
Digital Projection User Manual 5. Userware TITAN Show page Notes The Show page is the first to display when the browser connects to the projector. To return to the Show page at any time, click on Show. Picture sliders On / Off Click On to switch the projector On. -
Page 8: Input Presets
5. Userware Digital Projection User Manual TITAN Show page continued Notes Input Presets Recall For more information about To recall a set of modal settings that have been saved: input modes and input presets, Click on Preset, and select one of the Presets A - S, from the drop down menu. -
Page 9: Orientation
Digital Projection User Manual 5. Userware TITAN Show page continued Notes Orientation Click on Orientation to select one of the following from the drop down menu: Desktop Front Ceiling Front Desktop Rear Ceiling Rear Orientation Input Input Click on Input to select one of the following from the drop down menu:... -
Page 10: Test Pattern
5. Userware Digital Projection User Manual TITAN Show page continued Notes Test Pattern Click on Test Pattern to select one of the following from the drop down menu: Test Pattern Off Alignment Pattern Screen Layout For more information about test... -
Page 11: Lens Page
Digital Projection User Manual 5. Userware TITAN Lens page Notes To see the Lens page, click on Lens . Lens controls Lens controls Click on the buttons to Move, Focus and Zoom the lens. Click on Stop All Lens Movement to abort any unwanted lens control movement. -
Page 12: Image Page
5. Userware Digital Projection User Manual TITAN Image page Notes To see the Image page, click on Image. Component Click on Component to select one of the following from the drop down menu: The Component selection is Component RGB available for the Component Component YUV input only. -
Page 13: Colour Space
Digital Projection User Manual 5. Userware TITAN Image page continued Notes Colour Space Click on Colour Space to select one of the following from the drop down menu: SMPTE240 YPrPb REC709 YPrPb REC601 YPrPb SMPTE240 YCrCb REC709 YCrCb REC601 YCrCb... -
Page 14: Gamma
5. Userware Digital Projection User Manual TITAN Image page continued Notes Gamma Click on Gamma Correction to select one of the following from the drop down For more information about menu: Gamma, see Picture menu, in section 4. Controlling the Graphics Projector. -
Page 15: Screen Page
Digital Projection User Manual 5. Userware TITAN Screen page Notes To see the Screen page, click on Screen. Blanking On / Off The blanking curtains will not applied until Blanking is turned Click on Enable to turn the blanking On... -
Page 16: Mcgd Page
5. Userware Digital Projection User Manual TITAN MCGD page Notes MCGD - Measured Colour Gamut Data - can be used to correct for a number of environmental variables, for example: two or more different projectors Read the notes on MCGD,... -
Page 17: Mcgd Values
Digital Projection User Manual 5. Userware TITAN MCGD page continued Notes To see the MCGD page, click on MCGD . On first entering the MCGD screen, the MCGD values will show those currently loaded into the projector. Read the notes on MCGD,... -
Page 18: Tcgd Page
5. Userware Digital Projection User Manual TITAN TCGD page Notes TCGD - Target Colour Gamut Data - can be used to match the display to a pre- defined colour gamut, for example: to match the MCGD values from another projector... -
Page 19: Update Graph
Digital Projection User Manual 5. Userware TITAN TCGD page continued Notes Update Graph Click on Update Graph to show the effects of the new color gamut graphically. Read the notes on MCGD, TCGD and ColorMAX earlier in this section before making Save File any TCGD settings. -
Page 20: Global Colour Page
5. Userware Digital Projection User Manual TITAN Global Colour page Notes To see the Global page, click on Global. The Global page will not be available unless Global is selected in Modal Colour Mode (see next page). For more information about... -
Page 21: Modal Colour Page
Digital Projection User Manual 5. Userware TITAN Modal Colour page Notes To see the Modal Colour page, click on Modal. For more information about Modal Colour Mode colour mode, see Colour menu, and Setup menu, in Click on Modal Colour Mode to select one of the following from the drop down section 4. -
Page 22: Lift And Gain Sliders
5. Userware Digital Projection User Manual TITAN Modal Colour page continued Notes Lift and Gain sliders Use the sliders to adjust the Lift and Gain for Red, Green and Blue individually. For more information about colour mode, see Colour menu, and Setup menu, in section 4. -
Page 23: Information Page
To see the Information page, click on Info. Projector Information Click on Projector Information to see the following information about the projector and the Userware: Digital Projection Click on Digital Projection to see the following contact information: Rev A September 2008 page 5.23... -
Page 24: System Page
5. Userware Digital Projection User Manual TITAN System page Notes To see the System page, click on System. Backlight Click on Backlight to turn the control panel backlight On or Off DMD controls Click on the DMD buttons to turn each DMD On or Off. -
Page 25: Discover Page
Digital Projection User Manual 5. Userware TITAN Discover page Notes To see the Discover page, click on Discover. The Discover page is available If the projector that launched the Userware is still connected, then its LAN IP only on the Standalone version address will be listed in the panel and marked Online. -
Page 26: Refresh
5. Userware Digital Projection User Manual TITAN Discover page continued Notes Refresh Click on Refresh to search the network for other projectors. The Discover page is available only in the Standalone version Any projectors previously connected, that are now no longer online, will be of the Userware.
