Loading Ribbon

Skip this section for 4 inch DT models or when using direct
thermal printing.
Pivoting
Deck
1. Install the empty supply core on the take-up spindle.
2. Slide the ribbon roll onto the ribbon supply spindle until it stops against
the spindle flange.
3. Open the pivoting deck by rotating the deck lock lever fully clockwise until
the deck swings upward.

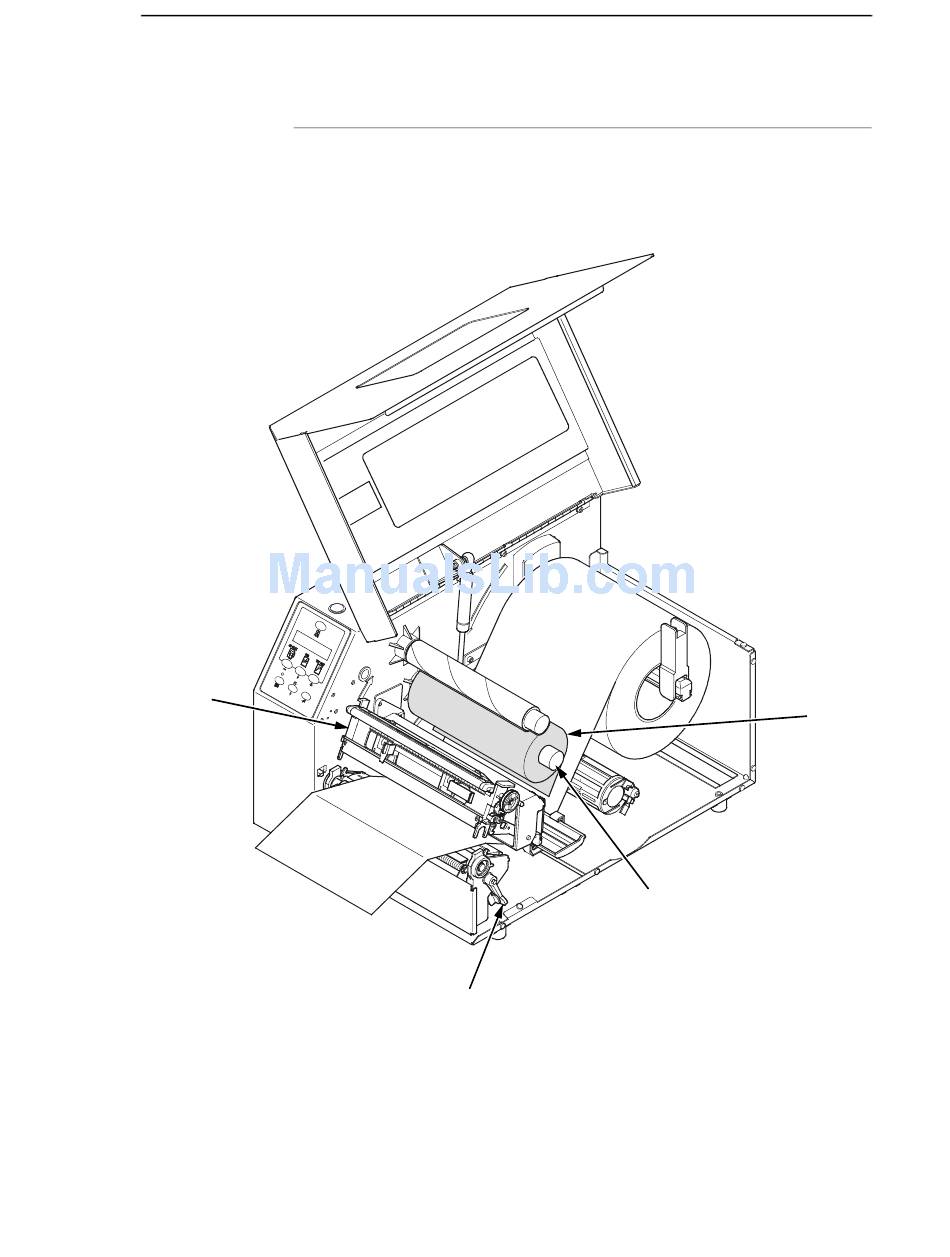

Ribbon Supply
Spindle
Deck Lock
Lever
Loading Ribbon
Ribbon
Roll
