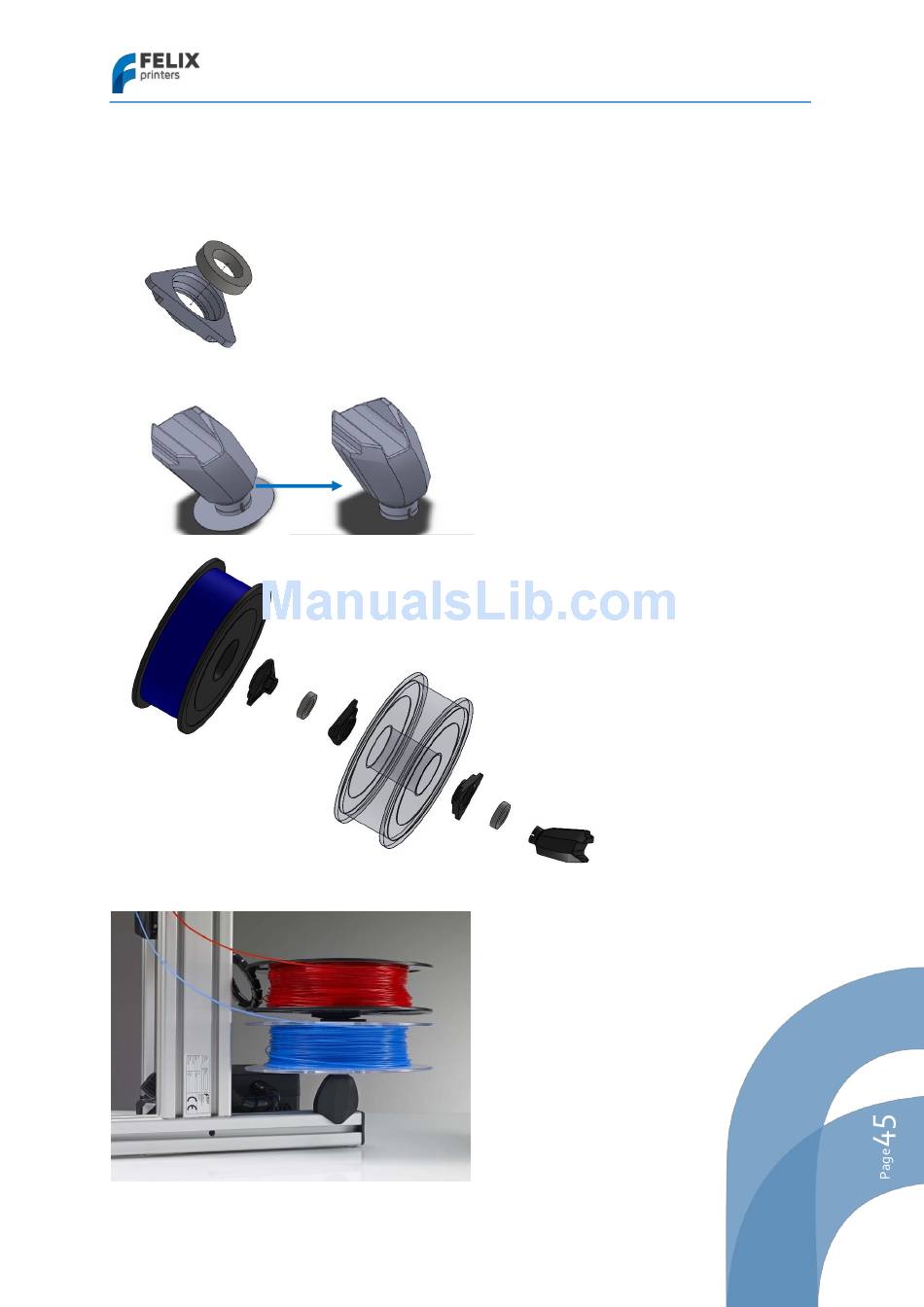

9.3 Filament roll off mechanism (horizontal)
The function of the roll off mechanism is to have the filament roll off smoothly from the spool and to prevent
knots during printing. Steps to install the filament roll off mechanism:
1.
Press the large bearing (there are two needed for dual extruder printers) into the printed part first. Pliers
could be needed.
Break away the thin flange of the part below. (The flange was used to get better adhesion to the heated
bed.)
2. The relation of the parts for the filament roll off mechanism.
3.
Place the parts onto the frame. Notice how the filament rolls off before it goes to the dust cleaner
support@FELIXprinters.com
www.FELIXprinters.com
User manual FELIX 3.0 3d printer
