NOTICE: Port threads
are: Internal - 2" NPT
for direct connection to
pipe. External - 3-1/4"
Buttress. Fits Sta-Rite
U11-200P Union Collar
for quick disconnect
pipe connection.
See Page 14 for Union
Kits.

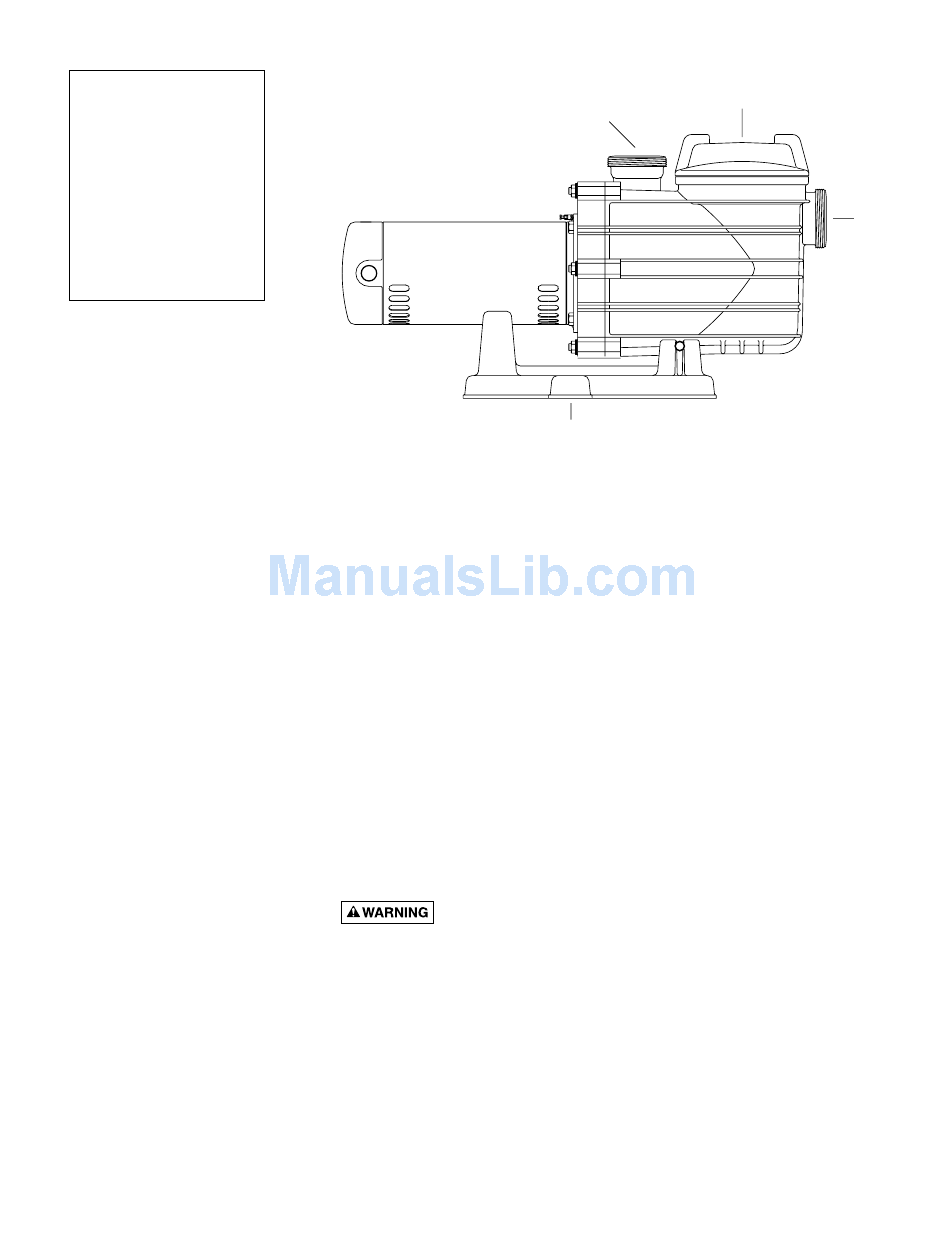

PUMP MAY BE BOLTED TO LEVEL
FOUNDATION OR MOUNTING BRACKET
Figure 1

INSTALLATION

Only qualified, licensed personnel should install pump and wiring.
Pump mount must:
Be located away from corrosive or flammable liquids.
Have enough ventilation to maintain air temperature at less than the maximum
ambient temperature rating (Max. Amb.) listed on the motor model plate. If this
pump is installed in an enclosure/pump house, the enclosure must have ade-
quate ventilation and air circulation to keep the temperature in the enclosure at
or below the motor's rated ambient temperature whenever the pump is running.
Be solid - Level - Rigid - Vibration free. (To reduce vibration and pipe stress,
bolt pump to mount.)
Allow pump suction inlet height to be as close to water level as possible.
Pump will not lift water more than 10'(3m).
Allow use of short, direct suction pipe (To reduce friction losses).
Allow for gate valves in suction and discharge piping.
Have adequate floor drainage to prevent flooding.
Be protected from excess moisture.
Allow adequate access for servicing pump and piping.
Fire and burn hazard. Modern motors run at high temperatures.
To reduce the risk of fire, do not allow leaves, debris, or foreign matter to col-
lect around the pump motor. To avoid burns when handling the motor, let it
cool for 20 minutes before trying to work on it.
NOTICE: When connecting threaded pipe directly to pump, use Teflon tape or
Plasto-Joint Stik
1
to seal connections. Do not use pipe dope; pipe dope causes
cracking in some plastics and may damage components in piping system.
When connecting pipe to pump with union half, use Teflon tape or Plasto-
Joint Stik between pipe and union adapter. Union collar to pump should be
assembled dry and hand-tight.
NOTICE: Pump suction and discharge connections have molded in thread
stops. DO NOT try to screw pipe in beyond these stops.
Lake Chemical Co., Chicago, Illinois
1
4
STRAINER BASKET
DISCHARGE PORT
TO FILTER OR POOL
COVER
SUCTION
PORT
FROM
POOL
OR
VACUUM
FILTERS
037 0893
