Repair Parts List - STA-RITE DYNA-GLAS Owner's Manual

Dyna-glas and dyna-max centrifugal pumps with integral trap
Hide thumbs

Advertisement

1
2 3
24
23
22
21
20
Model No.
HP
Single Speed 115/230/60/1
MPRA6D-146L
3/4
MPRA6E-147L
1
MPRA6F-148L
1-1/2
MPEA6D-146L
3/4
MPEA6E-147L
1
MPEA6F-148L
1-1/2
MPFA6D-176L
3/4
MPFA6E-146L
1
MPFA6F-147L
1-1/2
230/60/1
MPRA6G-155L
2
MPEA6G-155L
2
MPEAA6G-168L
2-1/2
Two Speed 230/60/1
MPRA6YF-174L
1-1/2
MPRA6YF-174LS
1-1/2
MPEA6YG-175L
2
MPEA6YG-175LS
2
MPEAA6YG-168L
2-1/2
MPEAA6YG-168LS
2-1/2
4
5
6
7
19
15B
Motor (Key No. 1)
A100DLL
A100ELL
A100FLL
AE100DLL
AE100ELL
AE100FLL
A100DLL
A100ELL
A100FLL
A100GLL
AE100GLL
AE100G5LL
A100FLL-Y
A100FLL-Y
AE100GLL-Y
AE100GLL-Y
AE100G5LL-Y
AE100G5LL-Y
DYNA-GLAS™ & DYNA-MAX™ POOL PUMP
See
Box A
8
8A
8B
9
10
11
18
17
16
14

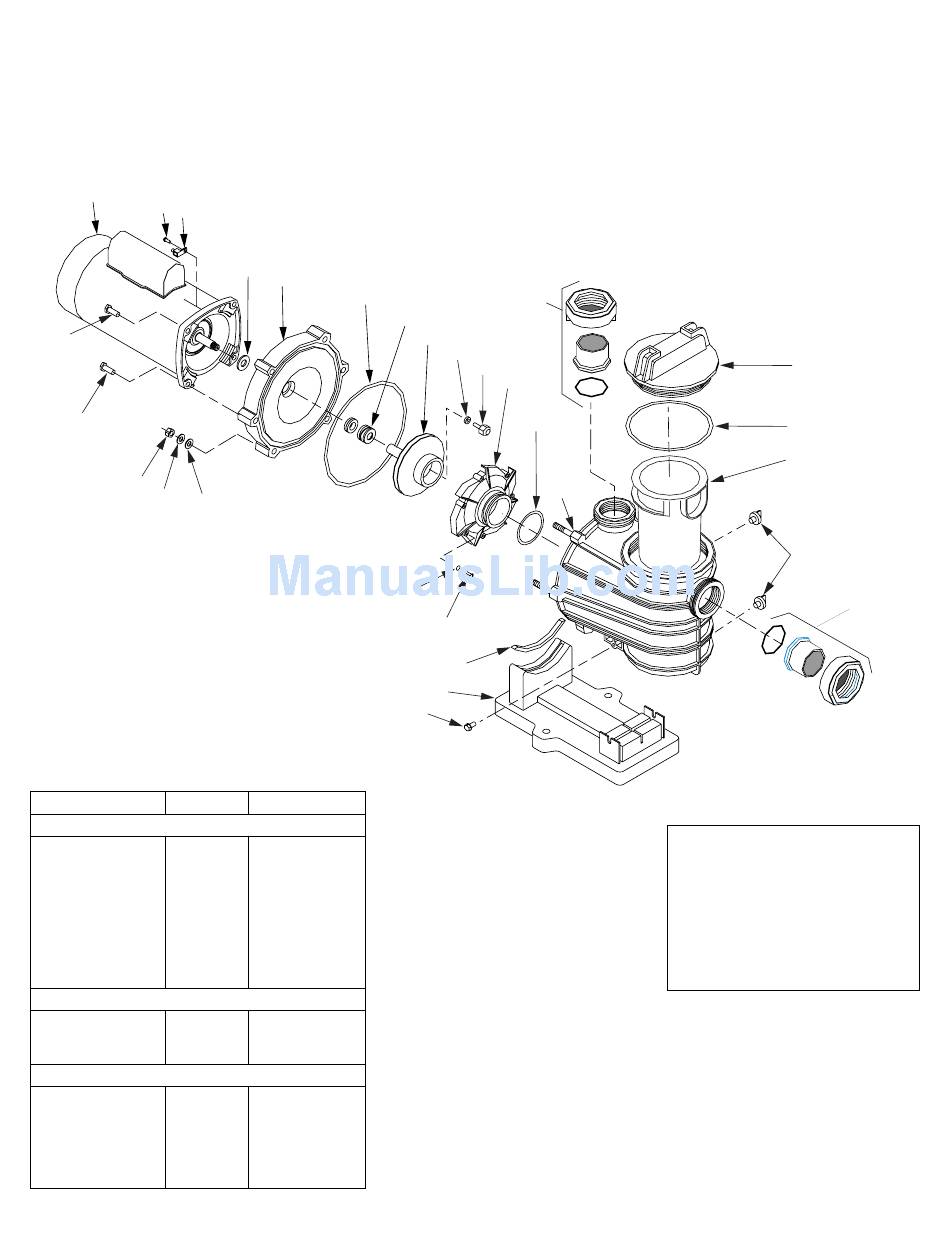

REPAIR PARTS LIST

3/4 through 2-1/2 HP Models
Single Speed and Two Speed
13
14
1169 0794
Box A
For quick disconnect pipe connections,
purchase separately:
Pkg. 188 2" Slip 1/2 Union Kit or
Pkg. 189 2" NPT 1/2 Union Kit.
Includes:
U11-200P Union Collar
U9-362 O-Ring
U11-196P 2" Slip adapter or
U11-199P 2" NPT adapter.
12
15A
See
Box A
