STA-RITE JWPA5C Owner's Manual

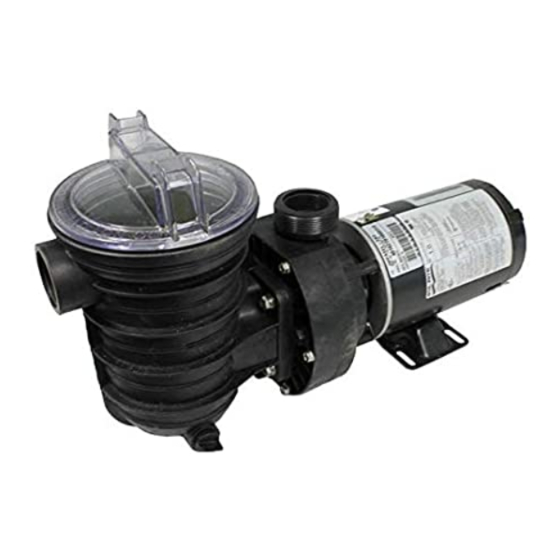

Waterford systems swimming pool pump
Hide thumbs

Advertisement

1/2 HP
JWPA5C
Sta-Rite Pool/Spa Group
293 Wright Street, Delavan, WI 53115
International: 262-728-5551, FAX: 262-728-7550
www.starite.com
Union City, TN • Delavan, WI • Mississauga, Ont. • Murrieta, CA
© 2004, Sta-Rite Industries
WATERFORD SYSTEMS
SWIMMING POOL PUMP
O
W
N
E
R '
INSTALLATION, OPERATION & PARTS
3/4 HP
JWPA5D
JWPA5DL
JWPA5DL
JWPA5D7L
3/4 HP/2 SPEED
JWPXYD
JWPXYDL
S
M
A
N
1922 0895A
MODELS
1 HP
JWPA5E
JWPA5EL
JWPA5E7
JWPA5E7L
1 HP/2 SPEED
JWPAXYE
JWPAXYEL
JWPA5YEL
JWPA5YE7L
JWPA5Y7EL
Printed in U.S.A.
U
A
L
1-1/2 HP
JWPA5F
JWPA5FL
JWPA5F7L
1-1/2 HP/2 SPEED
JWPA5YFL
JWPA5YF7L
This manual should be furnished to
the end user of this pump; its use
will reduce service calls and chance
of injury and will lengthen pump life.
S302 (Rev. 2/10/04)

Advertisement

loading

  Related Manuals for STA-RITE JWPA5C

  Summary of Contents for STA-RITE JWPA5C

  • Page 1 Sta-Rite Pool/Spa Group 293 Wright Street, Delavan, WI 53115 International: 262-728-5551, FAX: 262-728-7550 www.starite.com Union City, TN • Delavan, WI • Mississauga, Ont. • Murrieta, CA S302 (Rev. 2/10/04) © 2004, Sta-Rite Industries Printed in U.S.A.
  • Page 2: Table Of Contents

    To avoid unneeded service calls, prevent possible injuries, and get the most out of your pump, READ THIS MANUAL CAREFULLY! The Sta-Rite ‘JWP’ Series Above Ground Pool Pump: • Is designed to circulate water in swimming pools. • Is an excellent performer; durable, reliable.
  • Page 3: Installation

    Check all clamps, bolts, lids, and system accessories before testing. Release all air in system before testing. Tighten Sta-Rite trap lids to 30 ft. lbs. (4.1 kg-m) torque for testing. Water pressure for test must be less than 25 PSI (7.5 kg/cm Water Temperature for test must be less than 100 F.
  • Page 4 FIGURE 1 NOTICE: Pump suction and discharge connections have molded in thread stops. DO NOT try to screw pipe in beyond these stops. Tighten the pump/trap fittings only as much as it is required to insure a tight connection (1-1/2 turns past hand tight is sufficient). Overtightening may damage the pump trap.
  • Page 5: Electrical

    Fittings: Fittings restrict flow; for best efficiency use fewest possible fittings. Avoid fittings which could cause an air trap. Pool fittings must conform to International Association of Plumbing and Mechanical Officials (IAPMO) standards. Use only non-entrapping suction fitting or double suction (skimmer and main drain).
  • Page 6 Wiring: BONDING MOTOR NAMEPLATE Do not alter cord or plug on cord-connected units. Plug in to a GFCI pro- tected, grounded outlet only. If plug and outlet do not match, consult a GREEN GROUND licensed electrician. SCREW Pump must be permanently connected to circuit. Table I, Page 5, gives cor- MOTOR CANOPY rect wire and circuit breaker sizes for the pump alone.
  • Page 7 Dist. in Ft. (m) (Serv. to Motor) Temp. Number H.P. Rating Amps* Amps Hz/Phase 0-100’ (0-30) 101-200’ (31-60) 201-300’ (61-90) Rating-°C 1-Speed JWPA5C-2A8 115/60/1 14 (2) 12 (3) 10 (5.5) JWPA5DL-2A 115/60/1 14 (2) 12 (3) 10 (5.5) JWPA5DL-2A1 115/60/1...
  • Page 8: Operation

    OPERA TION NEVER run pump dry! Running pump dry may damage seals, causing leakage and flooding! Fill pump with water before starting motor. Before removing trap cover: 1. STOP PUMP before proceeding. 2. CLOSE GATE VALVES in suction and discharge pipes. 3.
  • Page 9: Storage/Winterizing

    Storage/Winterizing: Explosion hazard. Purging the system with compressed air can cause components to explode, with risk of severe injury or death to anyone nearby. Use only a low pressure (below 5 PSI), high volume blower when air purging the pump, filter, or piping. To prevent damage to components from fumes, store spa chemicals away from pump and spa.
  • Page 10: Pump Service

    PUMP SERVICE Pump should only be serviced by qualified personnel. For best results, use only genuine Sta-Rite factory parts. Be sure to prime pump (Page 7) before restarting. Figure 3 Before removing trap cover: 1. STOP PUMP before proceeding. 2. CLOSE GATE VALVES in suction and discharge pipes.
  • Page 11: Troubleshooting Guide

    TROUBLESHOOTING GUIDE Circuit Breaker In Home Panel Trips Repeatedly: Read and understand safety and operating instructions in this manual before doing any work 1. Breaker must be of adequate capacity. on pump! 2. For GFCI breaker, test according to GFCI manufac- turer’s instructions.
  • Page 12: Repair Parts List

    (Pkg 115) Union Half Package (C198-17M) 2133 1195 JWPA5D-2A, -230A JWPA5D-2A4, -2A8 JWPA5DL-2A JWPA5DL-2A1, -2A2 JWPA5D7L-2A JWPA5D7L- 2A1, -2A2 JWPXYD-A2 (2-Speed)* JWPA5C-2A8 JWPXYDL-A2 (2-Speed)* Description Qty. 1/2 HP 3/4 HP Motor 115V/60H/1 Ph. AS920CLL AS920DLL Motor, 115V, 2-Speed – 62003-2021 Motor, 230V –...
  • Page 13 REPAIR PARTS LIST Trap Basket Assembly (Pkg 115) 1 and 1-1/2 HP Union Half Package (C198-17M) 2133 1195 JWPA5E-2A, -2A4 JWPA5E-230A, 230A2 JWPA5EL-2A JWPA5EL-2A1, -2A2 JWPA5F-2A JWPA5E7-2A4 JWPA5FL-A, -2A JWPA5E7L-2A JWPA5FL-2A1, -2A2 JWPA5E7L-2A1, -2A2 JWPA5F7L-2A4, -2A1 JWPAXYE-A2* JWPA5YEL-A, -A1, -A2 JWPA5YFL-A, -A2 JWPAXYEL-A2* JWPA5YE7L-A1, -A2...
  • Page 16: Warranty

    Retain Warranty Certificate (upper portion) in a safe and convenient location for your records. DETACH HERE: Fill out bottom portion completely and mail within 10 days of purchase/installation to: ▼ Sta-Rite, Attn: Warranty Dept., 293 Wright St., Delavan, WI 53115 Warranty Registration Card ■ ■...
