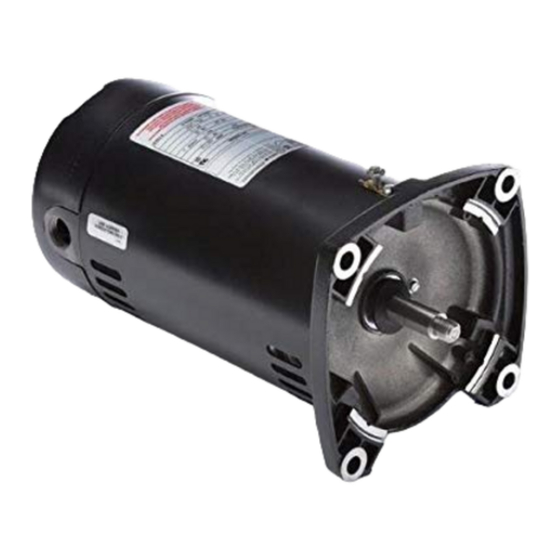

CENTRIFUGAL PUMPS with TRAP
Sta-Rite Pool/Spa Group
600 S. Jefferson Street, Waterford, WI 53185
North America: 800-752-0183, FAX 800-582-2217
International: 414-728-5551, FAX: 414-728-4461, TELEX: ITT 4970245
Oxnard, CA • Union City, TN • Delavan, WI • Waterford, WI
Printed in U.S.A. © 1996, Sta-Rite Industries, Inc.
MAX-E-GLAS
O
W N E
INSTALLATION, OPERATION & PARTS
PE Series MODELS
H.P.
1/2
PE5C-120L
3/4
PE5D-124L
1
PE5E-125L
1-1/2
PE5F-126L
2
PE5G-122L
3
3
R '
S
M
A
N
PE6C-120L
PE6D-124L
PE6E-125L
PE6F-126L
PE6G-122L
PE6H-139L
PE6H-139LC
U
A
L
PE52C-120L
PE52D-124L
PE52E-125L
PE52F-126L
PE52G-122
PE62H-139
PE6H3-139
This manual should be furnished to
the end user of this pump; its use will
reduce service calls and chance of
injury and will lengthen pump life.
S71
(Rev. 12/6/96)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MAX-E-GLAS PE Series and is the answer not in the manual?

Questions and answers

Summary of Contents for STA-RITE MAX-E-GLAS PE Series

  • Page 1 600 S. Jefferson Street, Waterford, WI 53185 North America: 800-752-0183, FAX 800-582-2217 International: 414-728-5551, FAX: 414-728-4461, TELEX: ITT 4970245 Oxnard, CA • Union City, TN • Delavan, WI • Waterford, WI (Rev. 12/6/96) Printed in U.S.A. © 1996, Sta-Rite Industries, Inc.
  • Page 2: Table Of Contents

    To avoid unneeded service calls, prevent possible injuries, and get the most out of your pump, READ THIS MANUAL CAREFULLY! The Sta-Rite ‘PE’ Series Self-priming Centrifugal pump: • Is designed for use with swimming pools or as a centrifugal pump.
  • Page 3: Safety Instructions

    • Check all clamps, bolts, lids, and system accessories before testing. • Release all air in system before testing. • Tighten Sta-Rite trap lids to 30 ft. lbs. (4.1 kg-m) torque for testing. • Water pressure for test must be less than 25 PSI (7.5 kg/cm2).
  • Page 4: Installation

    FIGURE 1 INSTALLATION Only qualified, licensed personnel should install pump and wiring. Pump mount must: Be solid - Level - Rigid - Vibration free. (To reduce vibration and pipe stress, bolt pump to mount.) Allow pump suction inlet height to be as close to water level as possible. Allow use of short, direct suction pipe (To reduce friction losses).
  • Page 5 Piping: Use at least 1-1/2" IPS PVC pipe with 5” (127mm) trap. Use at least 2” pipe with 6” (152mm) trap. Increase size if a long run is needed. To avoid strains on the pump, support both suction and discharge pipes inde- pendently.
  • Page 6: Electrical

    ELECTRICAL Ground motor before connecting to electrical power supply. Failure to ground motor can cause severe or fatal electrical shock hazard. Do not ground to a gas supply line. To avoid dangerous or fatal electrical shock, turn OFF power to motor before working on electrical connections.
  • Page 7: Operation

    OPERA TION NOTICE: NEVER run pump dry. Running pump dry may damage seals, caus- ing leakage and flooding. Fill pump with water before starting motor. Before removing trap cover: 1. STOP PUMP before proceeding. 2. CLOSE GATE VALVES in suction and discharge pipes. 3.
  • Page 8: Storage/Winterizing

    2. Remove trap cover and use low pressure air to blow accumulated water from the piping system. Use Sta-Rite U79-11 Lid Wrench to remove trap covers that have been overtightened or have taken a set and cannot be re- moved by hand.
  • Page 9: Pump Service

    PUMP SERVICE Pump should only be serviced by qualified personnel. Be sure to prime pump (Pg. 7) before starting. Before removing trap cover: 1. STOP PUMP before proceeding. 2. CLOSE GATE VALVES in suction and discharge pipes. 3. RELEASE ALL PRESSURE from pump and piping system. 4.
  • Page 10 Pump Reassembly/Installing New Seal 1. Ceramic seat must be clean and free of dirt, grease, dust, etc. Wet outer edge of O-Ring with small amount of liquid detergent; press ceramic seat into seal plate cavity firmly and squarely with finger pressure (Fig. 5). 2.
  • Page 11: Troubleshooting Guide

    TROUBLESHOOTING GUIDE Read and understand safety and operating instructions in this manual before doing any work on pump! Only qualified personnel should electrically test pump motor! FAILURE TO PUMP; REDUCED CAPACITY OR DISCHARGE PRESSURE Suction leaks/lost prime: 1. Pump must be primed; make sure that pump volute and trap are full of water.
  • Page 12: Repair Parts List

    REPAIR PARTS LIST PE SERIES MAX-E-GLAS POOL PUMP 1/2 through 1-1/2 HP Models Part Part Description Qty. Motor Chart at Right Screw, #10-32x1/2” U30-692SS 1831 0695 Bonding Lug U17-568 Water Slinger C69-2 Seal Plate C203-137P1 O-Ring U9-228A Parts are common to all models listed except as noted; Insert J3-2 Key Nos.
  • Page 13 REPAIR PARTS LIST PE SERIES MAX-E-GLAS POOL PUMP 2 HP Models Part Part 1831 0695 Description Qty. Motor Chart at Right Screw, #10-32x1/2” U30-692SS Bonding Lug U17-568 Water Slinger C69-2 Seal Plate C203-137P1 O-Ring U9-228A Insert J3-2 Shaft Seal U109-93SS Clamp C19-37A •...
  • Page 14 REPAIR PARTS LIST PE SERIES MAX-E-GLAS POOL PUMP 3 HP Models Part Part 1831 0695 Description Qty. Motor Chart at Right Screw, #10-32x1/2” U30-692SS Bonding Lug U17-568 Water Slinger C69-2 Seal Plate C203-137P1 O-Ring U9-228A Insert J3-2 Shaft Seal U109-93SS Clamp C19-37A •...
  • Page 15 5” TRAP/ADAPTER ASSEMBLY REPAIR PARTS LIST - 5” and 6” TRAPS* PKG. 115 Part No. Part Pkg. 115 Pkg. 161 Description 5” Trap 6” Trap Trap Cover C3-139P1 16920-0011 O-Ring - Cover U9-229 16920-0012 Strainer Basket C108-33P 16920-0017 Trap Body C153-53P1 C153-58P Gasket...
  • Page 16: Warranty

    Retain Warranty Certificate (upper portion) in a safe and convenient location for your records. DETACH HERE: Fill out bottom portion completely and mail within 10 days of purchase/installation to: Sta-Rite, Attn: Warranty Dept., 600 S. Jefferson St., Waterford, WI 53185 Warranty Registration Card...
