DANGER – HIGH VOLTAGE
Never access the back panel of a WET11 inside a Portable
To Prepare a replacement WET11 for wired access configuration

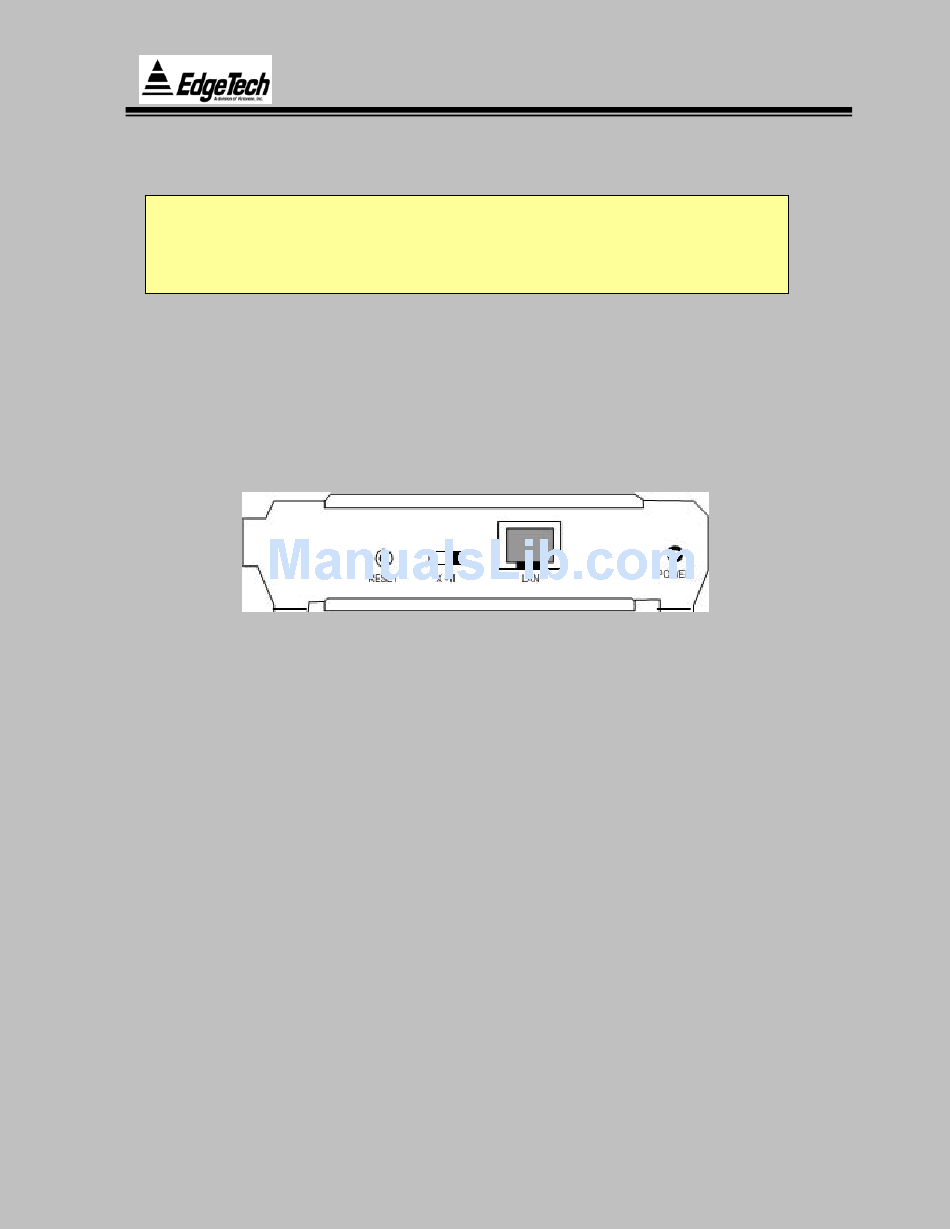

To access the RESET button on an installed WET11: Power off the Portable System,
then remove the four mounting screws of the WET11 chassis and tilt the WET11 left
side up to expose its back panel and allow access to the recessed RESET button.
1.
Connect an Ethernet cable between laptop and WET11 "LAN" jacks.
2.
The WET11 "X-II" switch should be in the "X" position for straight Ethernet
cables, and in the "II" position for crossover Ethernet cables. Remember to
restore this switch to its original position again when done.
3.
Connect the WET11 power cable to its "POWER" jack, and verify that the WET11
is powered by checking that its "PWR" light is on.
4.
Power up the laptop and open its "Network Connections" (in Control Panel).
5.
Disable Wireless Networking: Right-Click on "Wireless Network Connections" and
in the pop-up menu, click "Disable" to disable it.
6.
Enable the wired Network Connection: Right-Click on "Local Area Connection"
and in the pop-up menu, click Enable to enable it.
7.
Verify the wired Ethernet connection by checking that the WET11 "LAN" light is
on. If the "LAN" light is off, refer to the Troubleshooting list below.
8.
Restore the WET11 to its default Linksys wireless network settings by pushing
the WET11 recessed "RESET" button, located on the back panel.
Troubleshooting wired LAN Ethernet connection
Problem: The WET11 "LAN" light stays off after connecting the Ethernet cable.
1.
Make sure the laptop has power, is turned on, and the other end of the Ethernet
A
A
P
P
E
N
P
P
E
N
A-7
A
W
S
A
W
S
D
I
X
I
R
E
L
E
S
S
E
D
I
X
I
R
E
L
E
S
S
E
990-0000058-1000
Rev. B
T
U
P
T
U
P
