5.2.1.
DC Power & Ethernet Cable
This 7.6m (25') long cable is used to supply one or both of the following functions:
DC power for the unit: 12V to 15V (typically used for battery powered installations).
Direct Ethernet 100BaseT connection to the Notebook Computer.
The DC Power color code for the cable is:
Yellow = +12V or Red = +12V
Brown = 0V
or Black = 0V
Note: AC and/or DC power may be connected simultaneously or individually.
5.2.2.

Standard 35 Meter Towcable

The eight conductor 35M towcable supplied is the minimum length recommended to
operate the system.
990-0000058-1000

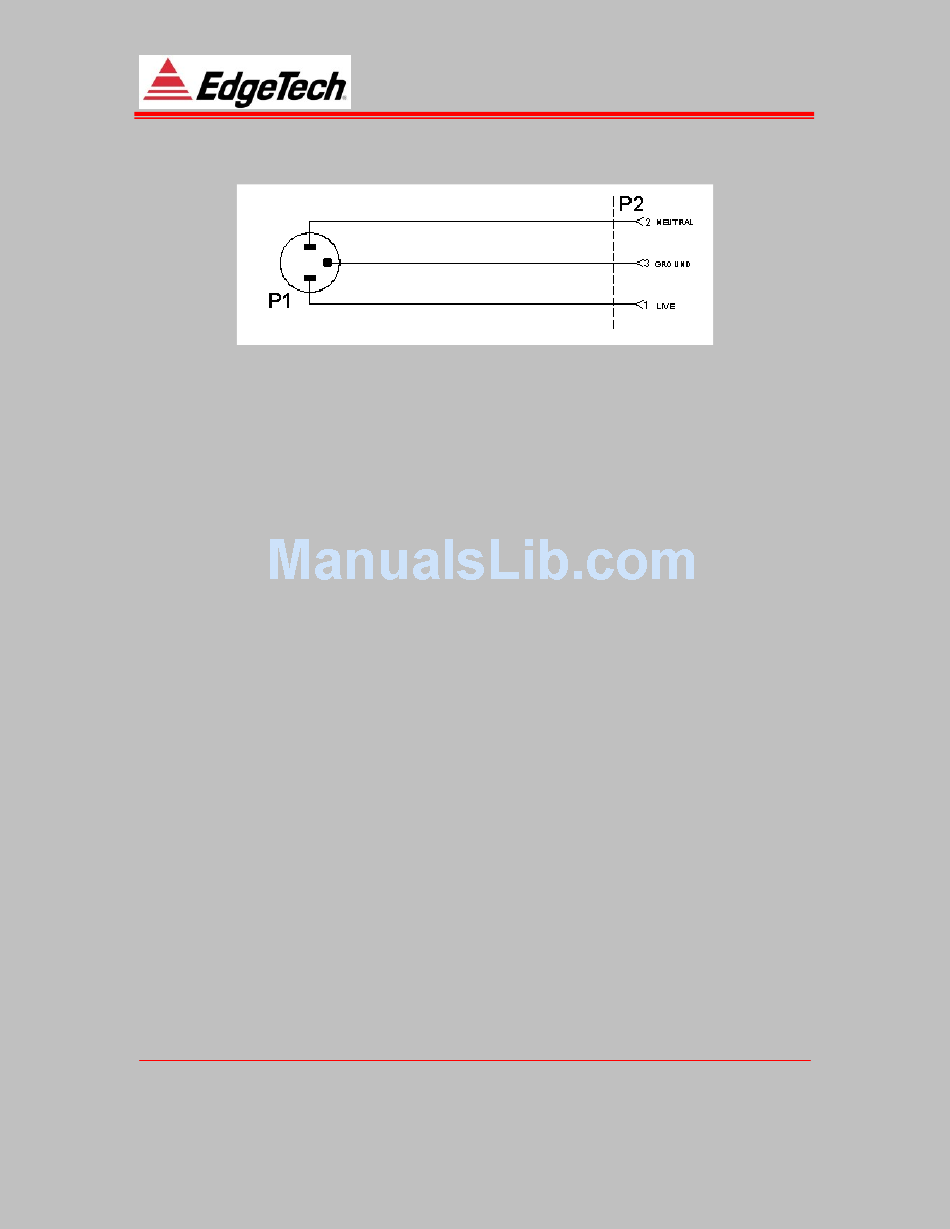

Figure 5-1 AC Power Cable

Rev F
