10. PLAYBACK CONTROL BUTTONS
The playback control buttons only function when reviewing downloaded files.

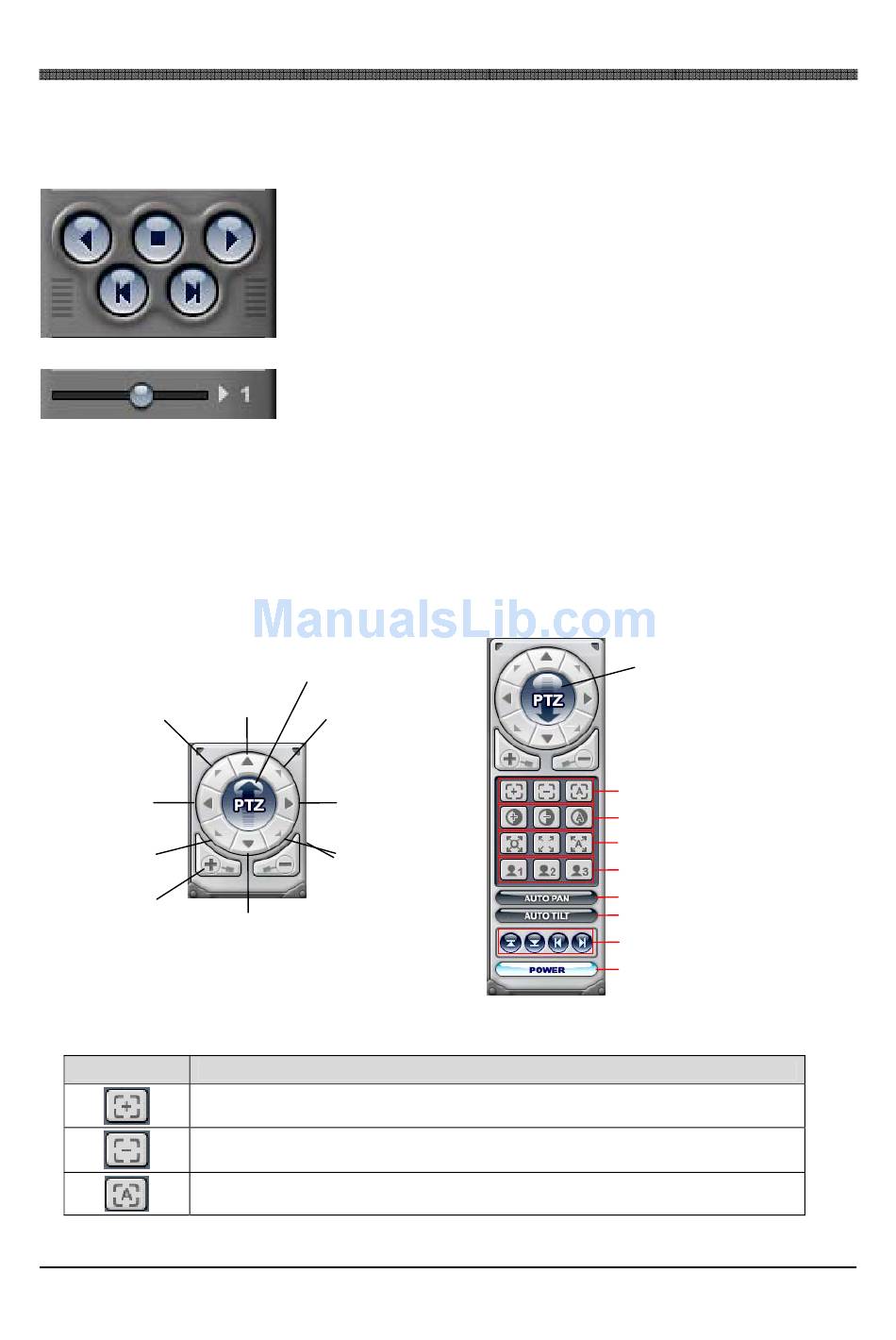

11. PAN / TILT / ZOOM CONTROL

If one or more Pan / Tilt / Zoom cameras are installed on the DVR, they can be individually selected and
controlled using the PTZ control box. To control a channel-specific PTZ camera, simply click on the
channel where the PTZ camera is connected.
The basic functions of the PTZ camera – Pan, Tilt and Zoom can be controlled by the compact control
box below at left. For more functions, click on the PTZ and the box will slide up, revealing additional
features.
Up Left
Pan Left
Down Left
Zoom In
1) Focus Control
Button
From top left in clockwise direction:
forward playback, forward field-by-field and reverse field-by-field.
The bar controls the playback speed. Slide the bar to fast forward
at 2X, 4X and 8X. Slide the bar to the middle to pause playback.
Slide the bar to the left to fast rewind at 2X, 4X and 8X.
Switch to Full Interface
Tilt Up
Up Right
Pan Right
Down Right
Tilt Down
Zoom Out
Function
Focus Far
Focus Near
Auto Focus
86
reverse playback, stop,
Switch to Compact Interface
1
2
3
4
5
6
7
8
DV TURBO SERIES DVR
