13. HEALTH

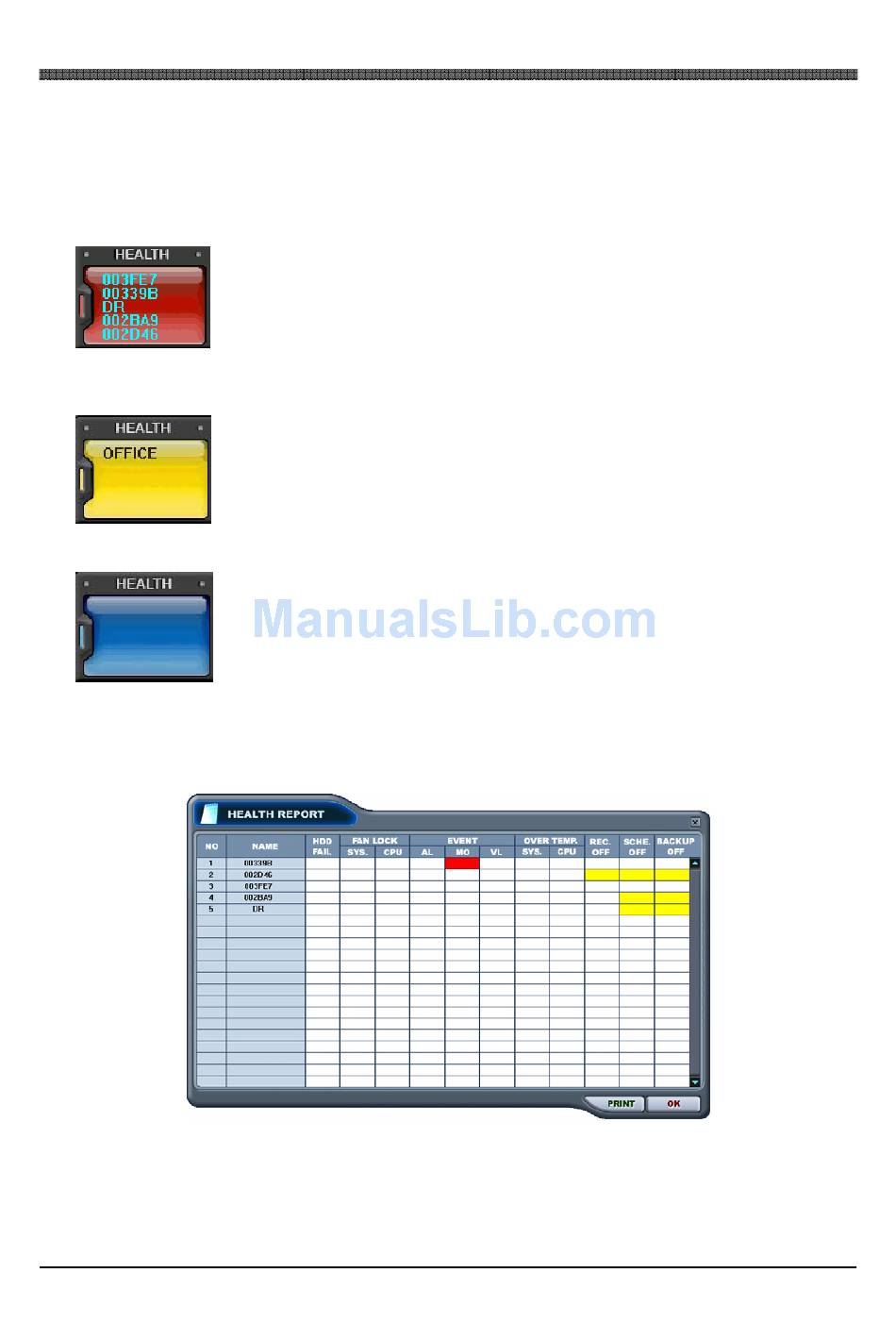

Displays the name of the last five DVRs with an event or a problem. The color will change appropriately
based on the event or problems reported from the DVRs.
Warning colors.
RED
YELLOW
BLUE
Health report
Health report can be accessed at any time by double-clicking on the warning led. Health report allows a
quick glance of all DVRs' status. Maximum of 300 DVRs' status can be displayed simultaneously.
When the health report window is opened, several blocks will be lit or blinking depending on the status of
the DVR. Please refer to the following chart for the definition:
The color changes to red when critical functions of the DVR is interrupted
or has failed:
power failure, fan lock/recovery, system failure/recovery and HDD
failure/recovery.
The color changes to yellow when recording and alarm related events
occur: video loss, video loss recovery, alarm trigger, motion detection,
recording stopped, schedule off and backup stopped.
The color remains blue as long as the DVRs are functioning within the
normal parameters.
following functions: recording started, backup started and schedule on.
① ② ③ ④
connection failure, connection timed out, disconnection,
It will display the DVR's set name only with the
⑤ ⑥ ⑦ ⑧ ⑨
88
⑩ ⑪ ⑫ ⑬
