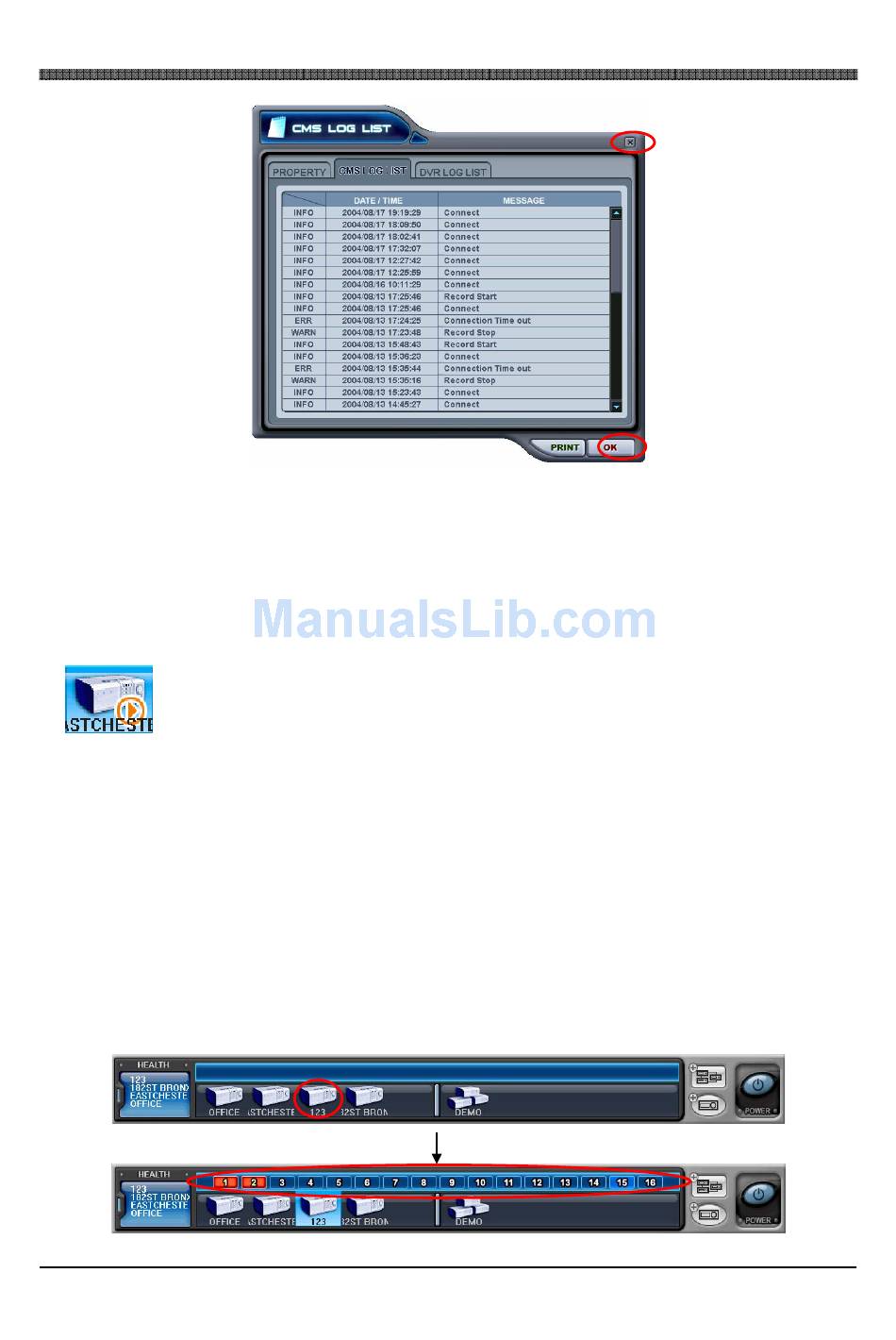

There are two ways of methods of exiting the CMS log list after review:
①
Click on the X (close) at the upper right corner of the screen to exit the CMS log list while maintaining
the icon status.
②
Click on OK at the lower right corner of the screen to exit the CMS log and to clear the icon status.
5) Live Monitoring

15. VIRTUAL DVR WINDOW

Virtual DVR is not an actual DVR, but a combination, or a group of several DVRs already listed under the
DVR window. Under one Virtual DVR set, up to 64 DVRs can be added, pulling one camera from each
DVR to be displayed. The Virtual DVR behaves in the same way a DVR would, except for the warning
notifications.

16. CAMERA STATUS BAR

In addition to the Health Status Report and supplementary information from the DVR icons in DVR
Window, the Camera Status Bar displays the status of individual cameras. The cameras are displayed
according to the channel
When the CMS is in live mode for either an individual DVR or for a Virtual DVR, the camera status will be
displayed for any DVR.
When the DVR is selected to be monitored live, the DVR icon is highlighted and
will display playback icon.
②
91
①
DV TURBO SERIES DVR
