DIGITAL VIDEO RECORDER LAYOUT

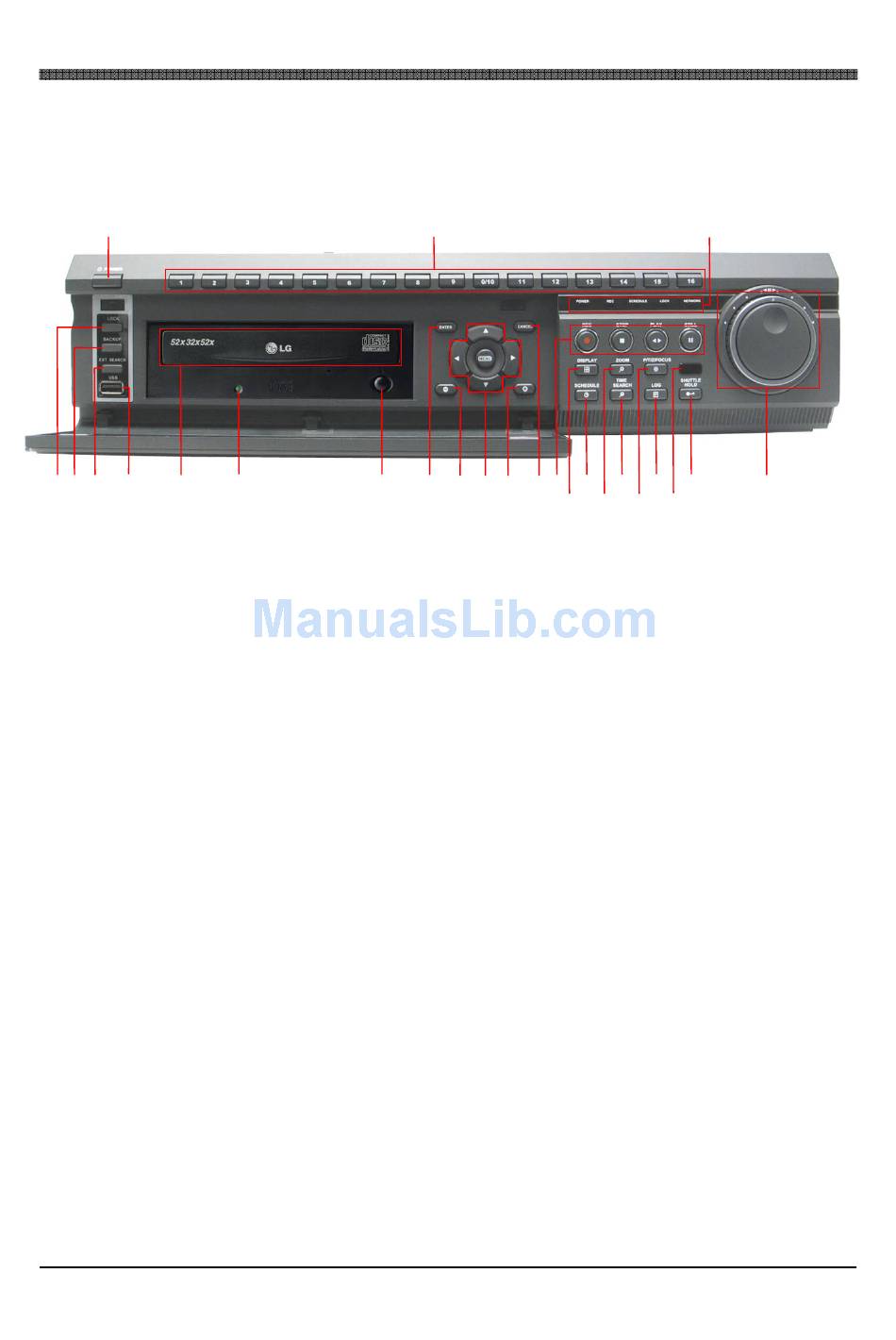

1. FRONT PANEL LAYOUT

1
4 5 6 7 8
1. POWER BUTTON
This button turns the unit on or off.
2. NUMERIC BUTTONS 1 ~16
These buttons have a number of functions to enter data and to make selections. They are used to enter
numerical values when prompted for the password, to make channel/camera selection, to choose the day
in schedule option, and to enter alphabets to label cameras.
3. STATUS INDICATOR
Five LEDs display the status of the Digital Video Recorder. From the left, Power (red), Recording (red),
Scheduled Recording (green), Lock (green) and Network (green).
4. LOCK
This button locks all buttons on the Digital Video Recorder along with the remote controller. The LOCK
LED light is turned on when this feature is activated. To unlock, press the lock button again and enter the
password when prompted.
5. BACKUP
This button allows backing up onto a blank CD, blank DVD, or external hard drive and memory stick.
6. EXTERNAL SEARCH
This button allows searching for data from the external devices connected through the USB ports and
Built in CD-RW.
7. USB 2.0 PORT
The USB port is to connect external backup devices such as CD-RW, DVD-RW, external hard disk drive
and flash memory stick.
8. CD-ROM
The tray to insert the blank media for backup or recorded media for playback.
9. READ / WRITE STATUS INDICATOR
This LED lights up whenever the media inserted is accessed or written to.
9 10
2
11 12 13 14 15 16 18
17
12
3
20 22 24
25
19 21 23
DV TURBO SERIES DVR
