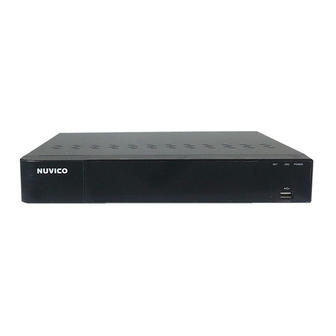

Nuvico EV2-400 Instruction Manual
  1. Manuals
  2. Brands
  3. Nuvico Manuals
  4. DVR
  5. EV2-400
  6. Instruction manual

Nuvico EV2-400 Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EV2-400 and is the answer not in the manual?

Questions and answers

Related Manuals for Nuvico EV2-400

Summary of Contents for Nuvico EV2-400

  • Page 2: Table Of Contents

    Contents Contents Verification and Checklists ..........4 Features ....................4 Caution ....................4 Important Safety Instructions............... 5 Important Notice..................6 Warning ....................7 Before You ..................... 8 Standard Approvals ................8 I. Controls ....................9 1. Front Panel ........................ 9 2.
  • Page 3 2. CAMERA ........................27 2.1. Video Adjustment ...................... 27 2.3. Privacy Mask ......................29 2.4. PTZ Setup ......................... 30 2.5. Camera Title ......................31 3. RECORD ........................32 3.1. Record General ......................32 3.2. Resolution & Recording speed Setting ............... 33 3.3. Continues /Normal Recording ..................34 3.4.
  • Page 4 1. P.T.Z. Menu........................65 2. Preset & Tour ......................67 3. Custom Functions ....................69 4. Auto Pan / Auto Tilt / Power ..................69 VIII. PLAYBACK / SEARCH ..............70 1. Playback ........................70 2. Time Search ......................70 2.1. Multi Channel Playback ....................70 2.2.

  • Page 5: Contents Verification And Checklists

    2. Power supply 3. Mouse 4. Software CD 5. Quick Setup Guide If any of these materials are missing, please contact the vendor or NUVICO customer help desk immediately at (866) 523-1700. Features • 4, 8, & 16 channels • Embedded Linux Operating System •...

  • Page 6: Important Safety Instructions

    Important Safety Instructions Read these operating instructions carefully before using the unit. Follow all the safety instructions listed below. Keep these operating instructions handy for future reference. Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth.

  • Page 7: Important Notice

    Important Notice 1. This equipment is indoor use and all the communication wiring are limited to inside of the building or similar texts. 2. "Rack Mount Instructions - The following or similar rack-mount instructions are included with the installation instructions: A) Elevated Operating Ambient - If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack environment may be greater than room ambient.

  • Page 8: Warning

    Warning Battery It is essential that when changing the battery in the unit, the replacement battery must be of the same type, otherwise there may be a possibility of an explosion. The following are the specifications of the battery you are using now. •...

  • Page 9: Before You

    NUVICO retains the copyright on this manual. NUVICO retains the copyright on this manual. • This manual cannot be copied without NUVICO’s prior written approval. This manual cannot be copied without NUVICO’s prior written approval. • We are not liable for any or all losses to the product incurred by your use of non...

  • Page 10: Controls

    I. Controls 1. Front Panel 1) USB port : USB port allows light backups of video files to devices 2) Remote control signal receiver : IR sensor to receive control signal from remote controller. Blocking the receiver port may result in malfunctioning use of the remote control.

  • Page 11: Rear Panel Connectors

    2. Rear Panel Connectors <4ch> <8ch> <16ch> 1) AUDIO IN : RCA Input (1~4 ch) 2) AUDIO OUT : RCA Onput 1CH 3) VIDEO IN : BNC Input (Camera 1~4, 1~8, 1~16) 4) HDMI : HDMI monitor out 5) VGA : VGA monitor out 6) USB : USB Memory or Mouse 7) LAN : RJ-45 Ethernet Port 8) SENSOR IN : Alarm input (S1~S4) / RELAY : Alarm relay out (R1, R2)

  • Page 12: Remote Controller (Optional)

    3. Remote Controller (Optional) ② Power ① DVR ID ③ System Configuration Buttons ④ Navigation / OK ⑤ Playback Controls ⑥ Channel Buttons DVR ID: Set the proper DVR System ID through which to operate. Press the ID button, and then press the number button within two seconds to select the system ID of the DVR.

  • Page 13: Mouse Control

    4. Mouse Control This DVR can be controlled by the mouse. Connect the mouse to the USB port before use. 1) Left-Button -Double Click on any channel to enlarge to full screen while in a split-screen display mode. Double click again to return. Select the menu option while navigating through various menu options.

  • Page 14: Installation & Connections

    II. INSTALLATION & CONNECTIONS 1. Camera, Monitor, Audio, Alarm sensor and Power cord EV2 Series DVR...

  • Page 15: Quick Start Page

    III. QUICK START PAGE QUICK START PAGE ADMIN and the default password is “ and the default password is “000000”. (6 zeros) (6 zeros) The Default User name is name is “admin” and password is “000000”. (6 zeros) (6 zeros) EV2 Series DVR...

  • Page 16: Main Menu

    Main Menu SETUP TIME SEARCH TIME SEARCH BACKUP EXT. SEARCH DISPLAY P.T.Z PLAYBACK PLAYBACK POWER ZOOM SYSTEM INFO EV2 Series DVR...
  • Page 17 Time & Date Setting When the DVR is powered on for the very first time, the time and date are set as default to January 1, 2000 Saturday 00:00:00. Before any other operation of the Digital Video Recorder, it is important to setup the time and the date. Please refer to page 63 for setting the time and the date on the DVR.

  • Page 18: Live Viewing

    IV. LIVE VIEWING 1. Display Overview 1.1. Recording Mode Background color of channel number will be different based on the recording status. 1) Red - Event (Motion/Alarm) Recording 2) Yellow – Continuous Recording 3) Black - Not Recording (1) (2) (3) 1.2.
  • Page 19 1.3. Status Bar (1) (2) (3) (4) (5)(6)(7) (1) Indicate Recording Recording Status. Red is recording. Click this ICON to toggle Record ecording. Click this ICON to toggle Record Start and Stop. (2) Indicate Playback Playback Status. Green is Playback. Click this ICON to toggle Playback .

  • Page 20: Multi-Screen Display And Sequencing

    2. Multi-screen Display and Sequencing 2.1. Screen Display. Select any camera for Full screen display by pressing the Number button of the desired camera. 2.2. Multi-screen Display and Switch Sequencing Display. 1) Press [DISPLAY] buttons to activate the multi-screen display. It is changed the order as shown below among your choice of SPLIT MODE.

  • Page 21: Quick Button For Multi Screen Display

    3. Quick button for multi screen Display. 3.1. Quick multi split mode change Press F1 button on the remote controller + <Number> For example, press F1 button then number 8. The eight channel view mode will be displayed. <Note> 6,4,8,10,13 split mode must be checked on <Spit mode> to use this function.

  • Page 22: Zooming

    4. Zooming During live view mode, it is possible to zoom into a section of the screen to get a close-up view of the screen. 1. To activate the digital zoom, select the full screen display of the camera you wish to zoom.

  • Page 23: Operation

    V. OPERATION 1. LOG IN/OUT. You must log on to the DVR with valid password to operate the DVR. By default, it comes with one login account; ADMIN and the default password is “000000”. <Note > if you are logging on for the first time, the system does not prompt you to change the default password.

  • Page 24: Navigation Menu

    2. NAVIGATION MENU MENU 1. Log on the DVR at admin level or user with configure level. Log on the DVR at admin level or user with configure level. * User with configure feature is limited to access [DISK and System Menu]. with configure feature is limited to access [DISK and System Menu].

  • Page 25: Setup

    VI. SETUP 1. DISPLAY 1.1. GENERAL 1. The menus are displayed with options on the left-hand column and settings in the right hand column. A cursor (highlighted menu) can be moved using the Direction buttons [ 2. Change below options using [DEC/INC] buttons. ITEM ADJUSTMENT Select “Show”...

  • Page 26: Switch Setup (Monitor Configure)

    1.2. SWITCH Setup (Monitor Configure) 1.2. SWITCH Setup (Monitor Configure) 1. The menus are displayed with options on the left The menus are displayed with options on the left-hand column and settings in the right hand column and settings in the right hand column.

  • Page 27: Event

    4) SPLIT MODE : Select desired sequence mode to switching. <note>This function is limited to use on SPOT Monitor in this model. 5) USE CHANNEL: Select the cameras to be inclcuded or excluded from the automatic switching. 3. Select SAVE to save changes and press [ENTER] button to exit the menu. Exit the menu without making changes, press [CANCEL] button.

  • Page 28: Camera

    2. CAMERA Configure the properties of cameras such as Video Adjustment (Brightness, Contrast, Color, and Saturation) , Motion detection, PTZ Selection. 1. Press Left/Right buttons [ ] or number button to select desired camera 2. Camera Channel option is highlighted and the camera settings are displayed. 3.
  • Page 29 2.2. Motion Detection To Configure Motion Area: Select Camera number button to configure the desire camera. 1. Motion Level : The sensitivity settings are : 1: Low sensitivity~ Level 20: High sensitivity. default level 2. Motion Grid : The area property is highlighted and motion detection can now be observed in the view window.

  • Page 30: Privacy Mask

    2.3. Privacy Mask Privacy Mask allows you to mask certain areas in the surveillance video for Privacy Mask allows you to mask certain areas in the surveillance video for Privacy Mask allows you to mask certain areas in the surveillance video for privacy protection under related laws, policies and regulations related laws, policies and regulations.

  • Page 31: Ptz Setup

    2.4. PTZ Setup PTZ device are connected to the RS-485 ports located on the back of the unit. Multiple PTZ cameras are connected by daisy-chaining the camera connection. This DVR allows you to address and control multiple PTZ cameras individually. To Configure PTZ Setup: 1) Select Camera number button to configure the desired camera.

  • Page 32: Camera Title

    2.5. Camera Title Allows you to create a unique name for each camera. The camera title has the Following guidelines: - Characters: A to Z, 0 to 9. Special characters are supported by network. - Length: up to 12 including space. To create a camera title, using the virtual keyboard, or pressing appropriate Numeric button on IR Remote or front panel.

  • Page 33: Record

    3. RECORD 3.1. Record General 1. The menus are displayed with options on the left-hand column and settings in the right hand column. A cursor (highlighted menu) can be moved using the Direction buttons [ 2. Change below options using [DEC/INC] buttons. 1) Schedule Use: This enables or disables Night Zone.

  • Page 34: Resolution & Recording Speed Setting

    3.2. Resolution & Recording speed Setting USED FPS MAX FPS MAX FPS USED FPS <NTSC MODE> <PAL MODE> This DVR records each camera individually and then multiplexes them. You can individually set up resolution and recording speed for each channel. 960H stands for NTSC 960 * 480 (PAL 960 * 576), D1 stands for NTSC 720*480(PAL 720*576), Half D1 stands for NTSC 720*240 (PAL 720*288) and CIF for 360*240(PAL 360*288) To make them global record, select desired setting channel then press split button copy to...

  • Page 35: Continues /Normal Recording

    3.3. Continues /Normal Recording The DVR comes with a certain preset settings from the factory. Therefore once the DVR is installed, immediate recording is possible after pressing the record buttons. By default, audio, alarm, motion recording are off. The DVR records video data continuously over 24 hour period. Recording setup is for normal recording.

  • Page 36: Event Recording

    3.4. Event Recording Users may set different event recording parameters on a camera by camera basis. Set the continuous recording as [OFF] and configure the Event recording speed and Quality for each camera. Determine whether Alarm, Motion, Video Loss for EVENT recording on [DAY EVENT] Tap. 1) Alarm Recording One Alarm input can be configured to one channel.
  • Page 37 a. Press [-, +] button to change the value or select options. By mouse, using Wheel. [ ※ ] indicate multiple alarm sources are selected. Please refer to [CAMERA] menu for Motion setup. <Note> There may be cases when the recorder’s built-in motion detection function does not operate properly due to the condition of the input video signal or other factors.

  • Page 38: Continues + Event (Motion/Alarm) Recording

    b. Event Edit Press [ENTER] to edit multiple event. The menus are displayed with options on the left-hand column and settings in the right hand column. A cursor (highlighted menu) can be moved using the Direction buttons [ ] on IR remote or front panel.

  • Page 39: Schedule

    4. SCHEDULE When the schedule is on, users may define their own daytime, night time, as well as specified date settings. A schedule can be used to record selected cameras at different Times, changes record rates, and select whether alarms or event is enabled. By selecting Schedule USE “on”...
  • Page 40 a. Use [-, +] button to change the values. button to change the values. Mode : [Night] [Day] [Day] [No Rec] BEGIN: The time of recording start. BEGIN: The time of recording start. END: The time of recording end. The ending time must not be before the starting END: The time of recording end.

  • Page 41: Holiday Setup

    4.2. Holiday Setup This allows you to create up to 32 holidays. If a holiday schedule occurs on the same date as a weekday schedule, the holiday schedule will override the weekday schedule. 1) A cursor (highlighted menu) can be moved using the Direction buttons [ Select each day to configure, press [ENTER] or clicking by mouse.
  • Page 42 2) Device & Size: This information lists the installed drives and their respective capacities, which is not used currently. 3) Status: a. CD/DVD: CD or DVD is installed for backup usages. b. Unknown: New installed Disk. c. Empty: Formatted but not used in current DVR. d.

  • Page 43: Recording Disk

    ODD(Media) Device CD/DVD CD/DVD±R SATA ±RW Media can be formatted Device can be formatted on a PC using FAT 32, NTFS File system. Media must be formatted on DVR before backing △ △ up or exporting data to the device. <Note1>...

  • Page 44: Smart Status

    3. Status 1) Stable: The HDD is in stable status. : The HDD is in stable status. 2) Sync: Copy Master HDD : Copy Master HDD to the Slave HDD. 3) Re-sync: To force all pending buffered disk writes to the To force all pending buffered disk writes to the NEW installed NEW installed disk.

  • Page 45: Network

    6. NETWORK The static service consists of an IP address that remains constant for the duration of the contract of the internet service, whereas the dynamic service consists of an IP address that frequently changes every time a new connection is made through the provided modem, or recurrently in a given period of time.

  • Page 46: General

    6.2. GENERAL 1. Access Port: Select “0001 ~ 9999” Enter the port number that the client will use to communicate with the DVR over the internet. The default port is 7000. It is recommended to use over 1,000. 2. Bandwidth: Select the network bandwidth to limit the amount of network resources allocated to client connection.
  • Page 47 To allow or deny remote access requires you to enter a range of IP addresses as an IP address and mask. Host List will be activated when you select deny or allowed 8. Auto Port FWD: Select the ADD button to automatically open ports for router communication with UPNP compliance.

  • Page 48: Email

    6.3. EMAIL This DVR allows you to specify the events that generate notification. Sends e-mail notification if an event occurs such as alarm or motion is detected and so forth. The mail server can use either the DVR mail server or your existing e-mail settings. The menus are displayed with options on the left-hand column and settings in the right hand column.

  • Page 49: Smtp

    6) Log: This DVR will mail Log list at selected intervals. 6. Attach Picture: While you are in recording mode, picture can be attached for mail. E-mail Address: 5 mail addresses can be configured for mail notification. 6.4. SMTP This menu will be activated when you check <SMPT> on EMAIL. The following settings are only needed if you are NOT using the DVR mail server.

  • Page 50: Ddns (Dynamic Dns)

    6.5. DDNS (Dynamic DNS) This DVR offers free dynamic DNS update. It keeps track of your changing IP address. It’s easiest to use. The menus are displayed with options on the left-hand column and settings in the right hand column. A cursor (highlighted menu) can be moved using the Direction buttons [ 1.
  • Page 51 2) DYNDNS: To use your own domain name service or “dyndns.com” 1. The following settings are only needed if you are NOT using the default. 1) Domain Name: Enter the name you set for the DDNS web configuration. 2) User ID: Enter your user ID. 3) Password: Enter your password.

  • Page 52: Router & Port Forwarding

    6.6 Router & Port Forwarding The majority of any network will often consist of a single IP address which shares the internet access through a router. This IP address may be any external (public) static IP address or any dynamic IP address issued by the Internet Service Provider. The purpose of a router is to enable multiple personal computers and any other devices that require internet connection to access the internet simultaneously.
  • Page 53 1) Description of Location. A. LAN: Connect by Local IP. If you are connection from within your network, you only need to enter the IP address of the system into the S/W (ex. 192.168.0.50) B. WAN: Connect by DDNS. If you are connecting from outside your network, use the DDNS to configure the S/W.

  • Page 54: Device

    7. DEVICE 7.1. GENERAL This DVR support 1 Audio, Alarm input and 1 relay output1 and support HDMI output. 1. The menus are displayed with options on the left-hand column and settings in the right hand column. A cursor (highlighted menu) can be moved using the Direction buttons 1) DISPLAY : Please decide to Output resolution It automatically detects and set correct video resolution on the monitor in default.

  • Page 55: Alarm

    7.2. ALARM This DVR support 4 Alarm inputs and 1 relay output. One Alarm input can be configured to one relay output. One relay output can be assigned to multiple alarm inputs. Use Left/Right buttons [ ] to select on TAP menu “ALARM” The menus are displayed with options on the left-hand column and settings in the right hand column.
  • Page 56 - Change below options using [DEC/INC] buttons on IR remote or Clicking by mouse. - System menu contains below HDD Disk Fail Record System Fail Temperature warning. Fan Lock Warning Voltage Warning Low RTC Battery Warning External Device Event Network Link Disconnected Admin Login Power Recovery Disk Full...

  • Page 57: Ptz Event

    7.3. PTZ EVENT When such as alarm trigger, motion detected or video loss occurs, this DVR sends preset command to PTZ camera. PTZ option must be enabled and a protocol must be assigned to the camera channel. ④ ① ② ③...

  • Page 58: System

    8. SYSTEM 8.1. GENERAL Control ID: Each DVR that is preconfigured with the control ID is enabled to respond to and be operated by the remote control. - To select the DVR to be controlled with the remote controller, press and hold the DVR ID button.

  • Page 59: Time

    8.2. TIME Make sure to set up your Date and Time prior to start Recording. 1. Use Left/Right buttons [ ] to select on TAP menu “Time”. The menus are displayed with options on the left-hand column and settings in the right hand column. A cursor (highlighted menu) can be moved using the Direction buttons [ ] .

  • Page 60: Account

    8.3. ACCOUNT Use Left/Right buttons [ ] to select on TAP menu “Account”. The menus are displayed with options on the left-hand column and settings in the right hand column. A cursor (highlighted menu) can be moved using the Direction buttons [ ].

  • Page 61: Update

    a. Password Length: up to 14characters. b. Characters: A to Z, numerals 0 to 9. 4) Channel Allow each user for different live monitoring. 5) Password Enter the 6 numbers for the new password, and then re-enter the same password under COMFIRM section.

  • Page 62: Advanced

    5. Using direction button to move [Start] button then press [+] button to start update While it’s updating, ”in progress” message is displayed. 6. After the update process is complete, “Success” message is displayed. Press [+] button to restart. The DVR issues a single beep. NOTE1: Do not switch OFF or PRESS any key during the update process.
  • Page 63 SUMMARY: It contains brief model information, Mac Address, installed HDD status and QR code for easy connection. DISK: Contains all DISK information including internal and USB memory. NETWORK: Shows IP address , USER and service of NET user. EV2 Series DVR...

  • Page 64: Pan/Tilt Zoom Control

    VII. PAN/TILT ZOOM CONTROL PAN/TILT ZOOM CONTROL PTZ control is available for supported third for supported third-party dome cameras. The PTZ option must be . The PTZ option must be configured for each camera channel. For PTZ for each camera channel. For PTZ setup, refer to Camera Menu> refer to Camera Menu>...
  • Page 65 2.1 How to control PTZ by mouse How to control PTZ by mouse User can control PTZ camera by mouse controller. PTZ camera by mouse controller. It follows mouse cursor instead of using direction button to move. instead of using direction button to move. 1) Press PTZ button on the virtual remote controller.

  • Page 66: Preset & Tour

    5) To escape from PTZ mode, press ESC button o To escape from PTZ mode, press ESC button on PTZ controller controller. Or click (right button) the outside of control box to have button) the outside of control box to have the virtual remote control controller.
  • Page 67 2.1 Tour Group A preset Tour Group allows a camera to move through a programmed sequence of PTZ presets. ① ② ③ 1) Communication settings. Configure appropriate model and then enter the corresponding baud rate, PTZ ID (address). Please refer to the PTZ manufacture’s instruction manual for proper jumper settings to match the protocols to the DVR.

  • Page 68: Custom Functions

    3. Custom Functions Button Function PTZ custom function 1; DISPLAY on remote controller PTZ custom function 2; ZOOM on remote controller PTZ custom function 3; P/T/Z on remote controller 4. Auto Pan / Auto Tilt / Power Button Function Auto Pan; STOP on remote controller Auto Tilt;...

  • Page 69: Playback / Search

    VIII. PLAYBACK / SEARCH The DVR supports 2 playback mode; playback and Search. The DVR offers a variety of search functions that enables you to quickly and efficiently locate and review a specific period from the database. It supports three different search modes: Date/Time, Event, Event area, and Log search.

  • Page 70: Preview Search (Single Channel Playback)

    2.2. Preview Search (Single Channel Playback) The DVR allows you to quickly review a single channel of playback over a period of Day, Hour, and Minute. 1. Press the [Time Search] button to access the time search table. Day will be displayed.

  • Page 71: Event Record Search

    2.3. Event Record Search Event Record search feature allows you to search for recorded video by event. The time search table displays time events. As a default, TIME SEARCH CHART displays CONTINUOUS recording (Yellow) and EVENT recording (Red). TIME SEARCH CHART will display the different outcome according to the SEARCH MODE below.

  • Page 72: Event Source Search

    2.4. Event Source Search Event source search feature allows you to search the recording data in events of ALRAM, MOTION and VLOSS triggered on DVR previously. 1. Press [+/-] button to select “event source” in searh mode. And select event source (Alarm, Motion, or Video loss) which you want to search. 1) ALARAM : Select alarm input 1~4.
  • Page 73 Example) 1. If you select MOTION 1 and press MENU button on the remote controller, TIME SEARCH CHART will display the recording data in red at the time of motion triggered on channel #1. The other recording data will turn in yellow. So users can easily search the recording data and playback to see what happened when motion was triggered on channel #1.

  • Page 74: Motion Area Search (Single Channel Playback)

    2.5 Motion Area Search (Single Channel Playback) The DVR searches for recorded video then matches the search area defined by selected cell. 1. Select “MOTION AREA” (Single channel playback) to search the recording data that has motion in a specific area in a certain channel. 2.

  • Page 75: Go To Search

    3. Go to Search 1. Press [Time Search] button for 2 seconds. Then [Time Input] menu will pop up. 2. Set the date and time you wish to search. 3. Press [ENTER] to start search. 4. Log List Search The logs can be used to search and review directly to a point in time of the recorded data. Alarm, motion, video loss and system related logs can be searched and played back directly from the time of the incident.
  • Page 76 MENU TAP CONDITION It has a list of all the events since the initial power on procedure of DVR SYSTEM It shows All System List. NETWORK It shows NETWORK List. EVENT It shows All Event except for Alarm, Motion, Video Loss and System. VIDEO LOSS It shows Video Loss List.

  • Page 77: Backup

    IX. BACKUP 1. Back Up 1.1 External DVD- R/W External USB-HDD, CD/DVD-RW is recognized within 10 seconds after plug in USB connection cable to USB port in DVR. 1) Plug in USB connector into the USB connection port on the front panel. 2) Press [BACKUP] button to display the backup menu.

  • Page 78: External Usb Memory Stick

    3. If there is not enough space on the media the NVR automatically ejects the disk when it’s full and resume the process once new media is inserted into the drive. * The CD Playback software will simply “auto- run” and does not require any software Channel Select FF/FR Watermark...

  • Page 79: Back Up Range Setup

    To read USB backup HDD in Window, format to FAT32 or NTFS. To backup as an AVI File, set the file format to AVI using the [+] button. 1.3 Back up Range Setup ►] button to set the end. Press the [◄ ] button to set backup start time and press the [ ▌...

  • Page 80: Backup (Log)

    ITEM ADJUSTMENT Server Select Highlight FTP Server and then press numeric buttons to define an FTP server. Port Define the port that the FTP server will communicate through. Enter the user ID of FTP Server. User ID (It is recognized as a small letter, even it’s displayed as a Capital Letter) Enter the password.
  • Page 81 ３. Press “backup” button to save log list to USB memory stick. 1) Use [-, +] button to select device. 2) Select type of log list among ALL, SYSTEM, NETWORK, EVENT and VLOSS. Select the time range starting time and ending time. 4) Press [+] button to start BACKUP.
  • Page 82 WEEE Symbol Information Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates, that it should not be disposed with other household wastes at the end of its working life.
  • Page 83 Appendix 1: Time Zone Chart Standard Time Australia DST Time Zone GMT+10:00 GMT+00:00 Standard Standard Russia DST European DST GMT+01:00 Australia DST Standard GMT+11:00 European DST Standard Russia DST Namibia DST GMT+12:00 GMT+02:00 Standard Standard New Zealand DST Israel DST GMT+13:00 Standard European DST...
  • Page 84 This page intentionally left blank.
  • Page 85 This page intentionally left blank.

This manual is also suitable for:
