3. PAN / TILT / ZOOM CONTROL

The DVR comes with an extensive list of PTZ cameras. Please read the PTZ manufacturer's instruction
manual and understand its settings fully prior to proceeding to any attempts to connect and control the
PTZ camera through the DVR. Please refer to the PTZ Channel and PTZ Model Select under DISPLAY
setup on page 54.
When the P/T/Z/FOCUS button is pressed, the display automatically changes to the single channel view
mode. Press the appropriate channel number to control the PTZ camera. Some PTZ control functions
can only be accessed using the remote controller, so please have the remote controller handy when
using the PTZ control interface.
Switch to Full Interface (MENU)
Help Screen
(ENTER)
Pan Left
Zoom In

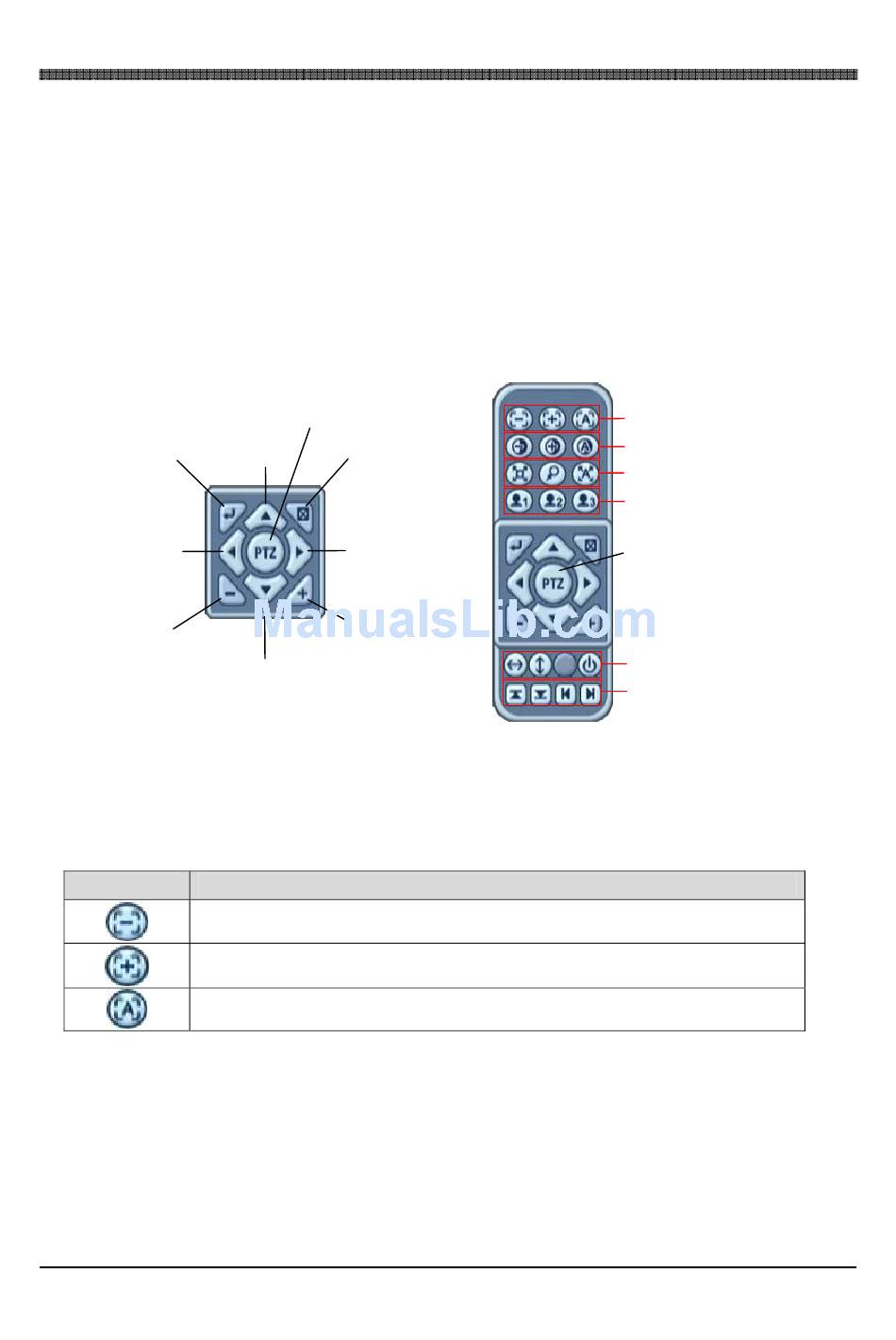

The layout of the PTZ interface conforms to the layout of the front of the DVR or the remote controller.
Menu button is the guide anchor position for all other buttons. When in PTZ interface mode, all buttons
used for the PTZ related operation.

3.1 Focus Control

Button
Exit (CANCEL)
Tilt Up
Pan Right
Zoom Out
Tilt Down
Focus Out; F1 on remote controller
Focus In; F2 on remote controller
Auto Focus; F3 on remote controller
Function
41
1
2
3
4
Switch to Compact Interface
5
6
