Helpful Documents - Analog Devices AD9249 User Manual

Analog-to-digital converter

Table of Contents

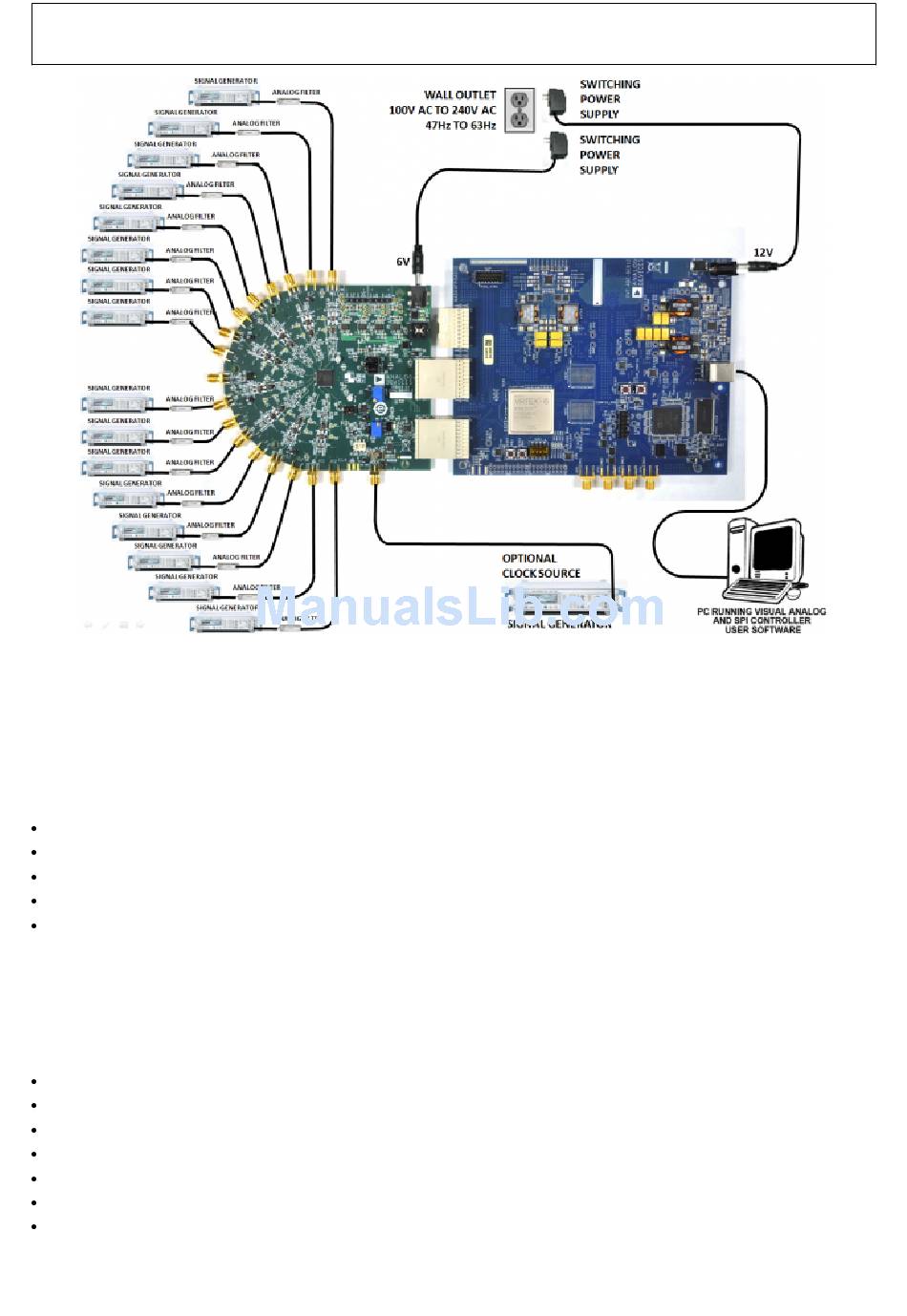

Figure 1. Evaluation Board

Features

SPI interface for setup and control

External, on-board oscillator

On-board LDO regulator or switching regulator, needing a single external 6V, 2A dc supply

ADC VREF configurable for ADC-internal reference, on-board reference, off-board reference

VisualAnalog® and SPIController software interfaces

Helpful Documents

AD9249

data sheet

High speed ADC FIFO evaluation kit (HSC-ADC-EVALDZ)

HSC-ADC-EVALDZ Wiki Guide

AN-905 Application

AN-878 Application

AN-877 Application

AN-835 Application

Connection—AD9249-65EBZ

http://wiki.analog.com/resources/eval/hsc-adc-evald

Note, VisualAnalog Converter Evaluation Tool Version 1.0 User Manual

Note, High Speed ADC SPI Control Software

Note, Interfacing to High Speed ADCs via SPI

Note, Understanding ADC Testing and Evaluation

Rev 13 Nov 2013 01:51 | Page 2

(on Left) and

HSC-ADC-EVALDZ

(on Right)
