Connector/Control Description
7
Kensington Lock
Connector
8
Power Connector
9
USB Ports (4)
10
Service Port
11
Ethernet Port

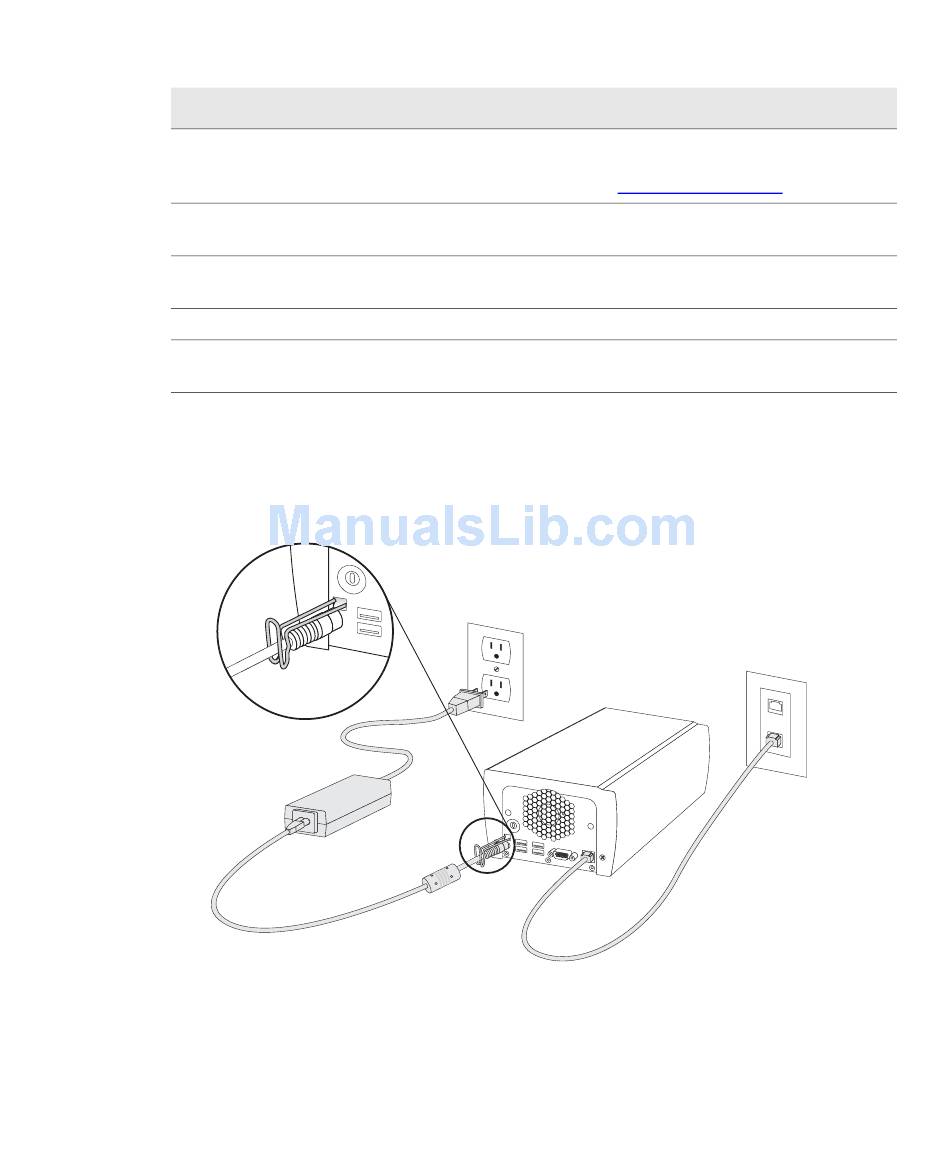

Step 1: Connect Your Server to Your Network and to a
Power Source
You can connect your Snap Server to a 10BaseT, 100BaseTX, or 1000BaseT network.
Connect the server to your network using the Ethernet cable provided.
1
Insert the power supply retainer clip into the divets above the power connector,
2
as illustrated in the figure above.

Step 1: Connect Your Server to Your Network and to a Power Source

The Kensington Lock slot can be used to secure a Kensington lock
on your Snap Server. For more information about Kensington locks,
see the Kensington Web site at www.kensington.com.
Connect your external power supply to the Power Connector. Then
connect the power cord to an AC power source.
Four USB ports are available for connecting an APC USB UPS, a
USB printer, and a USB tape drive.
The service port is for Adaptec technical support use only.
Connect the included Ethernet cable to the Ethernet port and then
to an Ethernet outlet.
Chapter 1 Installing the Snap Server 7
