Replacing the Front Bezel
These instructions apply to multiple models; illustrations may vary slightly.
Note

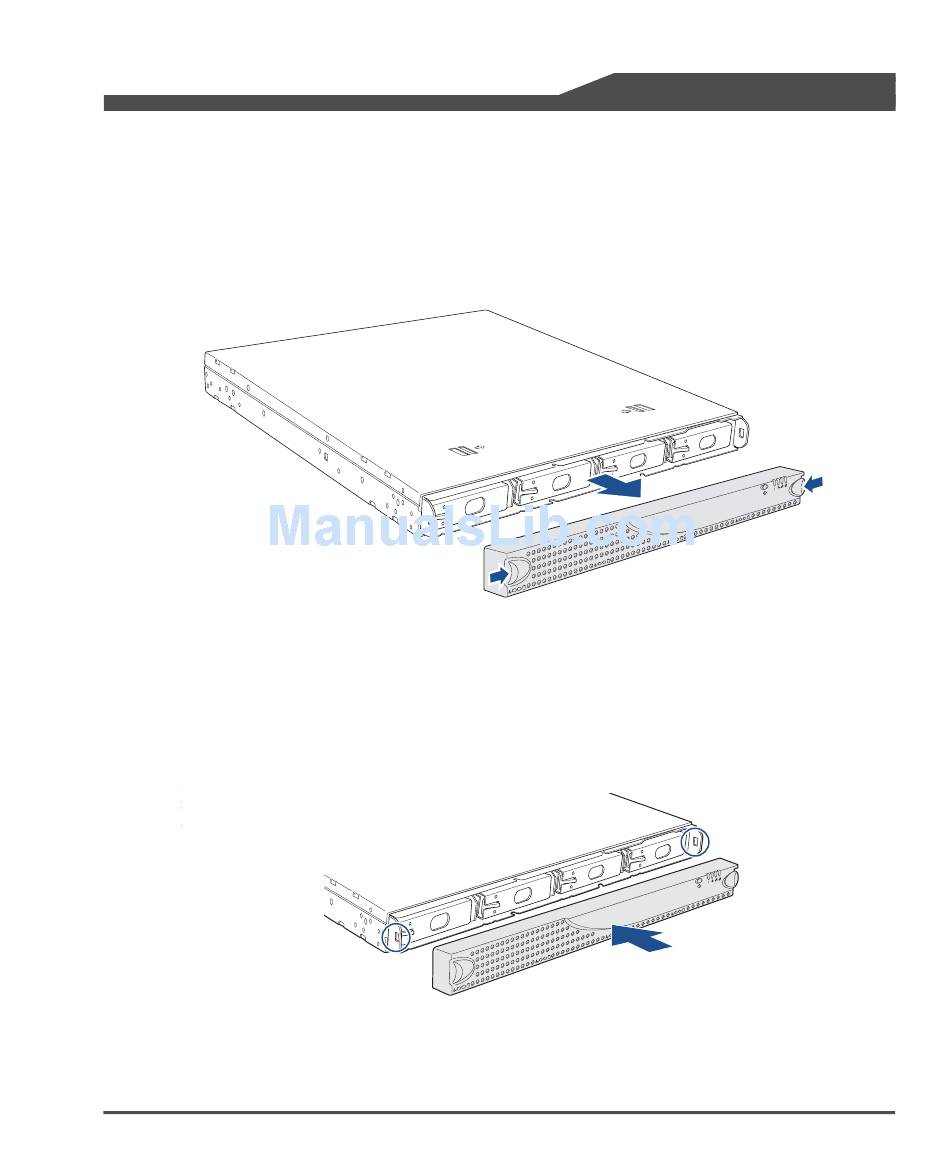

Removing the Front Bezel
Press the latches, one on each side of the front bezel.
1
Still holding the latches in the release position, pull the bezel away from the
2
chassis.
Replacing the Front Bezel
Position the new bezel so the tabs line up to slide under the top edge of the cover.
1
Press firmly to attach the bezel. A muted click indicates the latches are locked.
2
Field Service Documentation
Copyright © 2007, Adaptec, Inc. All rights reserved. Information in this document is subject to change without notice and does not represent
a commitment on the part of Adaptec or any of its subsidiaries.
Snap Server 4200/4500
