Summary of Contents for Adaptec 5325302055

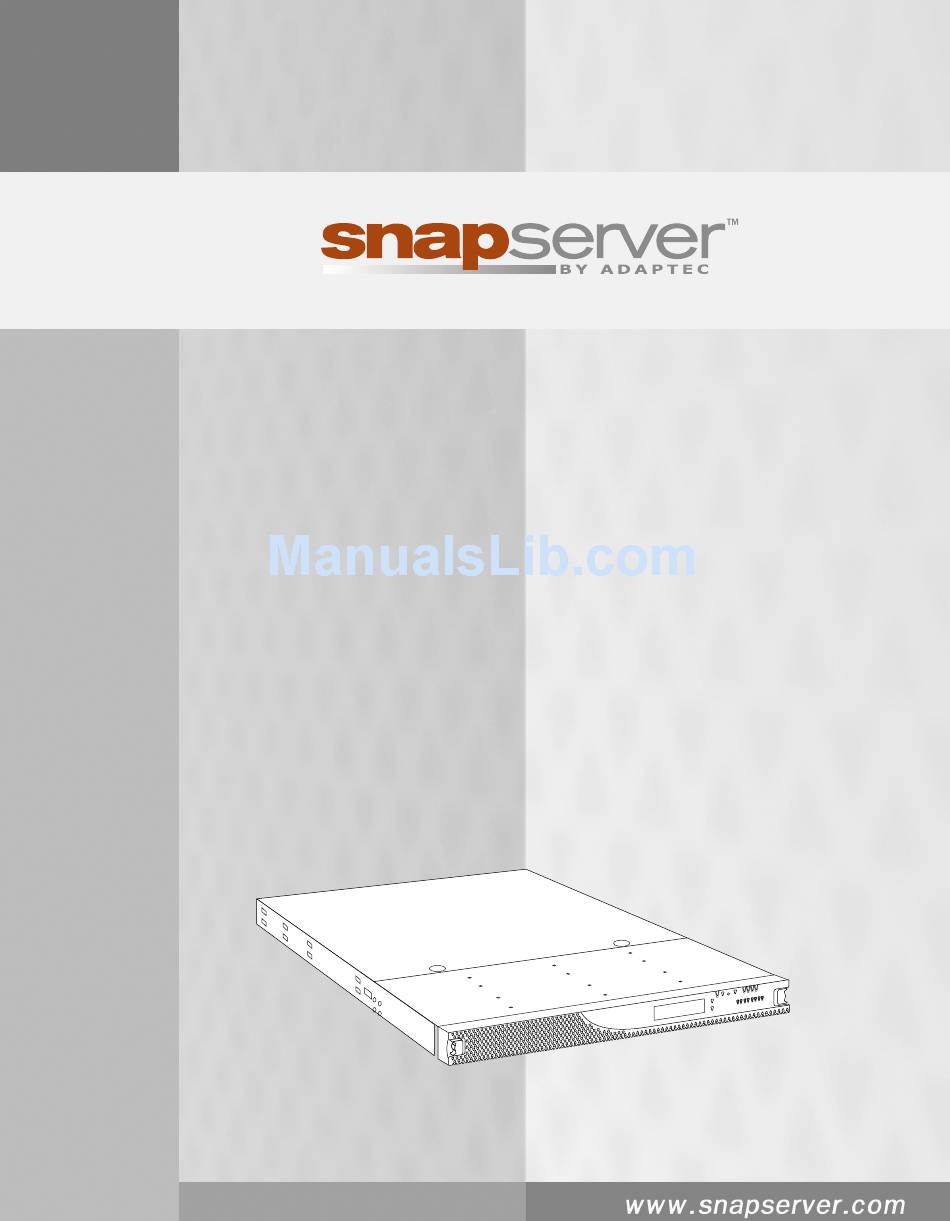

- Page 1 Quick Start Guide and User CD Kurzanleitung und Benutzer-CD Guía de iniciación rápida y CD del usuario Guide de mise en route rapide et CD de l’utilisateur Guida rapida all’uso e CD utente 700i Series Quick Start Guide Руководство по быстрой установке и компакт-диск User CD and User CD Kurzanleitung und Benutzer-CD Guía de iniciación rápida y CD del usuario...
-
Page 2: About This Guide
About This Guide This guide shows you how to install your Snap Server 700i Series in a rack, connect the server to your network, and set up your iSCSI configuration. The instructions consist of 5 steps: • Step 1: Verify the contents of your shipping package and ensure that you are using a supported iSCSI Initiator. •... -
Page 3: Hardware Features
Hardware Features 1 Power button 2 Reset button 3 System status lights 4 Disk drive status lights 5 Bezel release mechanisms 6 Unit ID (UID) light and button 7 Not active (for future use) 8 LCD (Liquid Crystal Display) * The Snap Server 720i has a single power supply with one power cable (1US, 1UK, 1EU). It also has 3 Ethernet ports with 3 Ethernet cables. 9 Hot-swappable disk drives (4) 10 Power supply modules (2) * 11 eth0 and eth1 Ethernet ports... -
Page 4: Step 3: Connect Power And Network Cables
If you connect only one port, it must be the eth0 port (as shown in the Hardware Features illustration), which is used by Adaptec Storage Manager as the management port but which can also double as an iSCSI port. - Page 5 Windows 2003 and connected to the Snap Server 700i Series iSCSI Storage Appliance. For more complex network configurations and for installations on Windows Vista, XP, or Linux-based operating systems, see the Snap Server 700i Series User’s Guide on your Adaptec OnTarget™ User CD.
- Page 6 2 Configure the Network Settings a The iSCSI Storage Appliance you added is automatically selected in the Wizard. Click Next to configure Network Values. b Set Network and CLI Values (host name, domain name, default gateway, up to three domain name servers, and CLI passwords) or accept the defaults.
- Page 7 Tous les autres noms de produit ou de société appartiennent à leurs détenteurs respectifs. Copyright © 2007 Adaptec, Inc. Tutti i diritti riservati in tutti i paesi del mondo. Tutti i nomi di prodotti e società sono di proprietà dei rispettivi proprietari.
