Snap Server Connectors and Controls

Snap Server Connectors and Controls

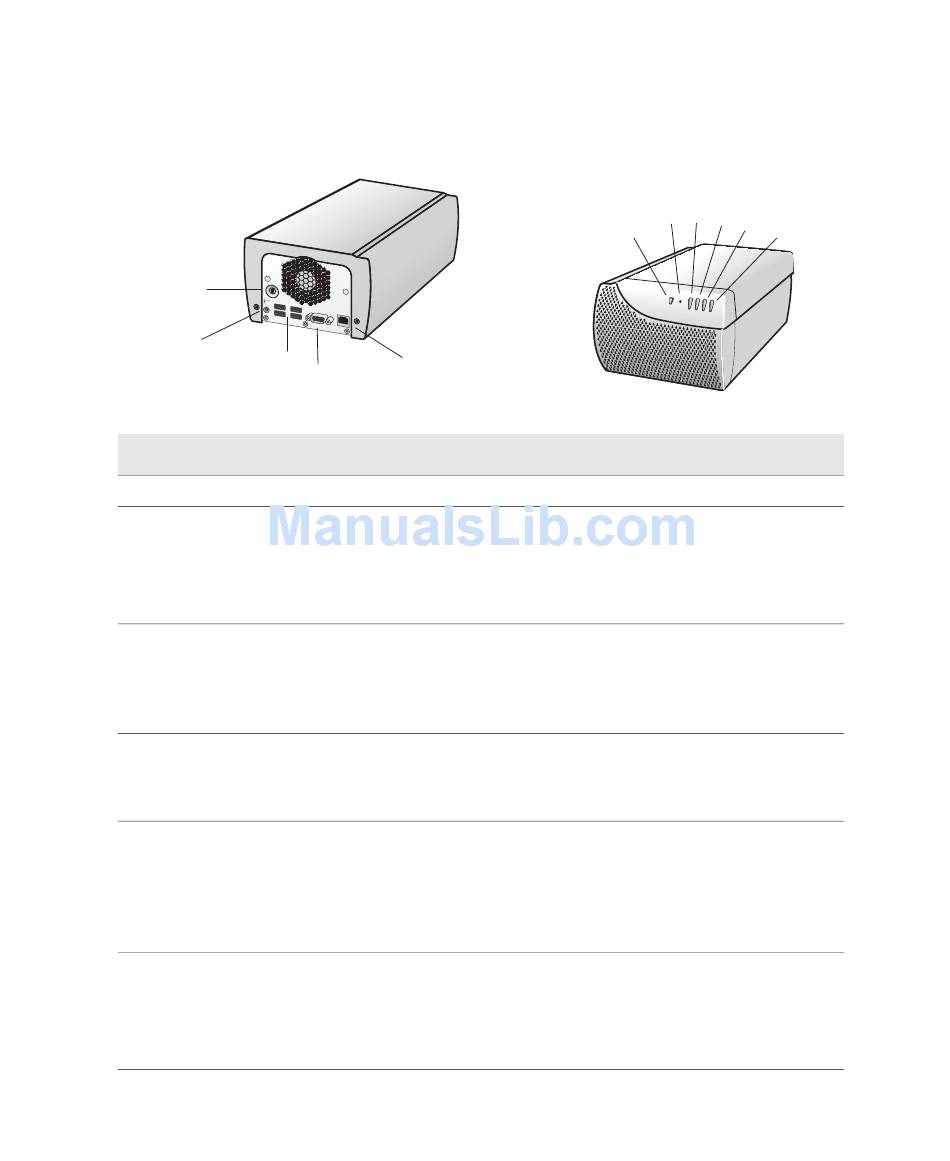

The Snap Server 110 and 210 have the following connectors and controls.
7
8
Connector/Control Description
1
Power Button
2
Reset Button
3
Power LED
4
Status LED
5
Network LED
6
Disk LED
6 Snap Server 110/210 User Guide
11 11
9
10 10
Press the Power Button to turn the Snap Server ON and OFF.
Use the Reset Button if you cannot access the Administration Tool
and you need to perform a limited reset to defaults.The Reset
Button is accessed by inserting a paper clip end or small tool into
the hole to the right of the Power Button when the server is fully
booted and running normally.
The Power LED indicates whether power to the Snap Server is ON
or OFF.
• Solid green = Server is ON
• Off = Server is OFF
The Status LED indicates whether the server is operating normally.
• Blinking green = System is operating normally
• Blinking amber = Thermal or other system problem
The Network LED indicates whether the server is connected to the
network.
• Solid green = System is active and connected to network
• Off = Port is disconnected or the Ethernet cable is not connected
or linked to an active switch
The Disk LED indicates the status of your disk drive.
• Blinking green = Disk drive is active
• Solid amber = Disk drive error
• Off = No disk drive activity
3 4
2 2
5
1 6
