9.22 ADF Motor

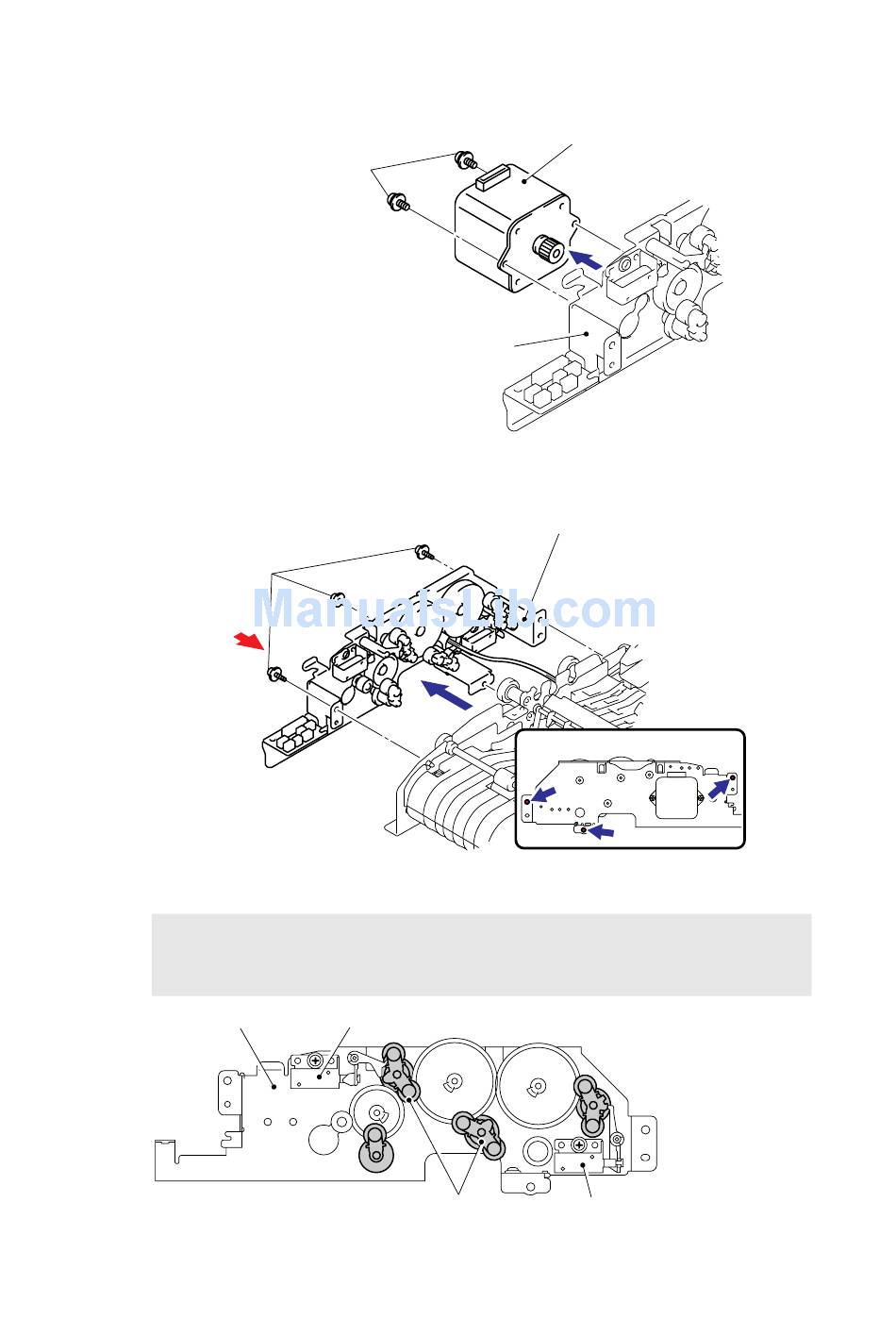

(1) Remove the two screw pan (S/P washer) M3x6, and then remove the ADF motor.
Screw, pan (S/P washer) M3X6
(2) Remove the three cup S M3x8 Taptite screws, and then remove the Motor frame ASSY.
Taptite cup S M3x8
View A
<Back side>
Assembling Note:
• When assembling the Motor frame ASSY, ensure that the gears (indicated with
gray) are placed in the positions as shown in the figure below.
Motor frame ASSY
Arm ASSY SB (For the models with the DX only)
Motor frame ASSY
Fig. 5-57
Fig. 5-58
S/B solenoid ASSY (For the models with the DX only)
Fig. 5-59
5-60
ADF motor
Motor frame ASSY
<View A>
Screw positions
PF solenoid ASSY
(For the models with the DX only)
