Whip Antennas

Lectrosonics AMM Series UHF transmitter antennas
follow the color code specifications in the chart below to
identify operating frequency block range. (The frequen-
cy block range is engraved on the outside housing for
each individual transmitter.) If a situation exists whereby
the antenna is defective and the antenna cap is miss-
ing, refer to the following chart to determine the correct
replacement antenna.

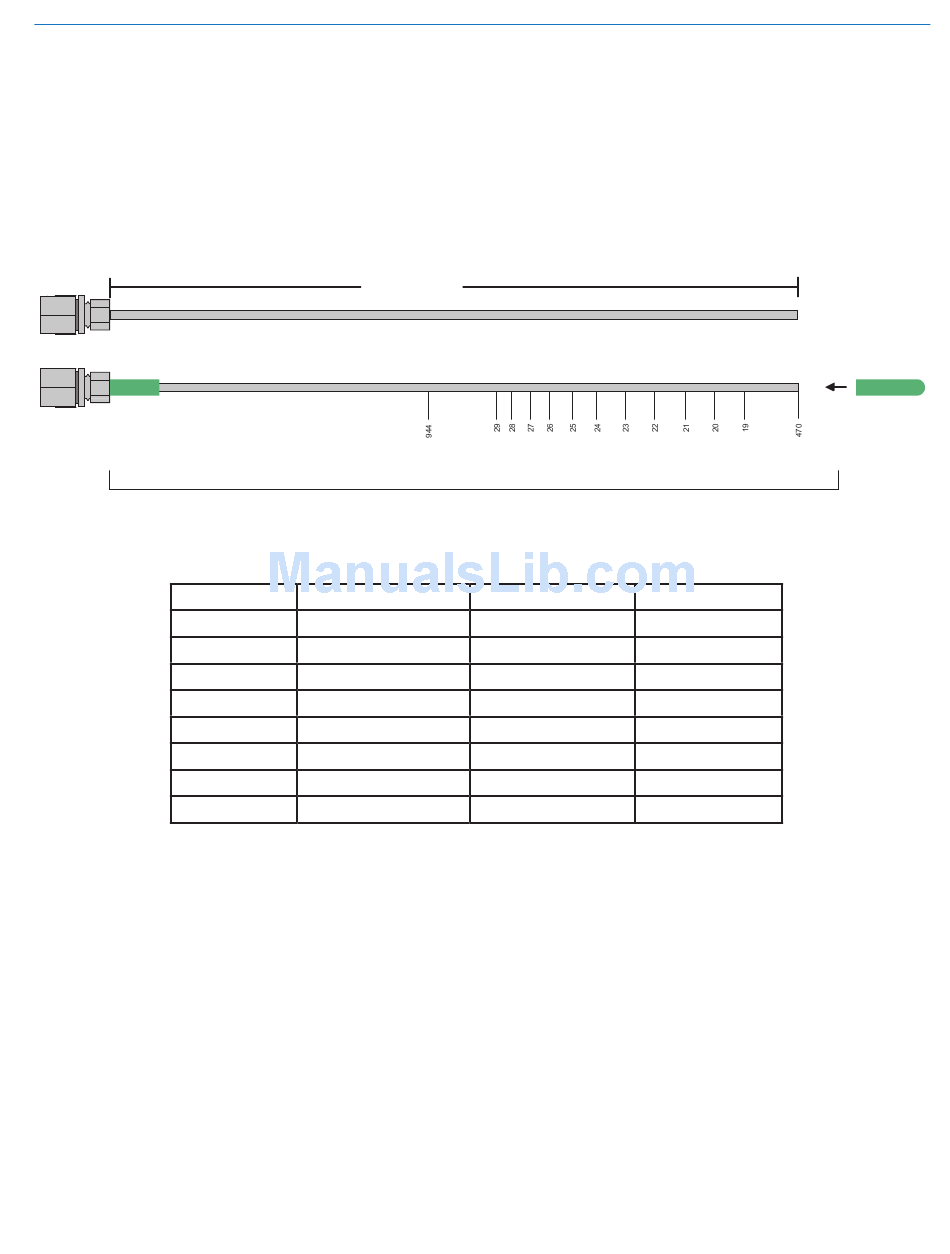

Note: Check the scale of your printout. This line should be 6.00 inches long (152.4 mm).
BLOCK
470
19
20
21
22
23
24
25
26
Rio Rancho, NM
Whip Length
FREQUENCY
RANGE
470.100 - 495.600
486.400 - 511.900
512.000 - 537.500
537.600 - 563.100
563.200 - 588.700
588.800 - 614.300
614.400 - 639.900
640.000 - 665.500
665.600 - 691.100
Super-Minature Belt Pack Transmitter
CAP ANTENNA
COLOR WHIP LENGTH
Black 5.48"
Black 5.20"
Black 4.95"
Brown 4.74"
Red 4.48"
Orange 4.24"
Yellow 4.01"
Green 3.81"
Blue 3.62"
