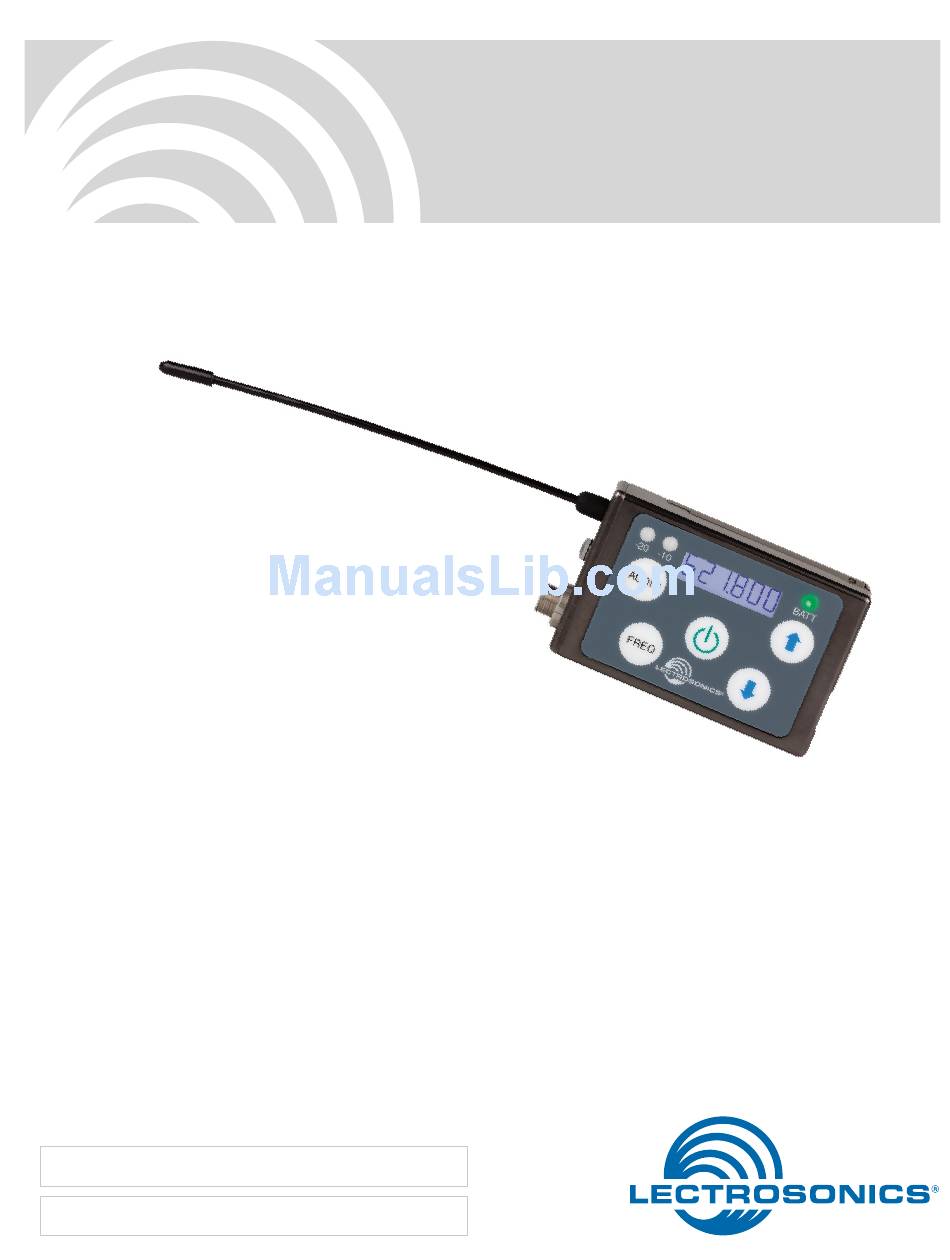

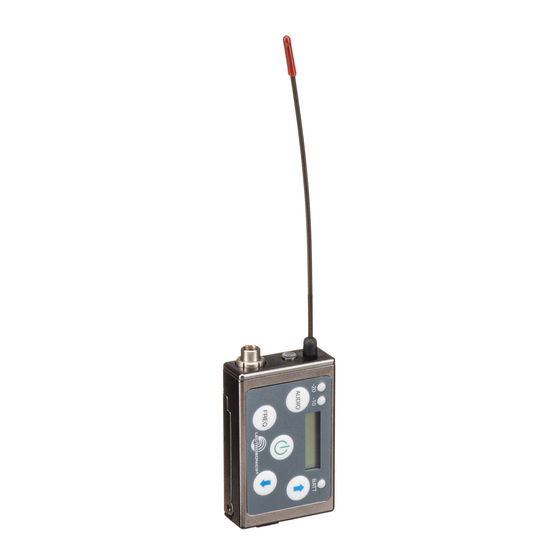

SSM
Micro Bodypack Transmitter

Quick Start Steps

1) Install a good battery and turn power on (see pages 5
and 8).
2) Set the compatibility mode to match the receiver (see
page 9).
3) Connect the signal source and adjust input gain for
optimum modulation level (see page 10).
4) Set Step Size and frequency to match receiver (see
pages 8 and 9). Also refer to the receiver manual for
the RF scanning procedure to find a clear operating
frequency.
5) Turn on the receiver and verify that solid RF and audio
signals are present (see receiver manual).
Fill in for your records:
Serial Number:
Purchase Date:
INSTRUCTION MANUAL
Rio Rancho, NM, USA
www.lectrosonics.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SSM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lectrosonics SSM

Summary of Contents for Lectrosonics SSM

  • Page 1: Quick Start Steps

    RF scanning procedure to find a clear operating frequency. 5) Turn on the receiver and verify that solid RF and audio signals are present (see receiver manual). Fill in for your records: Serial Number: Purchase Date: Rio Rancho, NM, USA www.lectrosonics.com...
  • Page 2 LECTROSONICS, INC.

  • Page 3: Table Of Contents

    Lectrosonics accessories supplied or designated for this product. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. Contact Lectrosonics if you have any questions or need more information about RF exposure using this product..

  • Page 4: Introduction

    Introduction Three Block Tuning Range About Digital Hybrid Wireless ® The SSM transmitter tunes across a range of over 76 US Patent 7,225,135 MHz. This tuning range covers three standard Lectro- All wireless links suffer from channel noise to some sonics frequency blocks.

  • Page 5: Battery Charging

    Battery life can be monitored from the timer door from being opened accidentally. function built into current Lectrosonics receivers. Squeeze tabs inward to release door catch The factory supplied battery charger provides a folding NEMA 2-prong plug, and will operate from 100-240 VAC sources.

  • Page 6: Controls And Functions

    The hexadecimal number that corresponds to the equivalent input circuitry includes a wide range DSP controlled Lectrosonics Frequency Switch Setting. limiter to prevent distortion at high input levels. Power Button It is important to set the gain (audio level) high enough to achieve full modulation during louder peaks in the Turns the unit on and off.

  • Page 7: Connectors And Usb Port

    Micro Body Pack Transmitter Connectors and USB Port Attaching and Removing the Microphone The housing is machined out of a solid aluminum billet for a rugged, lightweight assembly. Align the ridges on the plug with the grooves in the jack IR (infrared) port and insert the plug.

  • Page 8: Operating Instructions

    NOTE: Some Lectrosonics receivers include an Setup Screens IR (infrared) port to transfer settings from the receiver to the transmitter. Refer to the section on Two different setup menus are accessed by holding ei- IR (infrared) Sync for details.

  • Page 9: Setup Screens

    Micro Body Pack Transmitter Setup Screens DOWN Button Menu Hold the DOWN button while powering up the unit. Then press the AUDIO button repeatedly to scroll through the following settings. Use the UP and DOWN arrows to select the available options under each setting. •...

  • Page 10: Adjusting The Input Gain

    The display will show unloc 3...2...1 and then Loc will ing to these instructions. Use the audio output level appear. Remove the battery to unlock the controls. control on the receiver to make adjustments for the desired level being delivered to the connected mixer, recorder, etc. LECTROSONICS, INC.

  • Page 11: Remote Control

    Micro Body Pack Transmitter Remote Control Removable Belt Clips Remote control signals (“dweedle tones”) may be used Two different belt clips are available, one that orients to control the transmitter. The tones are played back into the antenna downward and another one that orients the the microphone to avoid the need to reach and handle antenna upward.

  • Page 12: Lectrorm

    • The remote control function must be enabled on the mechanism to prevent accidental activation of the tone. transmitter. Please be aware this app is not a Lectrosonics product. It is privately owned and operated by New Endian LLC, www.newendian.com.

  • Page 13: Accessories

    P/N 40106-1 P/N 35939 zippered, padded; 4 x 6 x1 inches LB-50 3.7V lithium-ion battery pack Battery charger P/N 40102 charger for Lectrosonics LB-50 battery Antenna downward belt clip P/N 26995 slide-on belt clip Port Cover P/N P1311 Micro USB port cover...

  • Page 14: Firmware Update

    Then click here to download. NOTE: This website, http://www.ftdichip.com/ Drivers/D2XX.htm, is not associated with Lectrosonics.com. It is a third party site used only for D2XX drivers currently available for Lectrosonics’ devices’ upgrades. LECTROSONICS, INC.
  • Page 15 Step 3: Step 7: Refer to Step 1 to return to Firmware web page. Down- In Lectrosonics USB Firmware Updater, choose the load Firmware Update and save to a local file on your detected device, browse to local Firmware File and PC for easy locating when updating.

  • Page 16: Specifications

    Lithium-ion 3.7 V 1000 mAH NP50 battery pack Battery Life: 6 hours per charge Weight: 2.3 ounces (65.2 grams) including lithium battery Dimensions (housing): 2.3 x 1.5 x .56 in. (58.4 x 38 x 14.2 mm) Emission Designator: 180KF3E LECTROSONICS, INC.

  • Page 17: Service And Repair

    There are no adjustments inside that will make a malfunctioning unit start working. LECTROSONICS’ Service Department is equipped and staffed to quickly repair your equipment. In warranty repairs are made at no charge in accordance with the terms of the warranty. Out-of-warranty repairs are charged at a modest flat rate plus parts and shipping.
  • Page 18 LECTROSONICS, INC.
  • Page 19 Micro Body Pack Transmitter Rio Rancho, NM...

  • Page 20: Limited One Year Warranty

    This warranty does not apply to used or demonstrator equipment. Should any defect develop, Lectrosonics, Inc. will, at our option, repair or replace any defective parts without charge for either parts or labor. If Lectrosonics, Inc. cannot correct the defect in your equipment, it will be replaced at no charge with a similar new item.
