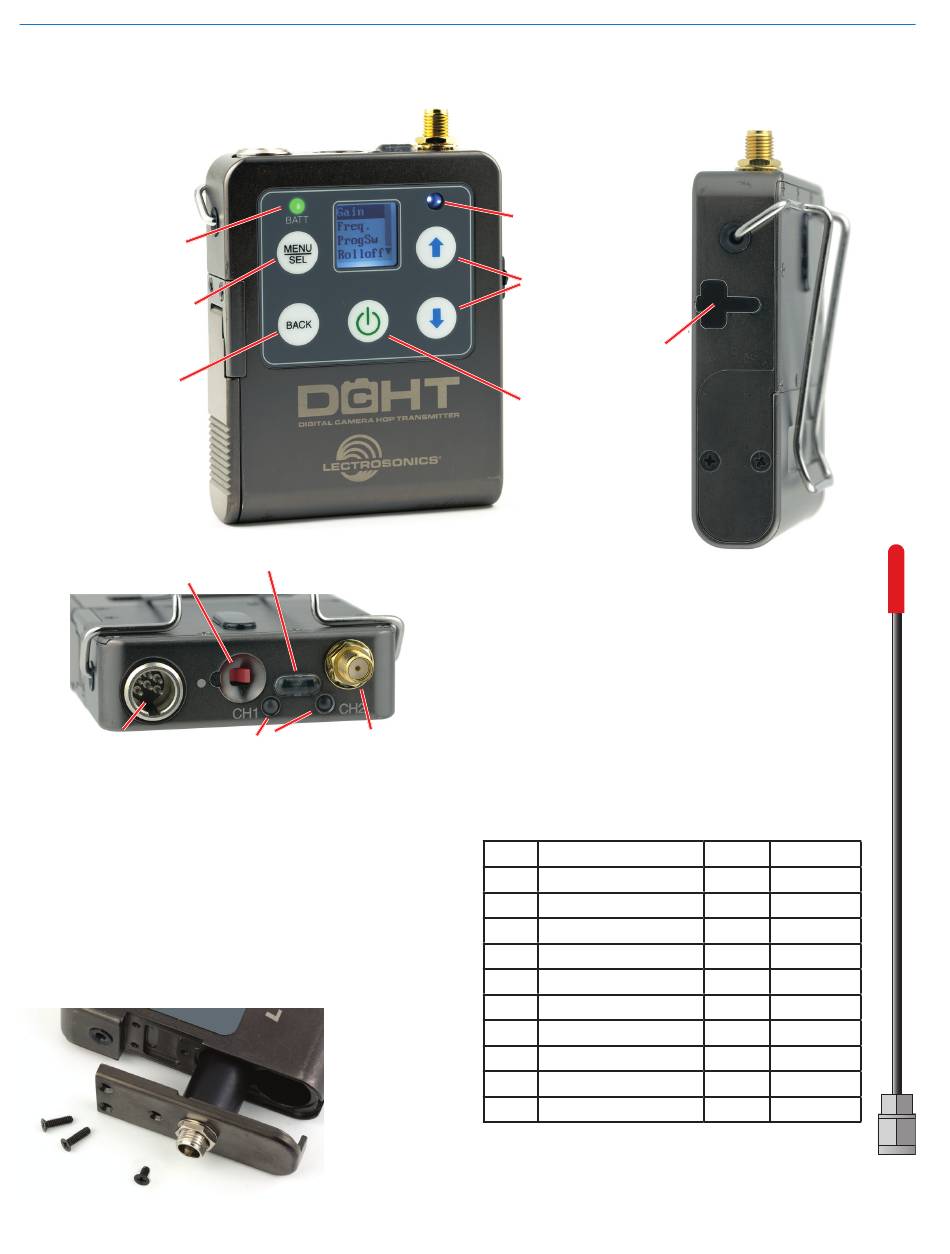

Features and Functions

Battery
status LED
Enter menu/Select item
Return to
previous screen
Programmable
function switch
Audio
input
jack
Optional Battery
Eliminator
The transmitter can be powered by external DC using the
optional LTBATELIM power supply adapter. The battery
door is replaced by the adapter with a simple procedure.
The adapter provides a locking coaxial connector and a
variety of power cords and connectors are available.
4
Bi-directional IR port
Antenna
Modulation
port
indicators*
Status Ready LED
Menu navigation
USB Port
Power

Whip Antennas

Because the transmitter tunes across such a broad
frequency range, it is best to use the appropriate
antenna for maximum operation. Two antennas are
included with the transmitter, and are shipped from
the factory pre-cut and fully assembled. Each an-
tenna covers three blocks. Refer to the chart below
to determine which antenna matches the operating
frequency you will be using.
Frequency
Block Range MHz
470 470.100 - 495.600
19 486.400 - 511.900
20 512.000 - 537.500
21 537.600 - 563.100
22 563.200 - 588.700
23 588.800 - 607.950
24 614.400 - 639.900
25 640.000 - 665.500
26 665.600 - 691.175
941 941.525 - 959.825
961 961.100 - 1014.900
Cap
Color Antenna
Black AMM19
Black AMM19
Black AMM19
Red AMM22
Red AMM22
Red AMM22
Red AMM22
Blue AMM25
Blue AMM25
Black AMM961
Black AMM961
LECTROSONICS, INC.
