Straight Whip Antennas - Lectrosonics SMDB/E01 Series Instruction Manual

SMB/EO1 Series

Straight Whip Antennas

The Lectrosonics AMMKIT provides the parts to make
an antenna with a standard SMA connector for any of
the available frequency blocks. Cut the whip accord-

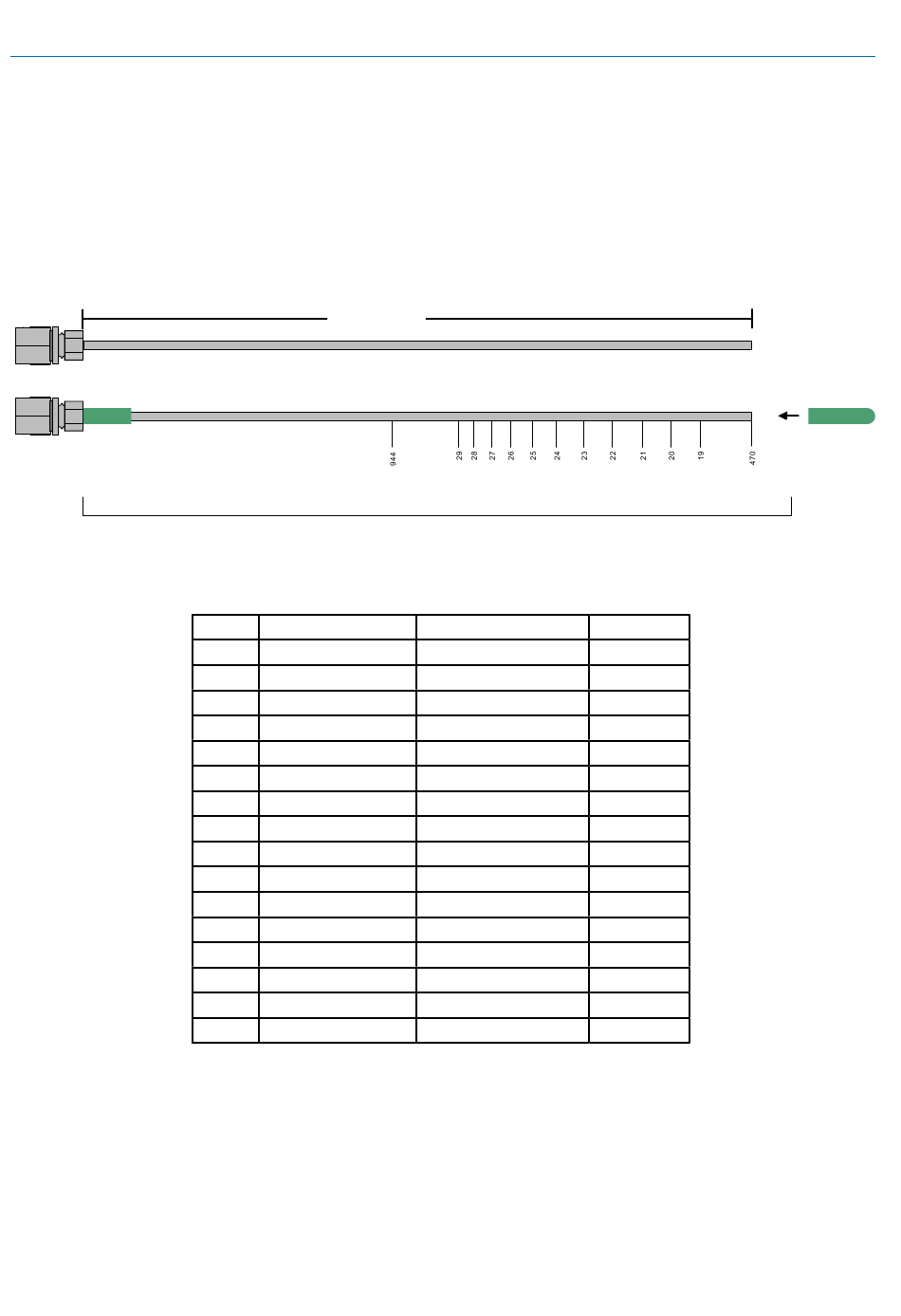

ing to the lengths in the table below or by laying the
antenna over the template to determine the correct
length. Be sure to check the scale of your printout by
measuring the length of the line below the drawing.
Note: Check the scale of your printout. This line should be 6.00 inches long (152.4 mm).
18
Whip Length
BLOCK FREQUENCY
RANGE
470 470.100 - 495.600
19 486.400 - 511.900
20 512.000 - 537.500
21 537.600 - 563.100
22 563.200 - 588.700
23 588.800 - 614.300
606 606.000 - 631.500
24 614.400 - 639.900
25 640.000 - 665.500
26 665.600 - 691.100
27 691.200 - 716.700
28 716.800 - 742.300
29 742.400 - 767.900
30 768.000 - 793.500
31 793.600 - 819.100
32 819.200 - 844.700
33 844.800 - 861.900
The frequency range and/or block is marked on the
outside of the transmitter housing.
Unmarked antennas can be identified by laying them
on the template below. Be sure to verify that a print
out is at 100% by checking the length of the line be-
low the antenna drawing.
CAP/SLEEVE ANTENNA
COLOR WHIP LENGTH
Black w/ Label
Black w/ Label
Black w/ Label
Brown w/ Label
Red w/ Label
Orange w/ Label
(Use Block 24 Ant)
Yellow w/ Label
Green w/ Label
Blue w/ Label
Violet (Pink) w/ Label
Grey w/ Label
White w/ Label
Black-w/Label
Black-w/Label
Black-w/Label
Black-w/Label
5.67"
5.23"
4.98"
4.74"
4.48"
4.24"
4.01"
3.81"
3.62"
3.46"
3.31"
3.18"
3.08"
2.99"
2.92"
2.87"
LECTROSONICS, INC.
