Instruction Manual
Q
uick
S
tart
G
uide
SM Series Transmitters
SMV
SMQV
Digital Hybrid Wireless
Fill in for your records:
Serial Number:
Purchase Date:
US Patent 7,225,135
®
This guide is intended to assist with
initial setup and operation of your
Lectrosonics product.
For a detailed user manual, down-
load the most current
version at:
www.lectrosonics.com
19 January 2016
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Lectrosonics SMQV
Summary of Contents for Lectrosonics SMQV
- Page 1 SM Series Transmitters SMQV Digital Hybrid Wireless US Patent 7,225,135 ® Fill in for your records: This guide is intended to assist with initial setup and operation of your Serial Number: Lectrosonics product. For a detailed user manual, down-...
-
Page 2: Controls And Functions
Used to set the operating frequency and toggle the LCD between the operating frequency in MHz and a two-digit hexadecimal frequency code. Up/Down Arrows Used to adjust the selected function or parameter. Battery Compartment, Cover Plate and Opener Used to install or remove battery/batteries. LECTROSONICS, INC. -
Page 3: Standby Mode
From a power off condition, press and hold the Up arrow, then press the AUDIO and FREQ buttons simultaneously. The LCD will display the current Compatibility Mode. Use the Up or Down arrow buttons to set the Compatibility Mode to match the corre- sponding receiver. www.lectrosonics.com... -
Page 4: Setting Transmitter Operating Frequency
Then press and hold the AUDIO button while selecting the desired roll-off frequency with the UP and DOWN arrows. The roll-off frequency can be set to 35, 50, 70, 100, 120 and 150 Hz. LECTROSONICS, INC. -
Page 5: Lcd Backlight Settings
Important: The only ways to unlock a locked transmitter are to remove the battery or unlock it via the remote control. The remote control function must be enable. The unit will always power up in “unlocked” mode. www.lectrosonics.com... -
Page 6: Battery Installation

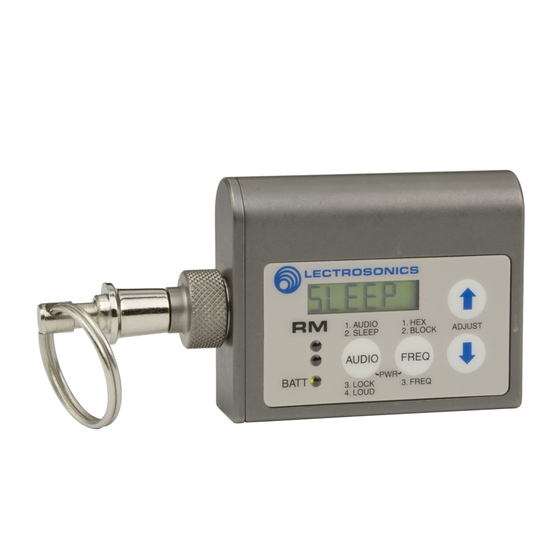

Replace the Cover Plate and tighten the Retaining Screw. Configuring for Remote Control Use Some transmitter settings can be changed with the Lectrosonics RM Remote Control. However, you must first configure the SM Series transmitter to accept commands from the RM:... - Page 7 Do not abrade these surfaces with a harsh material such as a pencil eraser, emery pa- per, etc., as this will remove the conductive nickel plating and expose the underlying alu- minum, which is a poor contact conductor. www.lectrosonics.com...
