Backlit
Sets the screen backlight to be always on, on for 30 sec-
onds or on for 5 seconds.
LED Off
Turns all LEDs on or off.
Restoring Default Settings
This is used to restore the factory settings.

About

This shows version and firmware information.

Whip Antennas

Because the transmitter tunes across such a broad
frequency range, it is best to use the appropriate antenna
for maximum operation. Two antennas are included with
the transmitter, and are shipped from the factory pre-cut
and fully assembled. Each antenna covers three blocks.
Use the chart below to determine which antenna best fits
your needs.
Frequency
Band Block Range MHz
470 470.100 - 495.600 Black
A1 19 486.400 - 511.900 Black
20 512.000 - 537.500 Black
21 537.600 - 563.100 Red
22 563.200 - 588.700 Red
B1
23 588.800 - 607.950 Red
Rio Rancho, NM
Cap
Color Antenna
AMM19
AMM19
AMM19
AMM22
AMM22
AMM22
Digital Belt-Pack Transmitter

Microphone Wiring

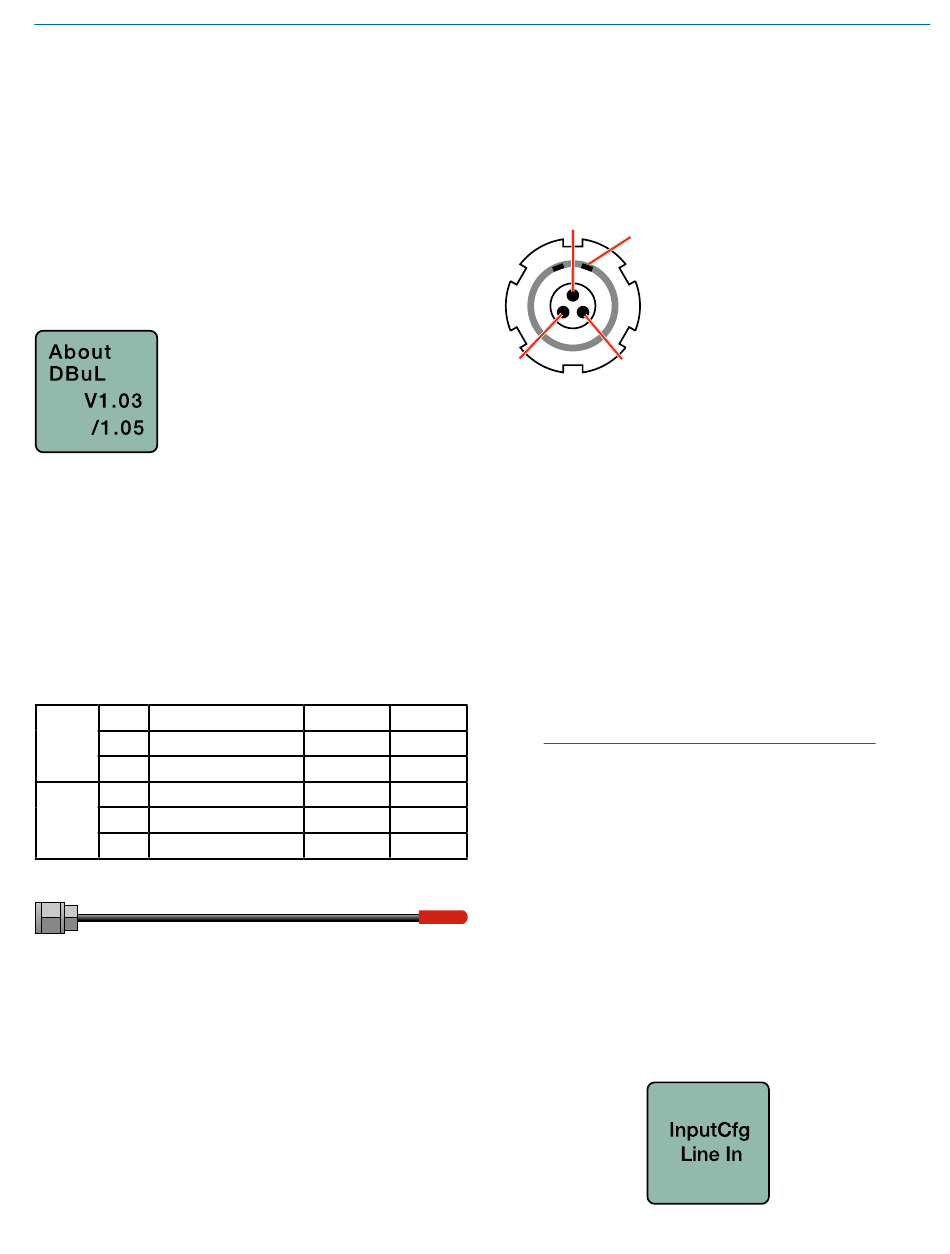

Looking into the 3 pin LEMO mic connector from the out-
side of the transmitter, the pin centered in the two guide
slots is pin 1 (ground). Pin 2 is a 1k resistor to ground.
Pin 3 is the audio/bias connection for two-wire micro-
phones and line inputs.
Pin 1
Guide slots
Pin 2
Pin 3
Voltages, polarity, impedance and line level for all signal
sources are selected by menus. Menu selections in-
clude presets for popular microphones, and a sub-menu
for manual setup. Refer to the section entitled Setup
Screens on the previous page for details.
Two-wire electret lavaliere:
Pin 1 - Ground (shield)
Pin 3 - Audio and Bias
Sanken COS-11 lavaliere
Recommended Wiring:
Pin 1 - Shield (ground)
Pin 2 - White (source load)
Pin 3 - Black (bias and audio)
NOTE: The COS-11 can also be wired in a two-
wire configuration. Contact Plus24/Sanken for
details.
The Sanken CUB-01 is not supported.

Line Input Wiring and Use

Pin Configuration:
Pin 1: Shield (ground)
Pin 2: Audio
Transmitter Settings:
Unlike the old configuration, the new line input configura-
tion requires no fixed gain setting. The gain setting can
be adjusted as needed for the specific input level used.
