DBu/E01

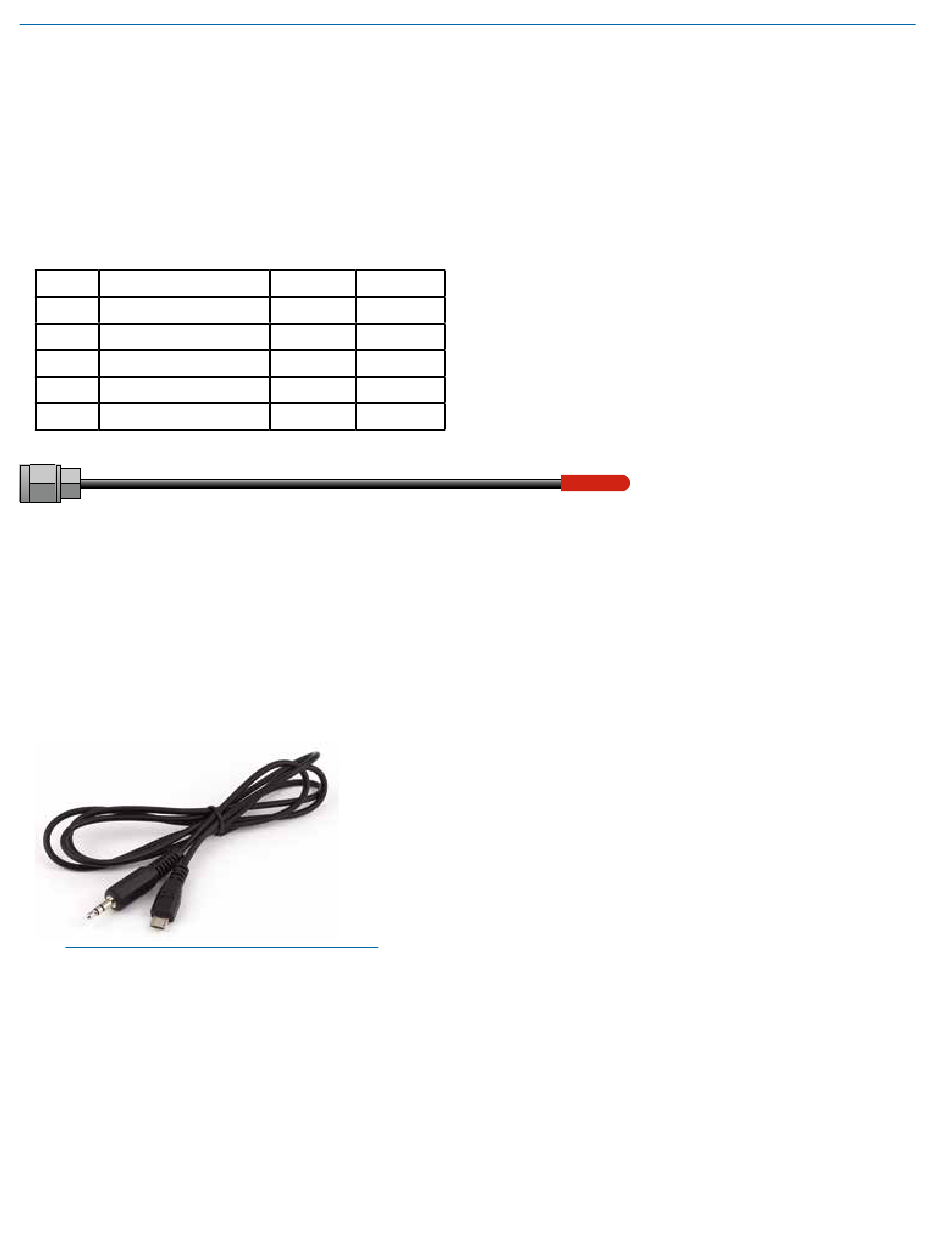

Whip Antennas

Because the transmitter tunes across such a broad fre-
quency range, it is best to use the appropriate antenna
for maximum operation. Two antennas are included with
the transmitter, and are shipped from the factory pre-cut
and fully assembled. Each antenna covers three blocks.
Use the chart below to determine which antenna best
fits your needs.
Frequency
Block Range MHz
470 470.100 - 495.600
19 486.400 - 511.900
20 512.000 - 537.500
21 537.600 - 563.100
22 563.200 - 588.700
23 588.800 - 614.300
Encryption Key and
Settings Transfer
A cable between the receiver and the micro USB port
on the side of the transmitter is used to transfer the
encryption key from the receiver to the transmitter. This
connection can also be used to send the transmitter
settings stored in the receiver to the transmitter.
The interface cable, P/N DRKEYCABLE, is used to
make this connection.
NOTE: Reference the DSW System Instruction
Manual for instructions on Encryption Key settings
and software.
12
Cap
Color Antenna
Black AMM19
Black AMM19
Black AMM19
Red AMM22
Red AMM22
Red AMM22
LECTROSONICS, INC.
