Whip Antennas

Because the transmitter tunes across such a broad frequency range, it is best
to use the appropriate antenna for maximum operation. Three antennas are
included with the transmitter, and are shipped from the factory pre-cut and
fully assembled. Each antenna covers three blocks. Use the chart below to
determine which antenna best fits your needs.
Block
470 470.100 - 495.600
19 486.400 - 511.900
20 512.000 - 537.500
21 537.600 - 563.100
22 563.200 - 588.700
23 588.800 - 614.300

Encryption Key and Settings Transfer

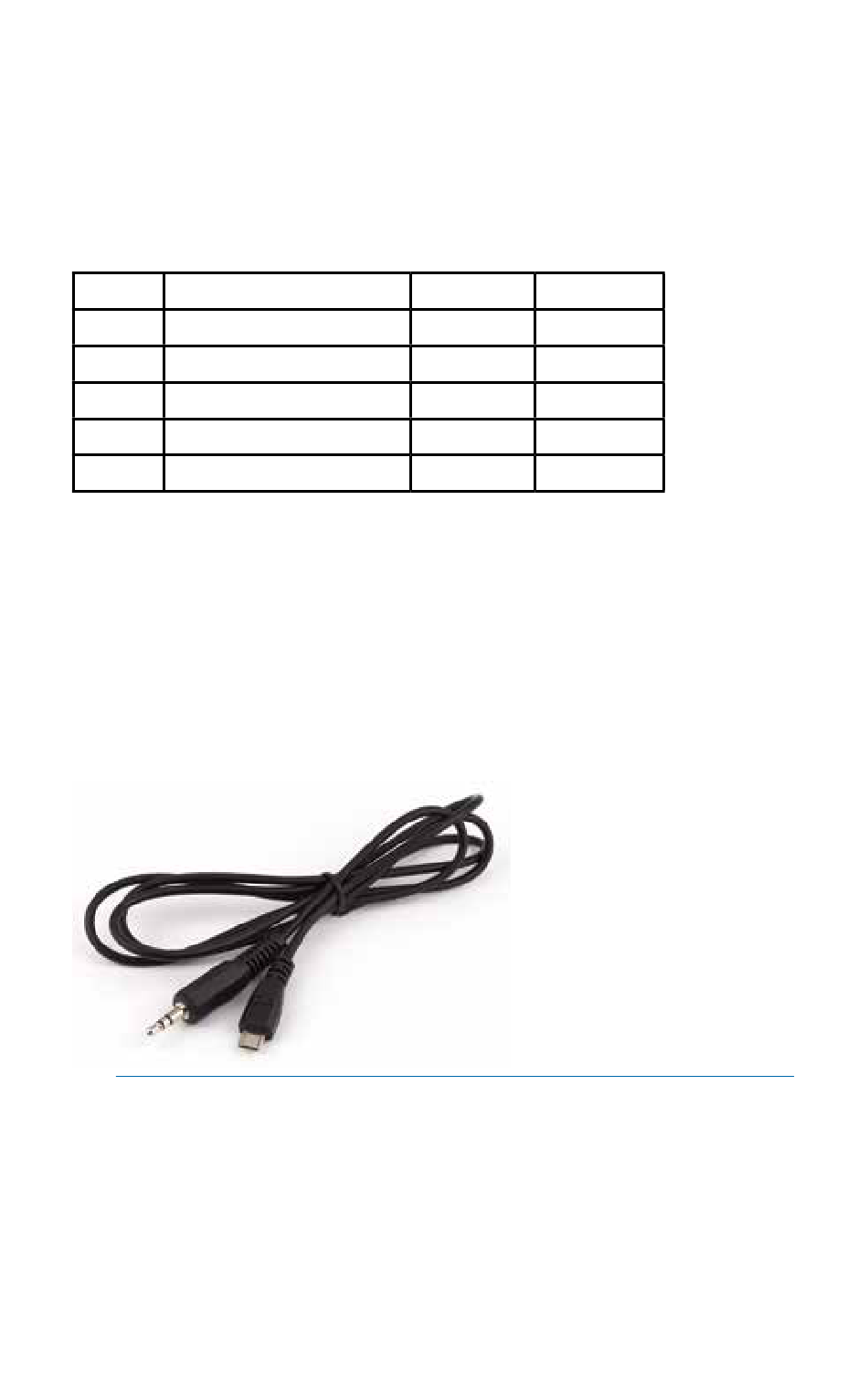

A cable between the receiver and the micro USB port on the side of the trans-
mitter is used to transfer the encryption key from the receiver to the transmit-
ter. This connection can also be used to send the transmitter settings stored in
the receiver to the transmitter.
The interface cable, P/N DRKEYCABLE, is used to make this connection.
NOTE: Reference the DSW System Instruction Manual for instructions
on Encryption Key settings and software.
www.lectrosonics.com
Frequency
Range MHz
Cap
Color Antenna
Black AMM19
Black AMM19
Black AMM19
Red AMM22
Red AMM22
Red AMM22
