Lectrosonics SSM Quick Start Manual

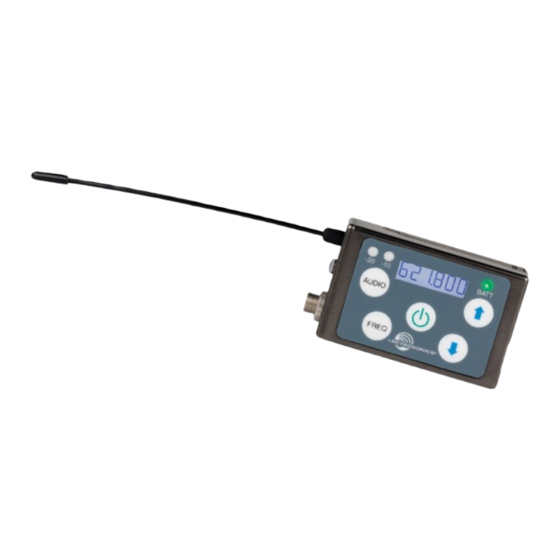

Micro bodypack transmitter
Hide thumbs Also See for SSM:
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instruction Manual
Q
uick
S
tart
G
uide
SSM
Micro Bodypack Transmitter
WARNING: Moisture, including talent's
sweat, will damage the transmitter.
Wrap the SSM in a plastic bag or other
protection to avoid damage.
Fill in for your records:
Serial Number:
Purchase Date:
Digital Hybrid Wireless
US Patent 7,225,135
This guide is intended to assist with
initial setup and operation of your
Lectrosonics product.
For a detailed user manual, down-
load the most current
version at:
www.lectrosonics.com
®
19 October 2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SSM and is the answer not in the manual?

Questions and answers

Related Manuals for Lectrosonics SSM

Summary of Contents for Lectrosonics SSM

  • Page 1 Micro Bodypack Transmitter WARNING: Moisture, including talent’s sweat, will damage the transmitter. Wrap the SSM in a plastic bag or other protection to avoid damage. Digital Hybrid Wireless ® US Patent 7,225,135 Fill in for your records:...

  • Page 2: Controls And Functions

    Used to adjust the selected function or parameter. Battery LED This LED glows green when the battery is good. The color changes to red when there is only a few minutes of operation left. The LED will blink briefly, just before the unit powers down. LECTROSONICS, INC.

  • Page 3: Battery Charging

    The transmitter operates from a 3.7 V rechargeable battery that will provide about six hours of operation per charge. Battery life can be monitored from current Lectrosonics receivers. The factory supplied battery charger provides a folding NEMA 2-prong plug, and will operate from 100-240 VAC sources. The LED glows red during charg- ing and turns green when the battery is fully charged.

  • Page 4: Operating Instructions

    UP and DOWN arrows to select the values and settings for each item. NOTE: Some Lectrosonics receivers include an IR (infrared) port to transfer settings from the receiver to the transmitter. Refer to the section on IR (infrared) Sync for details.
  • Page 5 In dYn no bias, 0 (300 ohm); for dynamic microphones In CoS 4v bias, 0 (300 ohm); phase reversed; for Sanken COS11, Lectrosonics M152 and similar mics In b6 2v bias, 0 (300 ohm); for Countryman B6 and similar mics In dPA 4v bias, Lo (4k ohms);...

  • Page 6: Adjust The Input Gain

    Use the audio output level control on the receiver to make adjustments for the desired level being delivered to the connected mixer, recorder, etc. LECTROSONICS, INC.

  • Page 7: Ir (Infrared) Sync

    When mounting the belt clip onto the battery door, carefully align the open- ings with the retaining tabs on the door and press it into place. If the holes and tabs are not precisely aligned, the door may not close and latch properly. Align the openings and tabs precisely. www.lectrosonics.com...
