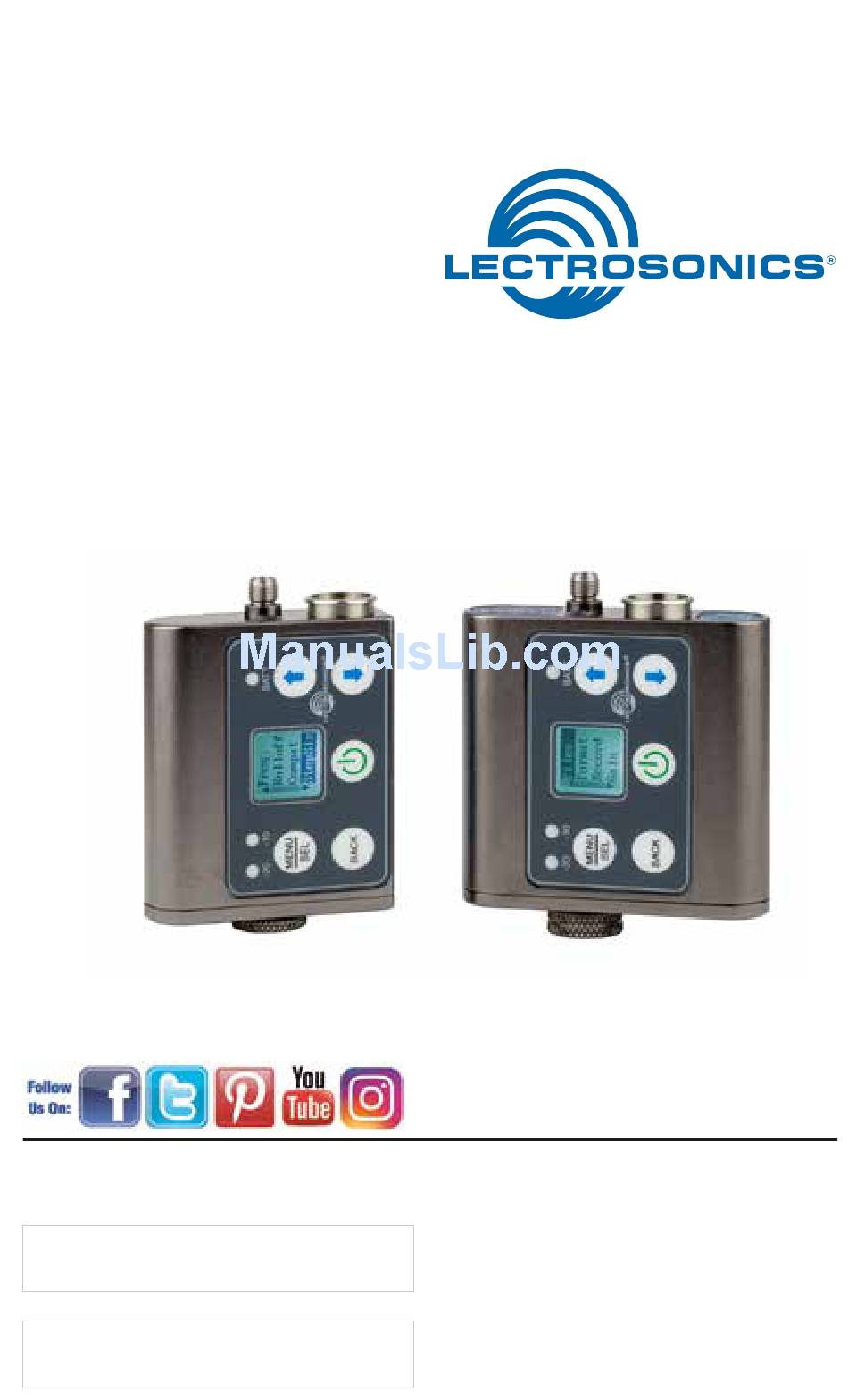

Q
uick
S
tart
G
uide

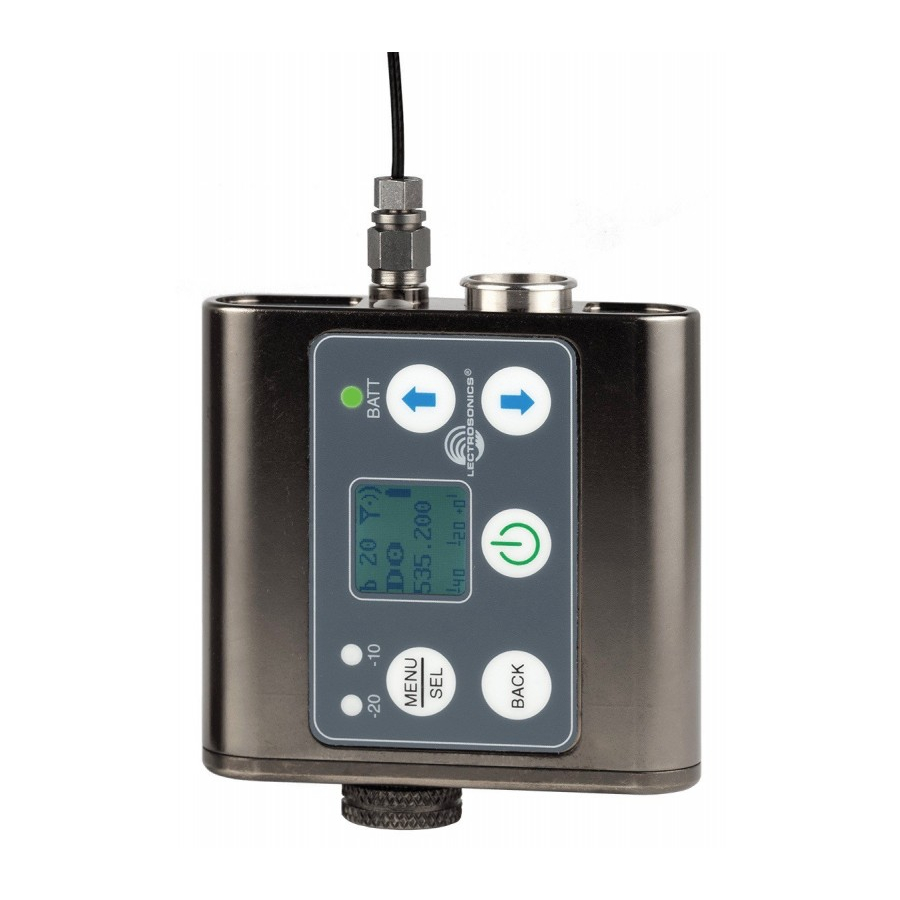

SMWB Series Transmitters
SMWB
Fill in for your records:
Serial Number:
Purchase Date:
Digital Hybrid Wireless
This guide is intended to assist with
initial setup and operation of your
Lectrosonics product.
For a detailed user manual, down-
load the most current
version at:
www.lectrosonics.com
SMDWB
US Patent 7,225,135
®
05 April 2018
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Lectrosonics SMDWB series
Summary of Contents for Lectrosonics SMDWB series
- Page 1 US Patent 7,225,135 ® Fill in for your records: This guide is intended to assist with initial setup and operation of your Serial Number: Lectrosonics product. For a detailed user manual, down- load the most current version at: Purchase Date: www.lectrosonics.com...
-
Page 2: Controls And Functions
DSP “compatibility modes” allow the transmitter to also be used with a variety of analog receivers by emulating the compandors found in earlier Lectrosonics analog wireless and IFB receivers, and certain receivers from other manufactur- ers (contact the factory for details). -
Page 3: Battery Installation
However, it is possible simultaneously to track battery status using the battery timer function available in NOTE: The shortcuts are Lectrosonics Digital Hybrid Wireless only available from the main/ receivers. home screen AND when a microSDHC memory card is The battery door opens by simply installed. -
Page 4: Turning Power On
RF indicator not blinking Hold b 19 Hold power button until Rf On the counter 503.800 reaches 3 ...3 If the button is released before the countdown is completed, the unit will switch back to RF output turned off. LECTROSONICS, INC. -
Page 5: Power Button Menu
Locked disables the control panel buttons • • LED Off enables/disables control panel LEDs • About displays the model number and firmware revision A long press of the button starts a countdown from 3 to 1 to turn the unit off. www.lectrosonics.com... - Page 6 3. NOTE: The translucent “bubble” next to the antenna connector is an IR port that can be used to transfer settings from an IR enabled Lectrosonics receiver. Refer to the receiver manual for details. LECTROSONICS, INC.
- Page 7 To stop recording, press MENU/SEL and choose Stop; the word SAVED appears on the screen b 19 Files For mat SAVED 503.800 Stop Gain To play back the recordings, remove the memory card and copy the files onto a computer with video or audio editing software installed. www.lectrosonics.com...
-
Page 8: Smwb Main Menu
Clock file naming method BACK Fuel gauge [SMWB SD Info Storage used BACK E......F Storage capacity Available recording time (H : M : S) Default Use arrow keys to return recorder Default settings to default factory settings BACK LECTROSONICS, INC. -
Page 9: Smwb Power Button Menu
07 / 26 17 : 19 Hour : Minute Locked? Use arrow keys to Locked lock/unlock keypad BACK LEDs Use arrow keys to turn LED Off BACK LEDs on or off About About Displays firmware version SMWB BACK v1.00 www.lectrosonics.com... -
Page 10: Setup Screen Details
When the frequency step size is set to 25 kHz, the hex number will appear smaller and may include a fraction. Fraction b 470 1/4 = .025 MHz Note that the frequency has 1/2 = .050 MHz increased by 25 474.525 kHz from the upper 3/4 = .075 MHz example. LECTROSONICS, INC. - Page 11 Power Button menu. Helpful Features on Receivers To aid in finding clear frequencies, several Lectrosonics receivers offer a SmartTune feature that scans the tuning range of the receiver and displays a graphical report that shows where RF signals are present at different levels, and areas where there is little or no RF energy present.
- Page 12 0005A000 Record 0004A000 0003A000 Gain 0002A000 Format Formats the microSDHC memory card. Files WARNING: This function erases any content on the Format microSDHC memory card. Record Gain Record or Stop Begins recording or stops recording. (See page 7.) LECTROSONICS, INC.
-
Page 13: Adjusting The Input Gain
6) If the audio output level of the receiver is too high or low, use only the controls on the receiver to make adjustments. Always leave the trans- mitter gain adjustment set according to these instructions, and do not change it to adjust the audio output level of the receiver. www.lectrosonics.com... -
Page 14: Selecting Frequency
A fraction will appear next to the hex code in the setup screen and in the main window when the frequency ends in .025, .050 or .075 MHz. b 470 Freq. b 19 Fraction appears next to hex code 474.525 in 25 kHz mode 494.525 LECTROSONICS, INC. -
Page 15: Selecting Frequency Using Two Buttons
If the Step Size is 25 kHz with the frequency set between even 100 kHz steps and the Step Size is then changed to 100 kHz, the mismatch will cause the hex code to display as two asterisks. b 19 Freq. Step Size and b 19 Frequency mismatch 494.525 494.500 www.lectrosonics.com... -
Page 16: About Overlapping Frequency Bands
Selecting the Low Frequency Roll-off Low frequency audio content may be desirable or distracting, so the point at which the roll-off takes place can be set to 35, 50, 70, 100, 120 and 150 Hz. Rolloff Rolloff Compat 70 Hz StepSiz Phase LECTROSONICS, INC. -
Page 17: Selecting The Compatibility (Compat) Mode
Mode 6 • IFB Series: IFB Mode *Modes 3, 6 and 7 work with certain non-Lectrosonics models. Contact the factory for details. Selecting Step Size This menu item allows frequencies to be selected in either 100 kHz or 25 kHz increments. - Page 18 Compat TxPower 25 mW StepSiz 50 mW Phase 100 mW TxPower Recorded File Naming Choose to name the recorded files by the sequence number or by the clock time. TxPower Naming Naming Seq # SD Info Clock Default LECTROSONICS, INC.
- Page 19 Fuel gauge [SMWB TxPower Storage used Naming E......F Storage capacity SD Info Available recording Default time (H : M : S) Restoring Default Settings This is used to restore the factory settings. TxPower Default Naming settings SD Info Default www.lectrosonics.com...
