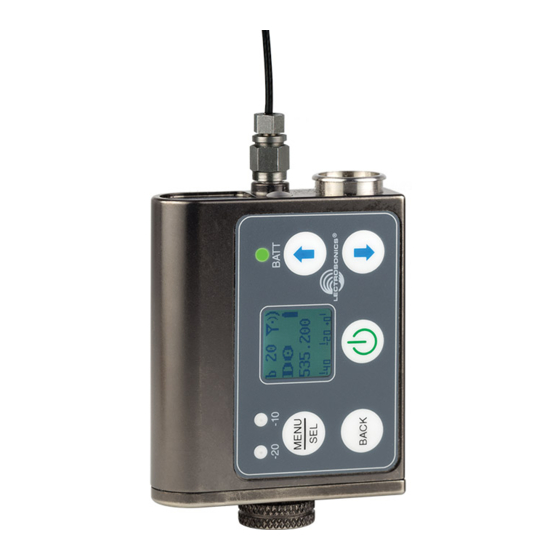

Lectrosonics SMWB Instruction Manual
Smwb series;
wireless microphone transmitters and recorders.
featuring
digital hybrid wireless technology
Hide thumbs
Also See for SMWB:
- Quick start manual (21 pages) ,
- Instruction manual (30 pages) ,
- Instruction manual (30 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Lectrosonics SMWB
Summary of Contents for Lectrosonics SMWB

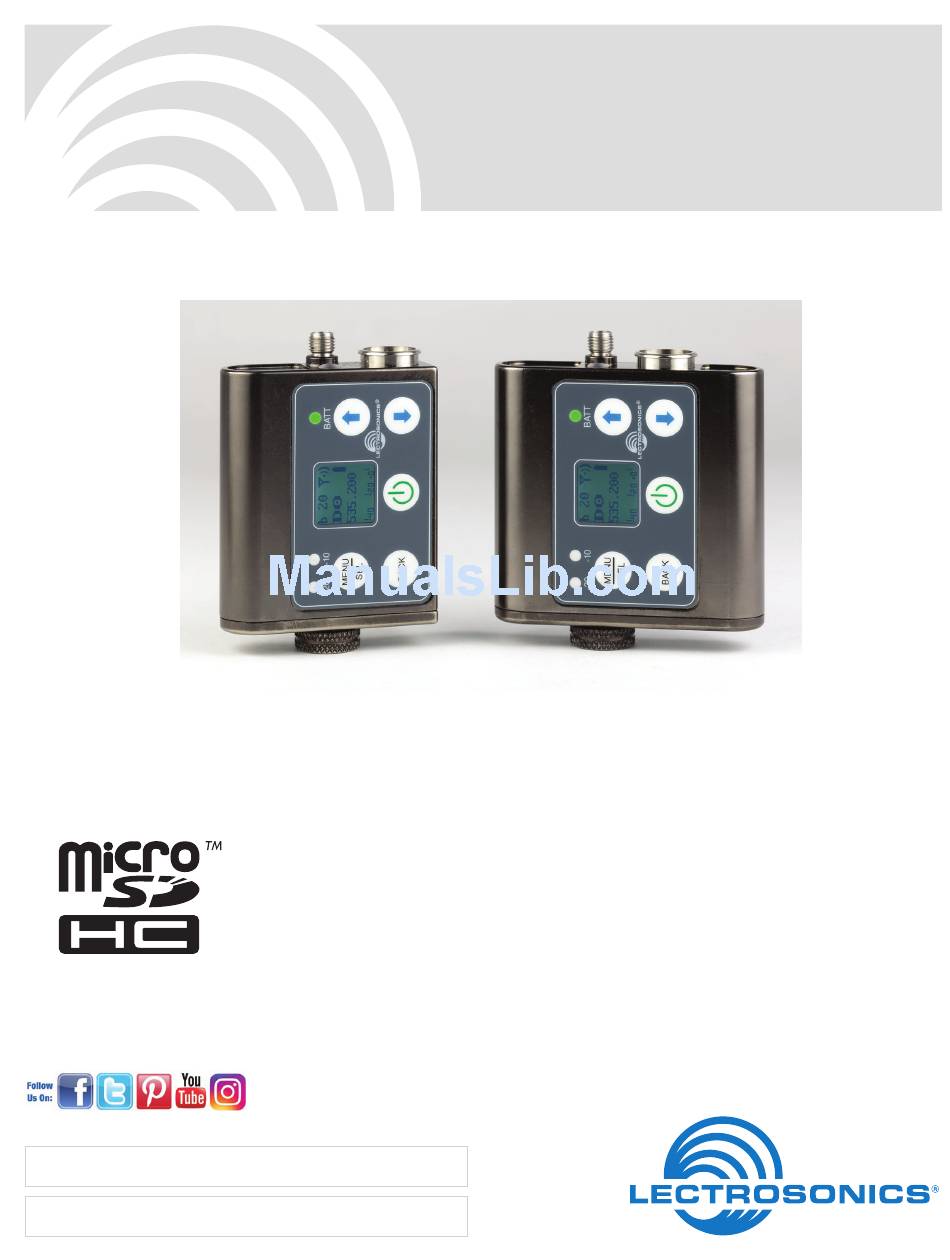

- Page 1 INSTRUCTION MANUAL SMWB Series Wireless Microphone Transmitters and Recorders SMDWB SMWB Featuring Digital Hybrid Wireless ® Technology US Patent 7,225,135 Fill in for your records: Serial Number: Purchase Date: Rio Rancho, NM, USA www.lectrosonics.com...
-
Page 2: Table Of Contents
For body worn operation, this transmitter model has been tested and meets the FCC RF exposure guidelines when used with the Lectrosonics accessories supplied or designated for this product. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. Contact Lectrosonics if you have any questions or need more information about RF exposure using this product.. -
Page 3: Introduction
Recorder function comes channel noise in a dramatically new way, digitally The SMWB has a built in recording function for use in encoding the audio in the transmitter and decoding it situations where RF may not be possible or to work as in the receiver, yet still sending the encoded informa- a stand alone recorder. -
Page 4: Features
NOTE: The battery timer feature in many power consumption. The LEDs are intended to simply Lectrosonics receivers is very helpful in measuring catch your attention, not to be an exact indicator of battery runtime. Refer to the receiver instructions remaining time. -
Page 5: Battery Installation
Power LED to verify battery status will not be reli- able. However, it is possible to track battery status using the battery timer function available in Lectrosonics Digital Hybrid Wireless receivers. The battery door opens by simply unscrewing the knurled knob part way until the door will rotate. -
Page 6: Turning Power On
SMWB Series Turning Power ON Power Button Menu When the unit is already turned on, the Power Button is Short Button Press used to turn the unit off, or to access a setup menu. When the unit is turned off, a short press of the power A long press of the button turns the power off. -
Page 7: Transmitter Operating Instructions
IR port that can be used to transfer settings from an IR enabled Gain Lectrosonics receiver. Refer to the receiver manual for details. • To stop recording, press MENU/SEL and choose Stop; the word SAVED appears on the screen... -
Page 8: Smwb Main Menu
SMWB Series SMWB Main Menu From the Main Window press MENU/SEL. Use the UP/Down arrow keys to select the item. Files Use arrow keys to Files Select from 0014A000 select file in list listing BACK 0013A000 Format? Use arrow keys to initiate... -
Page 9: Smwb Power Button Menu
Digital Hybrid Wireless Belt-Pack Transmitters SMWB Power Button Menu From the Main Window press the power button. Use the UP/DOWN arrow keys to select the item. Press SEL to return to Resume the previous screen Press SEL to turn the... -
Page 10: Setup Screen Details
When the frequency step size is set to 25 kHz, the hex number will appear smaller and may include a fraction. Helpful Features on Receivers Fraction To aid in finding clear frequencies, several Lectrosonics b 470 receivers offer a SmartTune feature that scans the tun- 1/4 = .025 MHz... -
Page 11: Record Or Stop
Digital Hybrid Wireless Belt-Pack Transmitters Format adjustments, monitor settings, etc. 6) If the audio output level of the receiver is too high or Formats the microSDHC memory Files low, use only the controls on the receiver to make card. adjustments. Always leave the transmitter gain ad- Format WARNING: This function erases justment set according to these instructions, and do... -
Page 12: Selecting Frequency Using Two Buttons
• IFB Series: IFB Mode In the following examples, the frequency is set to Modes 3, 6 and 7 work with certain non-Lectrosonics 494.500 MHz, but one is in band 470 and the other in models. Contact the factory for details. -
Page 13: Selecting Step Size
Restoring Default Settings the 25 kHz step size must be selected. This is used to restore the factory settings. Normally, the receiver is used to find a clear operat- ing frequency. All Lectrosonics Digital Hybrid Wireless ® TxPower Default receivers provide a scanning function to quickly and... -
Page 14: 5-Pin Input Jack Wiring
SMWB Series 5-Pin Input Jack Wiring Audio input jack wiring: The wiring diagrams included in this section represent the basic wiring necessary for the most common types PIN 1 of microphones and other audio inputs. Some micro- Shield (ground) for positive biased electret lavaliere phones may require extra jumpers or a slight variation microphones. -
Page 15: Microphone Cable Termination For Non-Lectrosonics Microphones
VHF transmitters with 5-pin shield jacks require a different termination. Lectrosonics lavaliere microphones are terminated for compatibility with VHF and UHF transmitters, which is different from what is shown here. Rio Rancho, NM... -
Page 16: Input Jack Wiring For Different Sources
In addition to the microphone and line level wiring hook- A lot of information regarding microphone wiring is also ups illustrated below, Lectrosonics makes a number of available in the FAQ section of the web site at: cables and adapters for other situations such as con- http://www.lectrosonics.com/faqdb... -
Page 17: Microphone Rf Bypassing
Line Level More Headroom Use 330 pF capacitors. Capacitors are available from (20 dB) Lectrosonics. Please specify the part number for the desired lead style. Leaded capacitors: P/N 15117 Leadless capacitors: P/N SCC330P All Lectrosonics lavaliere mics are already bypassed and do not need any additional capacitors installed for proper operation. -
Page 18: Firmware Update
- on very rare occasions, you might browser. need to update the bootloader. 2) Copy the smwb vX_xx.ldr file to the memory card, • smwb_boot vX_xx.ldr is the bootloader file then safely eject the card from the computer. - Page 19 The file must be recovered or the card will not be usable in the SMWB. First it will read: Interrupted Recording...
-
Page 20: Troubleshooting
SMWB Series Troubleshooting It is important that you follow these steps in the sequence listed. Symptom: Possible Cause: Transmitter Battery LED off 1. Batteries are inserted incorrectly. when Power Switch “ON” 2. Batteries are low or dead. No Transmitter Modulation LEDs 1. -
Page 21: Specifications
® SMDWB: 3.7 oz.. (105 grams) 200 Series, 100 Series, Mode 3, Mode 6, IFB Overall Dimensions: SMWB: 2.3 x 1.8 x 0.64 inches; Pilot tone (Digital Hybrid Mode): 25 to 32 kHz; 5 kHz deviation (without microphone) 58 x 46 x 16 mm SMDWB: 2.3 x 2.4 x 0.64 inches;... -
Page 22: Service And Repair
LECTROSONICS’ Service Department is equipped and staffed to quickly repair your equipment. In warranty repairs are made at no charge in accordance with the terms of the warranty. Out-of-warranty repairs are charged at a modest flat rate plus parts and shipping. - Page 23 Digital Hybrid Wireless Belt-Pack Transmitters Rio Rancho, NM...
-
Page 24: Limited One Year Warranty
This warranty does not apply to used or demonstrator equipment. Should any defect develop, Lectrosonics, Inc. will, at our option, repair or replace any defective parts without charge for either parts or labor. If Lectrosonics, Inc. cannot correct the defect in your equipment, it will be replaced at no charge with a similar new item.
