SMB/EO1, SMB/E02 Series

Straight Whip Antennas

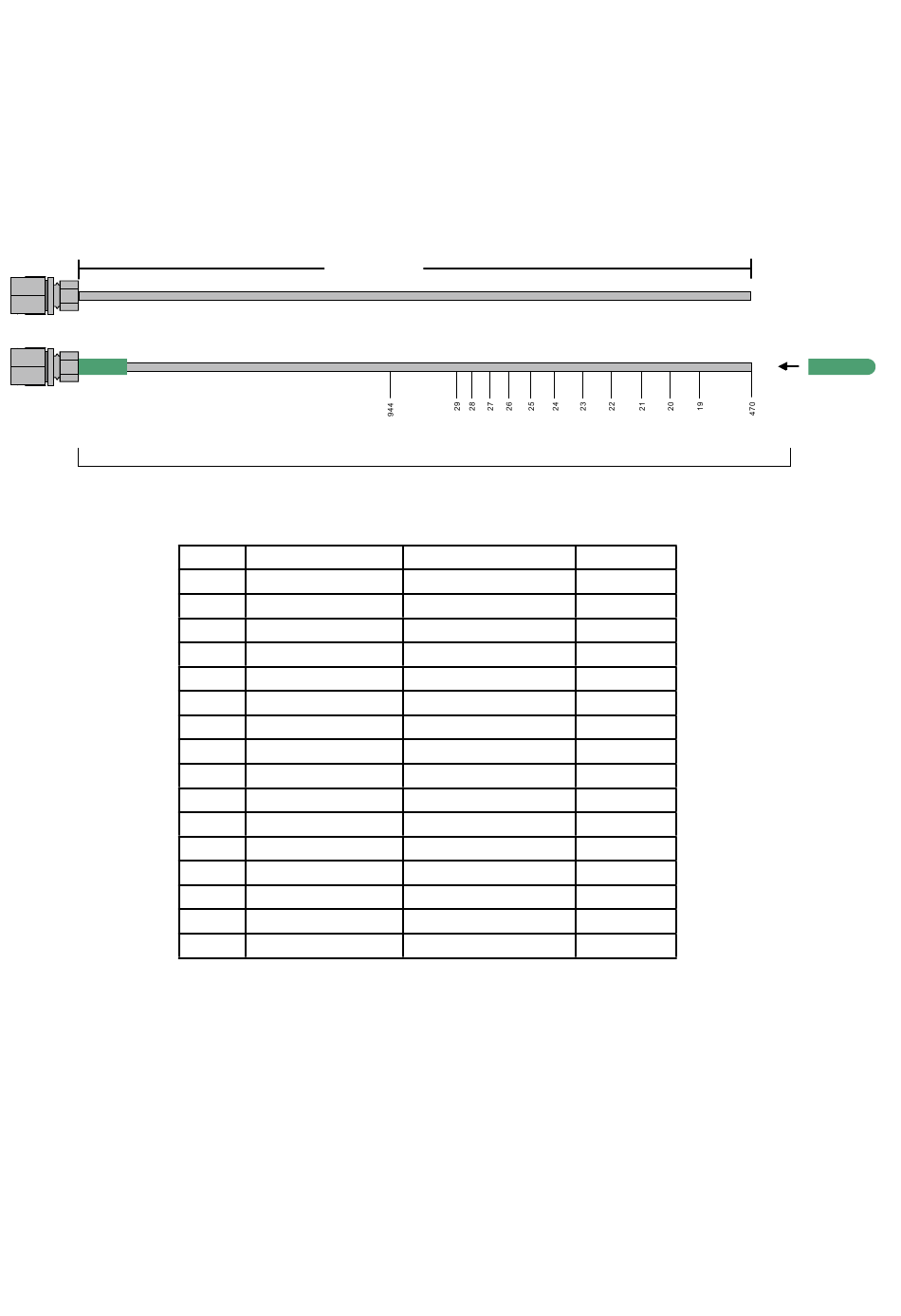

The Lectrosonics AMMKIT provides the parts to make
an antenna with a standard SMA connector for any of
the available frequency blocks. Cut the whip accord-
ing to the lengths in the table below or by laying the
antenna over the template to determine the correct
length. Be sure to check the scale of your printout by
measuring the length of the line below the drawing.
Note: Check the scale of your printout. This line should be 6.00 inches long (152.4 mm).
18
Whip Length
BLOCK
FREQUENCY
RANGE
470
470.100 - 495.600
19
486.400 - 511.900
20
512.000 - 537.500
21
537.600 - 563.100
22
563.200 - 588.700
23
588.800 - 614.300
606
606.000 - 631.500
24
614.400 - 639.900
25
640.000 - 665.500
26
665.600 - 691.100
27
691.200 - 716.700
28
716.800 - 742.300
29
742.400 - 767.900
30
768.000 - 793.500
31
793.600 - 819.100
32
819.200 - 844.700
33
844.800 - 861.900
The frequency range and/or block is marked on the
outside of the transmitter housing.
Unmarked antennas can be identified by laying them
on the template below. Be sure to verify that a print out
is at 100% by checking the length of the line below the
antenna drawing.
CAP/SLEEVE
COLOR
Black w/ Label
Black w/ Label
Black w/ Label
Brown w/ Label
Red w/ Label
Orange w/ Label
(Use Block 24 Ant)
Yellow w/ Label
Green w/ Label
Blue w/ Label
Violet (Pink) w/ Label
Grey w/ Label
White w/ Label
Black-w/Label
Black-w/Label
Black-w/Label
Black-w/Label
ANTENNA
WHIP LENGTH
5.67"
5.23"
4.98"
4.74"
4.48"
4.24"
4.01"
3.81"
3.62"
3.46"
3.31"
3.18"
3.08"
2.99"
2.92"
2.87"
